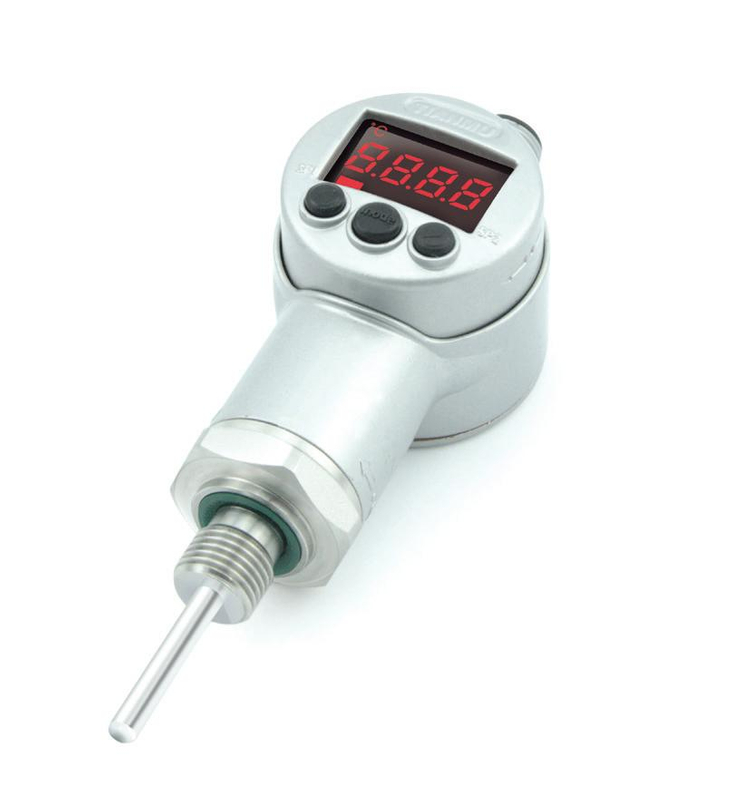

NS-T54
NS
Input data
Measuring range
-25..+125℃
Probe length
18mm (selectable)
max.800
Pressure resistance
600Bar
Mechanical connection
G1/4ADIN3852
Threaded port DIN 3852-G1/4G1/2BDIN 3852
Torque value
20N.m
20N.m
45N.m
Output data
Output signal
Selectable
Type
-1PNP transistor switching output
-2PNP transistor switching outputs
(only in conjunction with electr.conn.M12x1,4 pole)
Switching direction
N/C/C/O function(according to customer specification)
Output load
≤500mA per Switching output
Accuracy
≤±1.5%F.S typ.
≤± 3.0%F.S max.
Repeatability(at25℃)
≤±1.0%F.S max.
Rising switch point and
32ms standard(8..2000ms pre-set to customer spec.)
falling switch point delay
Ambient conditions
Ambient temperature range
-40..+85℃
Storage temperature range
-40..+100℃
Fluid temperature range
-40..+125℃
CE mark
EN 61000-6-1/2/3/4
Vibration resistance to DIN EN
≤25g
6006B-2-6 at 10..500Hz
Shock resistance to
100g/6ms/half sine
DIN EN 60068-2-27
500g/1ms/half sine
Protection class toDIN 40050
IP67
