| Quantity: | |
|---|---|

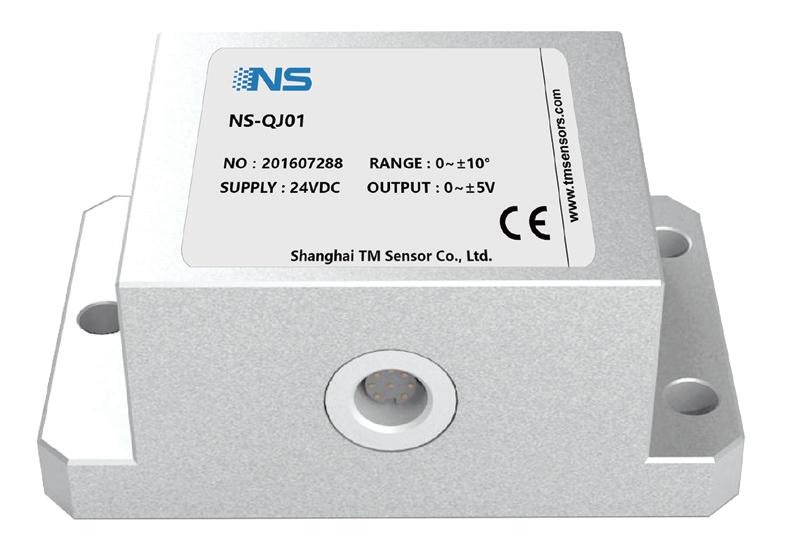

NS-QJ01
NS
| Place of Origin | Shanghai, China | Brand Name | NS | Model Number | NS-QJ01 |
| Type of Sensor | Tilt Sensor | Angular Range | 0~±120° | Output Signal | 0~5V, 0~10V, 4-20mA, RS485 etc. |
| Accuracy | ±0.1%F.S(typ.) | Electrical Connection | Flying lead,M12,Binder 712 | Mechanical Connection | Bolt and Nut |
| Power Supply | 24 Vdc | Operational Mode | single axis | Measuring Medium | Angle of Inclination |
| Material | Aluminum Alloy | Certificate | Obtain RoHs,CE, ISO9001 certification | Lead Time | 2~3 weeks |
Angular range
0~±15°...±30°...±120°(10°increments)
Operating voltage
24VDC(12~32VDC)，3conductor
Resolution
0.001°
Output signal
4~20mA，3conductor
0.5~4.5VDC，3conductor
0~5VDC，3conductor
RS485，5conductor
Comprehensive precision
0.1%F.S,0.25%F.S,0.5%F.S
Operating temperature range
-40~85℃
Storage temperature range
-40~120℃
Temperature drifting
±0.005°/℃
Long-Term Stability
≤±0.1%F.S/ year ( typ.)
Current consumption
≤40mA
Insulation resistance
≥100MΩ(100VDC)
Shock resistance
IEC 60068-2-27(50g,11ms)
Vibration resistance
IEC 60068-2-6(49.1m/s2,5g)
Anti-jamming
IEC 61000-6-2/3/4
Material
Aluminum alloy
IP protection
IP67
IP68
