TMJ12 Mv Ratiometric Output Piezoresistive Anti-Corrosive OEM Pressure Sensor

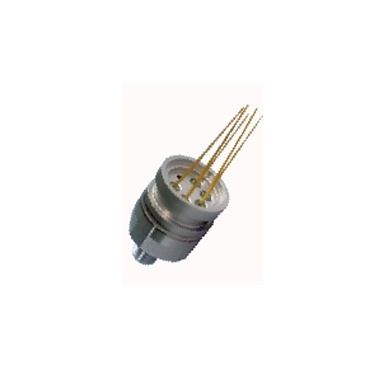

TMJ12 pressure sensor is piezoresistive silicon pressure sensor with isolated construction and precise high low temperaure compensation, build-in high stable silicon chip, stainless steel 316L housing by diameter Ф12.6mm.

Design concept base on wheatstone bridge principle, the measured pressure cause resistance bridge value variation, then it converted to ratiometric mV signal.



Special features of Pressure Sensor

·Wet parts and sealing apply stainless steel welding realize an excellent anti corrosion

·Gauge, Sealed Gauge

·5VDC or Idd=1.5mA excitation

·Output ratiometric mV signal

·PCB potting is optional

·Silicon oil filling
Availability:
Quantity:
  • TMJ12

  • NS

Pressure Sensor electric specification

Power supply: 1.5mA or 5VDC

Electric connection: Kovar pin, or silicon rubber wire (PCB potting availble)

Input impedance: 2kΩ~4kΩ

Output impedance: 4kΩ~6kΩ

Response (10%~90%):<1ms

Insulation resistor: 100MΩ, 250VDC

Overpressure: 2 times FS


Pressure Sensor construction

Diaphragm: stainless steel 316L

Housing: stainless steel 316L

SpecificationsTechnical data

Measuring range

 3       5        10        20       40        60                       MPa
Power supply 5  VDC or Idd=1.5 mA
Bridge resistance3~6                                                                              KΩ
Zero output (type) <±2                                                             (Idd=1.5 mA)
Full scale output40 mV(Min)
Comprehensive accuracy(type)±0.25                                                                         %F.S.
Zero temperature drift(type)±0.02                                                                         %F.S.
Sensitivity temperature drift(type)±0.02                                                                         %F.S.
Operating temperature range (type)-40~+125                                                                       ºC
Storage temperature range (type)-40~+125                                                                       ºC
Fluid temperature range (type)-40~+125                                                                       ºC
Insulation resistance≥100(250VDC)
Vibration proof

20...2000                                                                        Hz

amax=10                                                                         g

Response time≤1(10~90%F.S.)                                                        ms
MaterialStainless steel 316L
