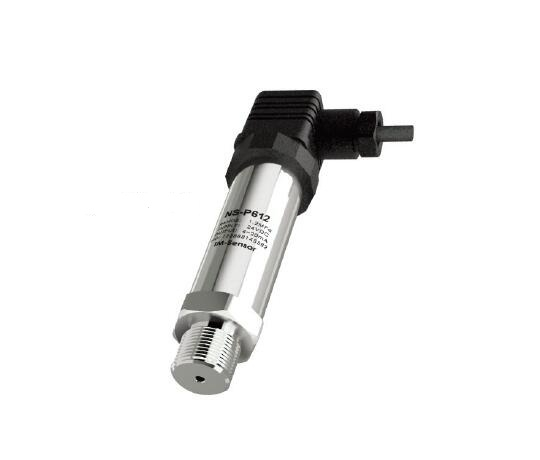

P61 pressure switch made by TM’s own sensor sensitive element. Pressure switch can be transferred liquid or gas pressure into the standard switching output signal.
·Wetted parts apply stainless steel ensure excellent corrosion resitance
·24VDC excitation
·two setting points of switching output
·Build-in silicon oil filling sensor core
Power supply: 24VDC
Type of switching output: PNP transistor output
Switching output current: 1.5A max.
Insulation resistance: 100MΩ, 100VDC
Overpressure: 2 times FS
Diaphragm: stainless steel 316L
Housing: stainless steel
Specifications | Technical data |
Measuring range | 0~0.8 1.0 1.6 3.0 10 20 40 50 60 80 90 100MPa |
Overload pressure | 200%F.S. 150%F.S. 150%F.S. |
Burst pressure | 500%F.S. 300%F.S. 200%F.S. |
Operational mode | Gauge, Absolute |
Measuring media | gas, liquid compatible with stainless steel |
Output signal | on/off output Max. |
Operation voltage | 24Vdc(12~32VDC) |
Load current | 1.5A per output |
Accuracy | ±0.5%F.S(typical) |
Long-term drift(type) | <±0.2(type) %F.S./Year |
Compenstated temperature range (type) | -20~+80 ℃ |
Operating temperature range (type) | -30~+85 ℃ |
Storage temperature range (type) | -40~+120 ℃ |
Fluid temperature range (type) | -30~+120 ℃ |
Insulation resistance | ≥100MΩ(100VDC) |
Vibration resistance | IEC 60068-2-6(5...2000Hz, 20g) |
Shock resistance | IEC 60068-2-27(50g, 11ms) |
EMC proof | IEC 61000-6-2/3/4 |
Mechanical connection | G1/2 A; G1/4 A, 1/4-18NPT, M20*1.5 |
IP protection | IP65 IP 67 |
