Intelligent Press-Fit Systemtorque Monitoring Xy Process Monitor Process Monitoring System

Applications of Process Monitor

Construction machinery

-Building machinery

-Mining machinery

·Pneumatic system

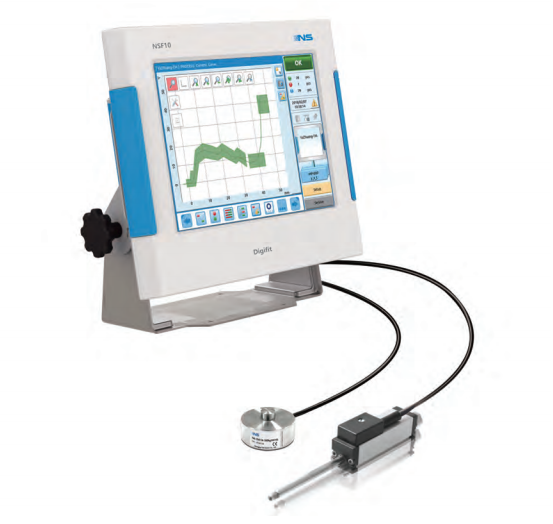

Introduction of Process Monitor

Whatever they are used for vehicle chassis, transmission and powertrain assembly or the monitor and press-fit of wheel

carrier,wheel bearing , NSF10 is good at high-precision control of all movements during assembly and product inspec-

tion, More the better, it can be options to switch between the different measuring programs of the NC joining systems

and easy switch between measuring programs, make it possible to use the same machine for manufacturing a wide

variety of components. Finally, the systems provide for more efficiency utilization and economical operation over the

long-term period.

Monitoring task

Ball bearings assembly

Spring testing Processes

Gear assembly

Button switch fatigue test

Riveting

Motion control

NSF10 uses defined curve compare with evaluation objects (EOs) to analyze qualityrelevant

sections of the measured curve result which captured by the measuring system, NSF10 can

generates an “ok"or “Not ok(NOK) according to the result. The while , it can analyze lots

collected data to generate CPK value, in order to give suggest and evaluate for the line modifi-

cation.

Advantage

Simple integration into existing system and processes

Extensive diagnostic ability, find causes of NOK quickly

Friendly interface screen

Standard interfaces

Powerful evaluate capabilities

Standard signal and data formats
