Draw Wire Displacement Sensor
You are here: Home » Products » Displacement Sensor » Draw Wire Displacement Sensor
Share to:

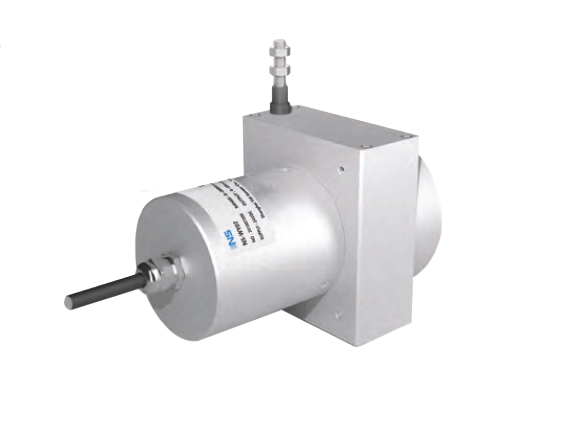

Draw Wire Displacement Sensor

Linear transducer with wire potentiometer technology, bases on principle of potentiometer linear variation due to positon variation
High resolution smooth movement, and good anti-interference
Wide Stroke Length 8000mm

Quantity:
  • WY07
  • NS
  • NS-WY07-8000 mm

Applications of Displacement Sensor

·Aviation

·Automatic production line

·Industrial machinery

·Bridge, tunnel and construction machinery


Introduction of Displacement Sensor

Linear transducer with wire potentiometer technology, bases on principle of potentiometer linear variation due to positon variation

Stroke length 1500~8000 mm

Aluminium alloy housing, strong and durable structure


Special features of Displacement Sensor

·High resolution smooth movement, and good anti-interference

·Aluminium alloy housing, strong and durable structure

·Build-in imported high quality material

·Analogue outputs: 0~5V, 0~10V, 4~20mA, potentiometer, encoder


Displacement Sensor electric specification

Power supply: 24VDC(12~32VDC)

Various optional output signal: 4~20mA, 0~5V, 0~10V, encoder etc

Insulation resistance: 100MΩ(50VDC)


Displacement Sensor construction

Aluminium alloy


SpecificationsTechnical data

Stroke length

1500         2000          4000         8000      mm
Comprehensive accuracy±0.05 %F.S.           ±0.1 %F.S.             ±0.25 %F.S.
Resolution0.03mm
Output wire2 wires/ 3wires
Output signal4~20mA, 0~5V, 0~10V, encoder, resistance etc
Operating voltage12~32Vdc
Operating temperature-30~85℃
Vibration proof10g(5... 2000 Hz)
Strike proof 50g(11ms)
Displacement speed≤0.7m/s
Insulation resistance≥100MΩ(50Vdc)
Electrical connection
M12×1 4 Pin male or Flying lead
Material
Aluminium alloy
IP protectionIP54


Displacement Sensor dimensions:


wy07-dimension

wy07-dimension02

Displacement Sensor order guide:

wy07-order
