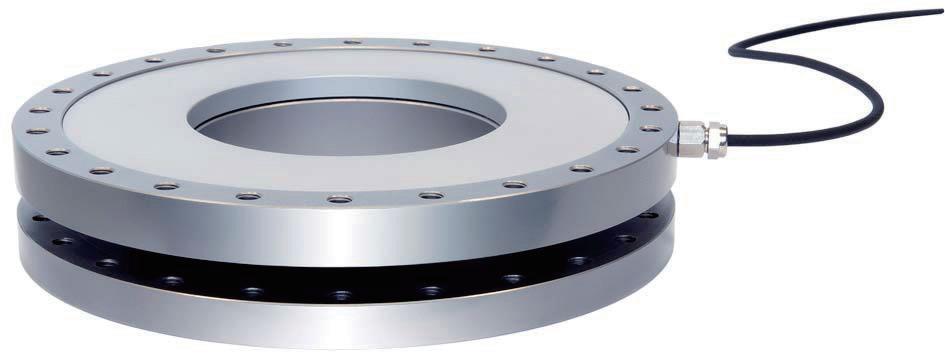

Compression Force Gauge Column Sensor Hollow Force Sensor

Compression And Tension Force Sensor

provide standardized analog, unreinforced strain gauge bridge output signals in mV/V. As an option, many of our tension and compression force sensors can be supplied with an extended temperature range of -20°C up to 60°C.

Typical applications for these sensor types are for example, material testing machines, rope or elastic force measurement, examination of operating forces, determination of force in belt tensioners or bowden controls, industrial process monitoring at press-in, riveting, stamping, drawing operations.

Availability:

Quantity:



Inquire

Model:
NS-WL6
Brand:
NS

Product Description

Performance Features:

*Measuring of compression and tension force

*Stainless steel

*Level of protection IP60

*Long-term stability

*Simple handling and assembly

*Special versions on request

Application:

*Equipment engineering

*Automotive industry

*Measuring and control devices

*Fully automated maching centres

*Tool engineering

*Specical mechanical engineering

In industries where force measurement is mission-critical, **Tension & Compression Load Cells** are the backbone of reliability. Whether you're optimizing automotive testing, advancing robotics, or monitoring structural health, our sensors deliver unmatched precision (±0.1% FS) and ruggedness (IP67/IP69K ratings). Discover how our ISO 9001-certified solutions redefine measurement integrity.

Specivfications	U n i t	Technique data
Rated capacity	Kg	200,300,500,1000..10000
Output sensitivity	mV/V	1.0±10%
Non-linearity	%F.S	≤±0.3
Hystersis	%F.S	≤±0.1
Repeatability	%F.S	≤±0.05
Creep	%F.S/30min	±0.05
Temperature sensitivity drift	%F.S/10ºC	±0.05
Zero point temperature drift	%F.S/10ºC	±0.05
Zero output	%F.S	<±1
nput resistance	Ω	750±10
Output resistance	Ω	700±3
Insulation resistance	MQ	≥5000
Operating temperature	ºC	-30~80
Safe overload	%F.S	150
Ultimate overload	%F.S	200
Recommended excitation voltage	VDC	5~12
Maximum excitation voltage	VDC	15
material	Stainless steel
IP protection	IP65
Note	NS-A002/A003,4~20mA,0~5V, 0~10V,0~±5V,0~±10V,Profibus,Modbus,CANOpen
