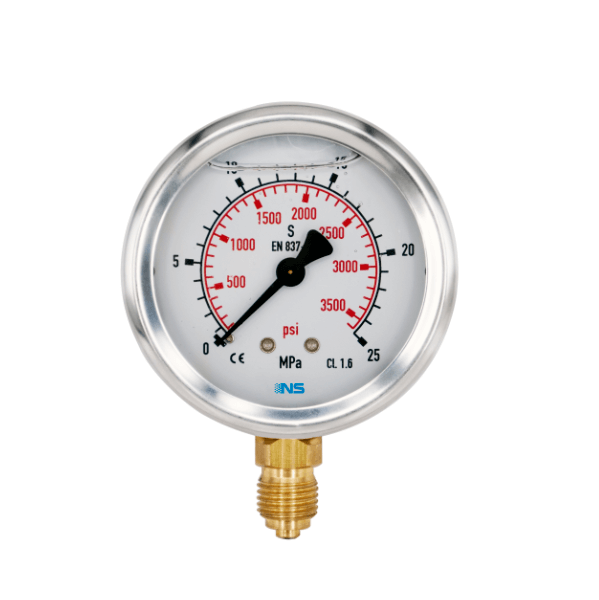

Bourdon Tube Oil Fuel Gas Water Pressure Gauge

Reliable, stable and cost effective
Design compliant with EN 837-1
Nominal size in mm: 40, 50, 63, 80, 100 and 160
Scale ranges: 0... 40 MPa

Availability:

Quantity:


Inquire

Model:
600
Brand:
NS
Code:
NS-600-40MPa

Applications of Pressure gauge

·Gas, liquid pressure measurement

·Industrial process control

·Level measurement

·Gas, liquid pressure measurement

·Pressure checking meter

·Pressure calibrator

·Liquid pressure system and switch

·Cooling equipment and air conditioning system

·Aviation and navigation inspection

Introduction of Pressure Gauge

Pressure gauge shows the pressure through the elastic deformation of the sensitive elements (bourdon tube) in the gauge, and then conversion mechanism in the gauge transfers the elastic deformation to the pointer. Pointer movement shows the pressure value.

Special Features of Pressure Gauge

·Design is compliant with EN 837-1

·Nominal size in mm: 40, 50, 63, 80, 100 and 160 (scale ranges: 0... 40 MPa)

·Stainless steel case with liquid filling

·Robust design

·Vibration and shock resistant

Bourdon Tube Pressure Gauge Oil Pressure Gauge Fuel Pressure Gauge Gas Pressure Gauge Water Pressure Gauge Gas Water Pressure Gauge Fuel Gas Water Pressure Gauge Oil Fuel Gas Water Pressure Gauge Bourdon Tube Oil Pressure Gauge

Specifications	Technical data
Design	EN 837-1
Nominal size	40 50 63 80 100 160 mm
Accuracy class	2.5
Scale ranges	40 MPa
Pressure limitation	Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value
Permissible temperature	Ambient: -20~+60℃ Medium:+60℃ maximum
Temperature effect	When the temperature of the measuring sysyem deviates from the reference temperature (+20℃): max.±0.4%/10K of the span
Process connection	Copper alloy lower mount(LM) or centre back mount(CBM) See data sheet
Pressure element	Copper alloy, C-type or helical type
Movement	Copper alloy
Dial	Aluminium, white, black lettering, with pointer stop pin
Pointer	Plastic, black
Window	Plastic, crystal-clear
Case	Natural finish stainless steel, with blow-out device at case circumference, 12 o' clock Scale ranges ≤0...16 bar with compensating valve to vent case
Bezel ring	Crimp ring, glossy finish stainless steel, triangular bezel
Filling liquid	Glycerine

Specifications	Technical data
Design	EN 837-1
Nominal size	40 50 63 80 100 160 mm
Accuracy class	2.5
Scale ranges	40 MPa
Pressure limitation	Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value
Permissible temperature	Ambient: -20~+60℃ Medium:+60℃ maximum
Temperature effect	When the temperature of the measuring sysyem deviates from the reference temperature (+20℃): max.±0.4%/10K of the span
Process connection	Copper alloy lower mount(LM) or centre back mount(CBM) See data sheet
Pressure element	Copper alloy, C-type or helical type
Movement	Copper alloy
Dial	Aluminium, white, black lettering, with pointer stop pin
Pointer	Plastic, black
Window	Plastic, crystal-clear
Case	Natural finish stainless steel, with blow-out device at case circumference, 12 o' clock Scale ranges ≤0...16 bar with compensating valve to vent case
Bezel ring	Crimp ring, glossy finish stainless steel, triangular bezel
Filling liquid	Glycerine

Bourdon Tube Oil Fuel Gas Water Pressure Gauge
