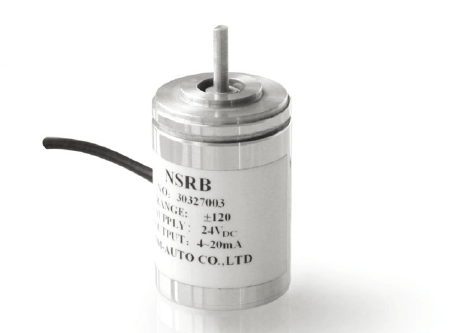

Angular Displacement Sensor

Capacity range 0~± 175degree
High accuracy, stable and reliable for long time
Wide measuring range
Compact size design, easy for installation
Availability:
Quantity:
  • RB
  • NS
  • NS-RB-±175°

Applications of angular displacement sensor

·Mining machinery

·Construction machinery

·CNC machinery



Introduction of angular displacement sensor

RB model Displacement sensor is ideal for use in angular measurement which range from 0 to ±175°(rotational angular displacement), thus covering a very broad range, the product is widely used for angular control system.


Special features of angular displacement sensor

·Max range ± 175°

·High accuracy, stable and reliable for long time

·Wide measuring range

·Compact size design, easy for installation

Angular displacement sensor electric specification

Power supply: 12~32VDC

Various optional output signal: 4~20mA, 0.5~4.5V, 0~5V etc)

Insulation resistance: ≥100MΩ(100VDC)


Angular displacement sensor construction

Stainless steel


SpecificationsTechnical data

Angular range

±15°      ±60°     ±175°(10° increments)
Operating voltage24VDC(12~32VDC)
Resolution0.001°
Output signal4~20mA, 0~5V, 0~10V, 0~±5V, 0~±10V,
Comprehensive precision±0.25%F.S.      ±0.5%F.S.
Operating temperature range -40~85℃
Temperature drift±0.005°/℃
Long-term stability≤±0.1%F.S./ year (typ.)
Insulation resistance≥100MΩ(100VDC)
Temperature coefficient±0.05%F.S./℃
Vibration resistance20g(5...2000Hz)
MaterialStainless Steel
IP protectionIP54


Angular displacement sensor dimensions:


NS-RB-dimension



Angular displacement sensor  order guide:


NS-RB-ORDER
