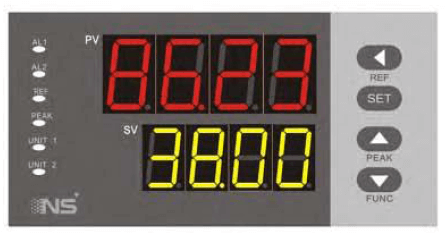

4 Digit Dual Display Digital Controller Indicator

Input: 0~5V, 0~10V, 0~±5V, 4~20mA, 0~5KΩ, 0~10KΩ, mV
Display scope: -1999~9999
Accuracy: ±0.25%F.S.
1~2 relay output (Optional)
Analog output 0~5V or 4~20mA(Optional)
Serial communication: RS232 or RS485 (Optional)

Quantity:
  • YB04C-B1
  • NS
  • NS-YB04C-B1

Applications of Indicator

·Load cell

·Displacement sensor

·Alarm, display and control system




Introduction of Indicator

Access in 0~5V, 0~10V, 0~±5V, 4~20mA, 0~5KΩ, 0~10KΩ, mV signal, show in the indicator with function of alarm setting, RS232 and RS485 communication interface. PV, SV display function, PV display: actual measuring value, SV display: setting point or peak value.


Special features of Indicator

·Input: 0~5V, 0~10V, 0~±5V, 4~20mA, 0~5KΩ, 0~10KΩ, mV signal

·1~2 relay output (Optional)

·Display scope: -1999~9999

·Accuracy: ±0.25%F.S.

·Dual display, setting point or peak value display

·Analog output 0~5V or 4~20mA(Optional)

·Serial communication:  RS232 or RS485 (Optional)











Indicator electric specification

Power supply: 24VDC or AC220V(85~264VAC)

Input: 0~5V, 0~10V, 0~±5V, 4~20mA, 0~5KΩ, 0~10KΩ, mV signal

Relay Output:  1~2 relays output




SpecificationsTechnical data

Input

0~5V, 0~10V, 0~±5V, 4~20mA, 0~5KΩ, 0~10KΩ, mV
Channel1  Channel
Display scope-1999~9999
Accuracy 0.25%
Output relay

2 relays output (B type) , 4 relays output (A type)

Alarm modeHigh limit, low limit, in-band, out-band alarm
Serial communicationRS232 or RS485 (Optional function)
Power SupplyAC220V(AC90~265V) or DC24V±25%
Dimension96×48×135mm


Indicator dimensions:


indicator-dimension

Indicator order guide:

NS-YB04C-B-single display-order
