NS-9216
Small size with customizable range
High-precision 16-channel pressure measurement

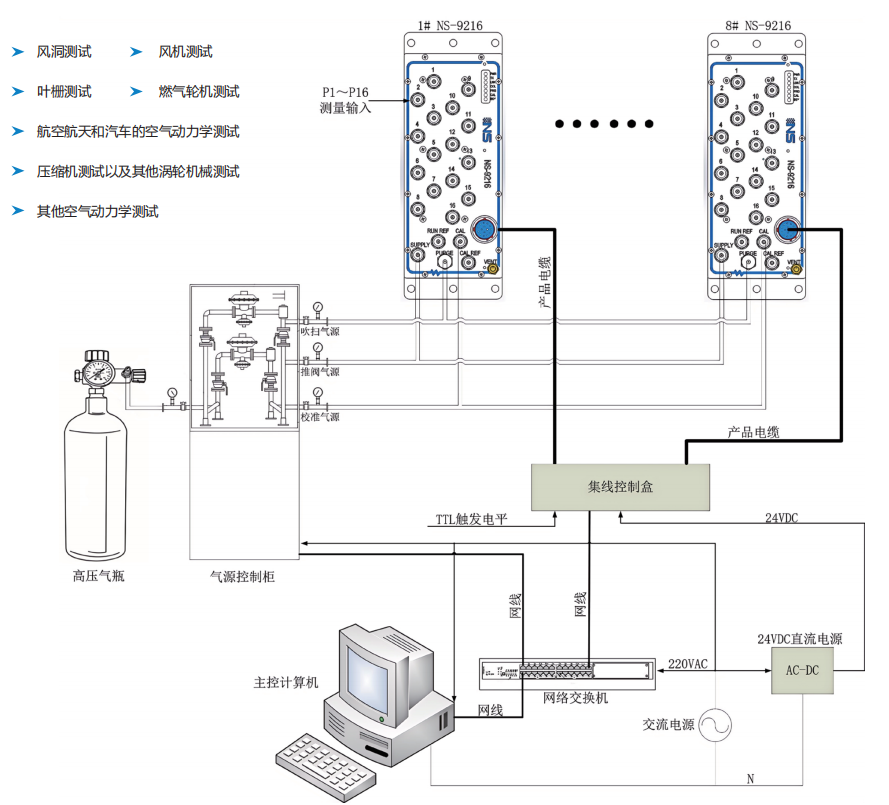

Supports networking multiple devices to form a distributed data acquisition system
provides online zeroing, full-scale calibration, multi-point calibration, and other functions
Built-in solenoid valve, provideOnline Purging, Leak Detection Function
Supports combined simultaneous measurement of 64, 128, or 256 channels with the same or different ranges
| Specifications | Technical Data | |||||||||
| Ranges | 1...2.5...5...10...15...30...100...250...500...750...850...1100psi | |||||||||
| Overload pressures | 300%F.S@（＜15psi）、200%F.S@（15-100psi）、150%F.S@（＞100psi） | |||||||||
| Burst pressures | 300%F.S@（＜15psi）、200%F.S@（15-100psi）、150%F.S@（＞100psi） | |||||||||
| Number of channels | 16 | |||||||||
| Sampling frequency | not less than500Hz(time/channel/second) | |||||||||
| Service voltage | （18~36）VDC/≯0.2A | |||||||||
| Communication protocol | adaptive10/100MEthernet, useTCP/IPandUDP/IPprotocol | |||||||||
| Accuracy of measurement | 0.1%FS、0.05%FS | |||||||||
| Resolution | 24bits | |||||||||
| Trigger function | software/hardware trigger | |||||||||
| Size | 241mm×89mm×90mm | |||||||||
| Weight | ≯3kg | |||||||||
| Vibration shock resistance | 30g | |||||||||
| Operating temperature | -40～85 ℃ | |||||||||
| Colour | Natural Anodized Metal | |||||||||
| Material | Aerospace Aluminum Alloy | |||||||||
| Waterproof | IP68 | |||||||||
