| Specifications | Technical Data | |||||||||
| Measuring ranges | 0~0.8...1.0...1.6...3.0...10...20...40...50...60MPa | |||||||||
| Overload pressures | 200%F.S 150%F.S | |||||||||
| Burst pressures | 500%F.S 200%F.S | |||||||||
| Operational Mode | Gauge Pressure, Absolute Pressure | |||||||||
| Measuring Media | Gases/liquids non-corrosive to stainless steel 304 and 316L | |||||||||

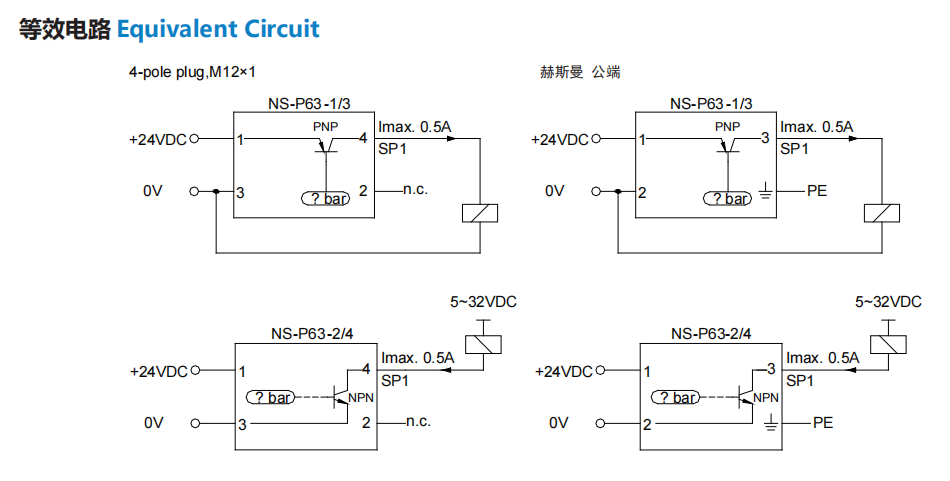

| Output signal | PNP or NPN | |||||||||
| Operating voltage | 24VDC(12~32VDC) | |||||||||
| Load current | 0.5A | |||||||||
| Accuracy | ±0. 5%F. S(typ. ) ±1. 0%F. S(maximum value) | |||||||||
| Long-term drift | ≤±0. 2%FS/-(typ. ) | |||||||||
| Operating temperature range | -30~+85℃ | |||||||||
| Fluid temperature range | -40~+120℃ | |||||||||
| Leakage current | ≤1mA | |||||||||
| Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| EMC proof | IEC 61000-6-2/3/4 | |||||||||

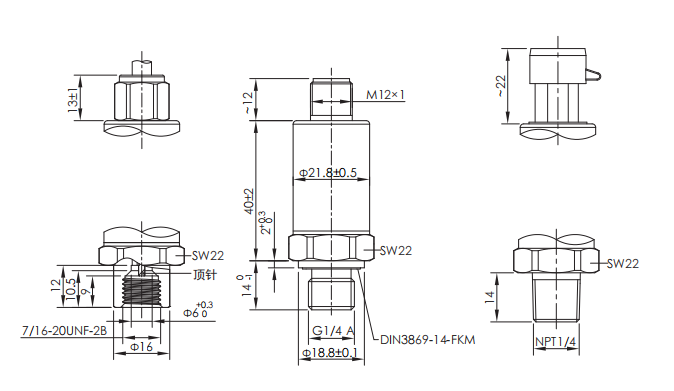

| Mechanical connection | M5×0.8 | |||||||||
| Material | 304 | |||||||||

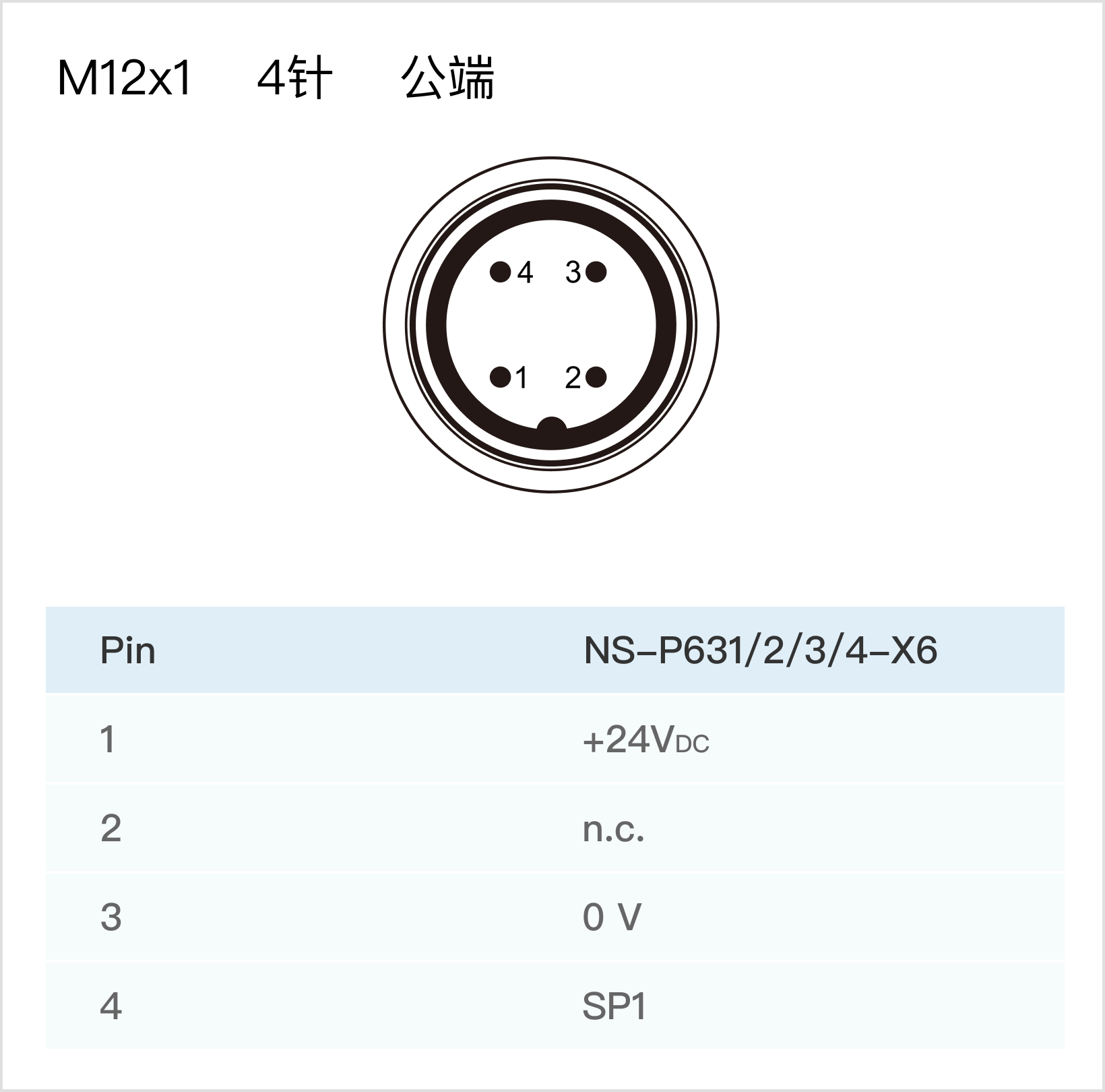

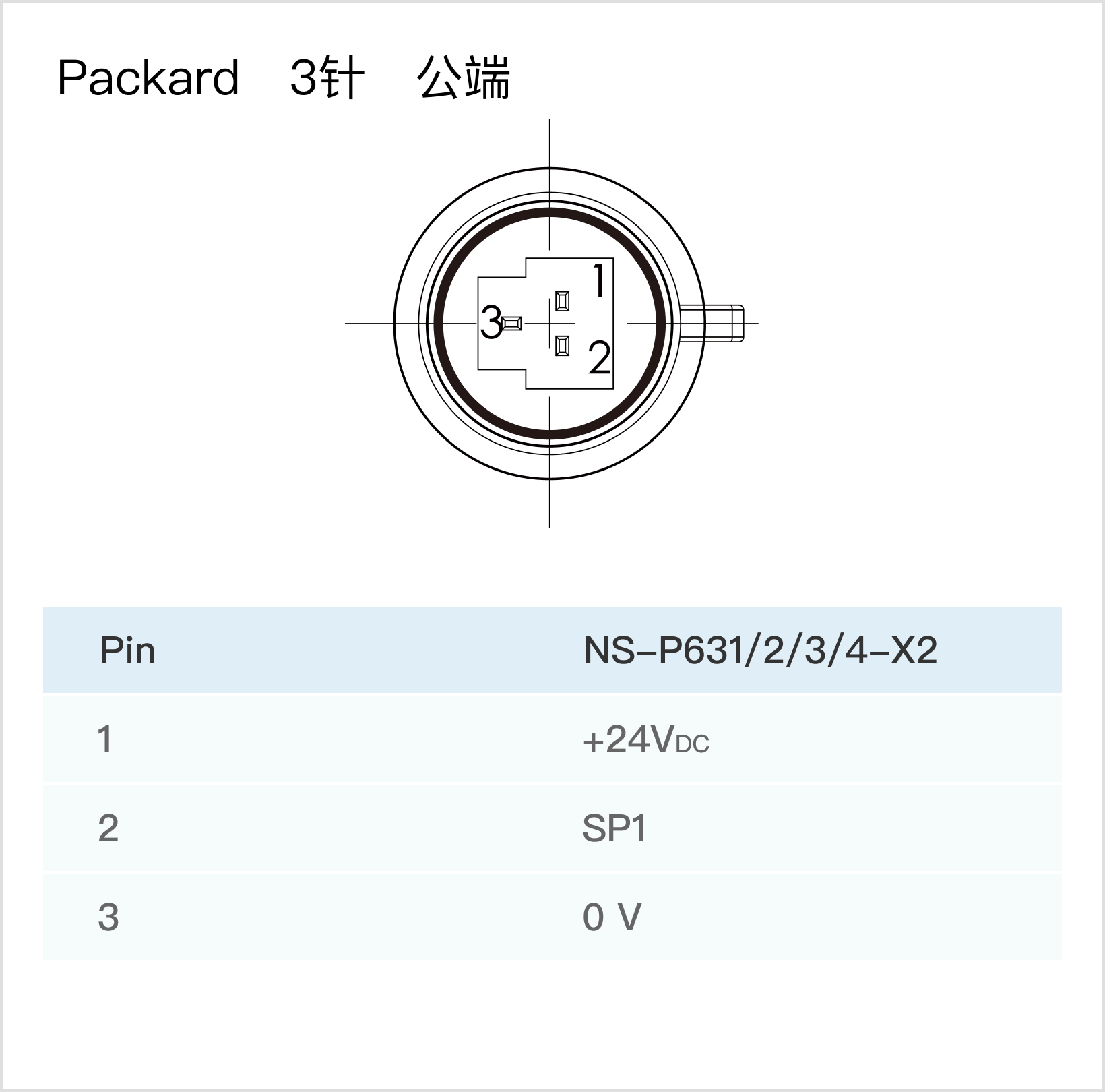

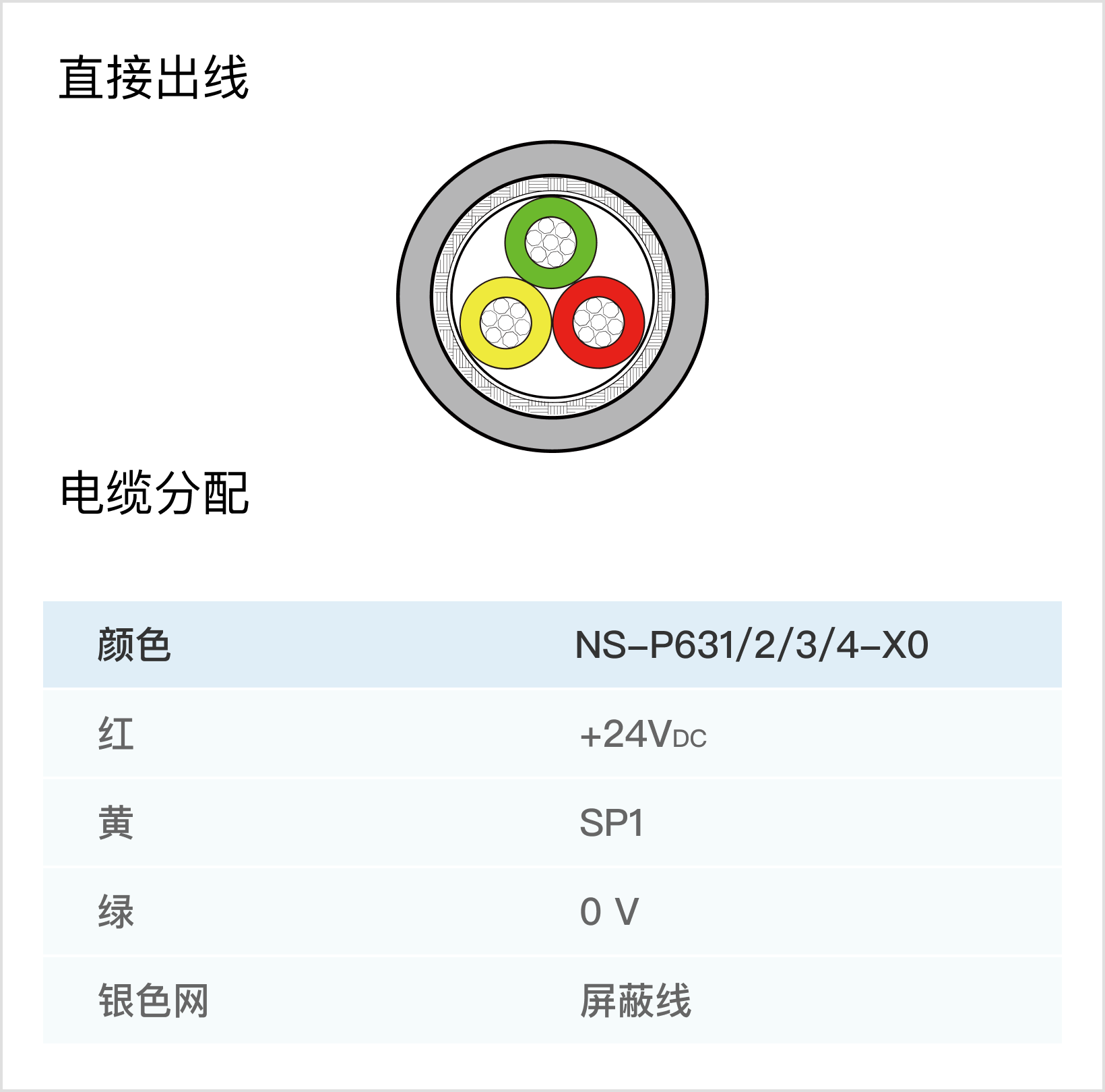

| IP protection | IP65(Packardconnector) IP67(M12×1 4pinconnectorordirect cable) | |||||||||
