| Specifications | Technical Data | |||||||||
| Measuring ranges | 0~100kPa…1MPa…4MPa | |||||||||
| Overload pressures | 200%F.S | |||||||||
| Burst pressures | 500%F.S | |||||||||
| Measuring Media | Gases/liquids non-corrosive to stainless steel 304 and 316L | |||||||||
| Output signal | 0.5~4.5V 0~5V 0~10V 4~20mA | |||||||||
| Operating voltage | 24VDC(16~32VDC) | |||||||||
| Accuracy | ±0. 2%F. S/-(typ. ) | |||||||||
| Operating temperature range | -30~+80℃ | |||||||||
| Current consumption | ≤10mA | |||||||||
| Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| EMC proof | IEC 61000-6-2/3/4 | |||||||||
| Material | Stainless Steel | |||||||||

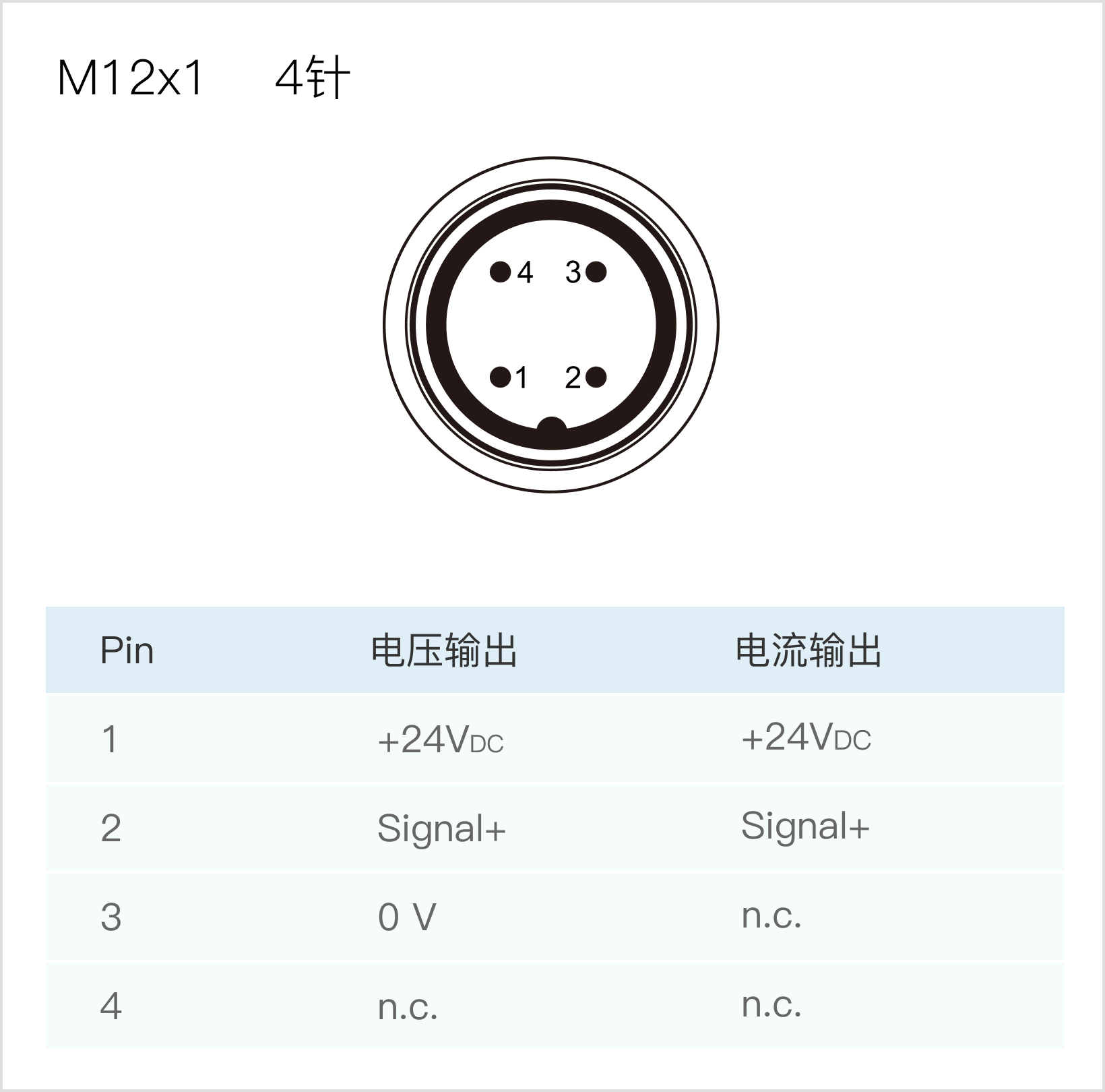

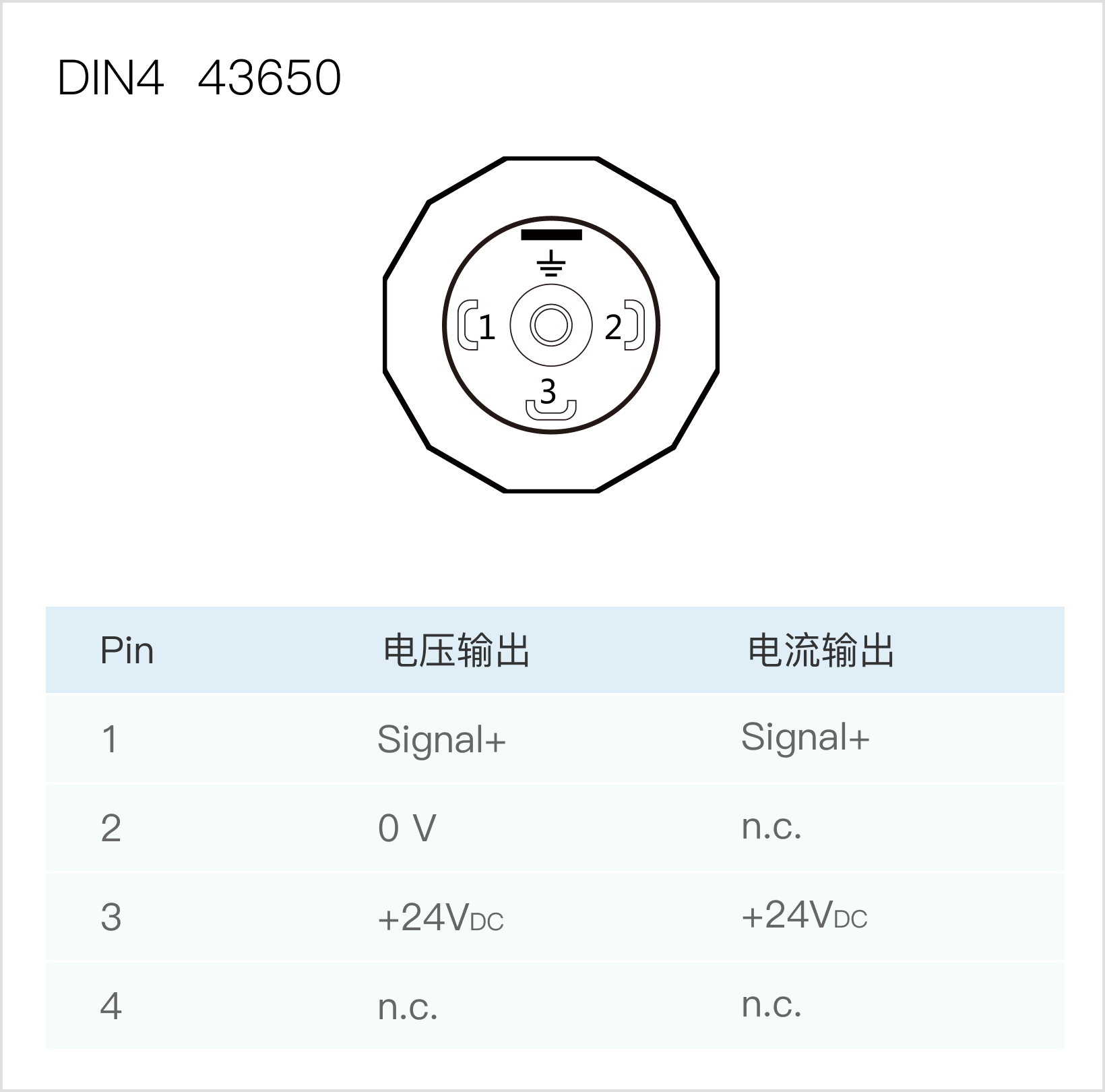

| IP protection | IP67(M12×1)/IP65(DIN 43650) | |||||||||
