| Specifications | Technical Data | |||||||||
| Measuring ranges | -100kPa...0~1.0…1.6…3.0…10…20… 40…60…70… 80…90...100MPa | |||||||||
| Overload pressures | 200%F.S 150%F.S 150%F.S | |||||||||
| Burst pressures | 300%F.S 300%F.S 200%F.S | |||||||||
| Operational Mode | Gauge Pressure, Absolute Pressure, Negative Pressure | |||||||||
| Measuring Media | Gases/liquids non-corrosive to stainless steel 304 and 316L | |||||||||
| Output signal | CANOpen Modbus Profibus RS485 | |||||||||
| Operating voltage | 24VDC | |||||||||
| Accuracy | ±0.1%F.S ±0.25%F.S ±0.05%F.S | |||||||||
| Long-term drift | ≤±0. 1%F. S/- | |||||||||
| Compensated temperature range | -20~+85℃ | |||||||||
| Operating temperature range | -40~+100℃ | |||||||||
| Current consumption | ≤15mA | |||||||||
| Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 10g) | |||||||||
| Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| EMC proof | IEC 61000-6-2/3/4 | |||||||||
| Material | Stainless Steel | |||||||||

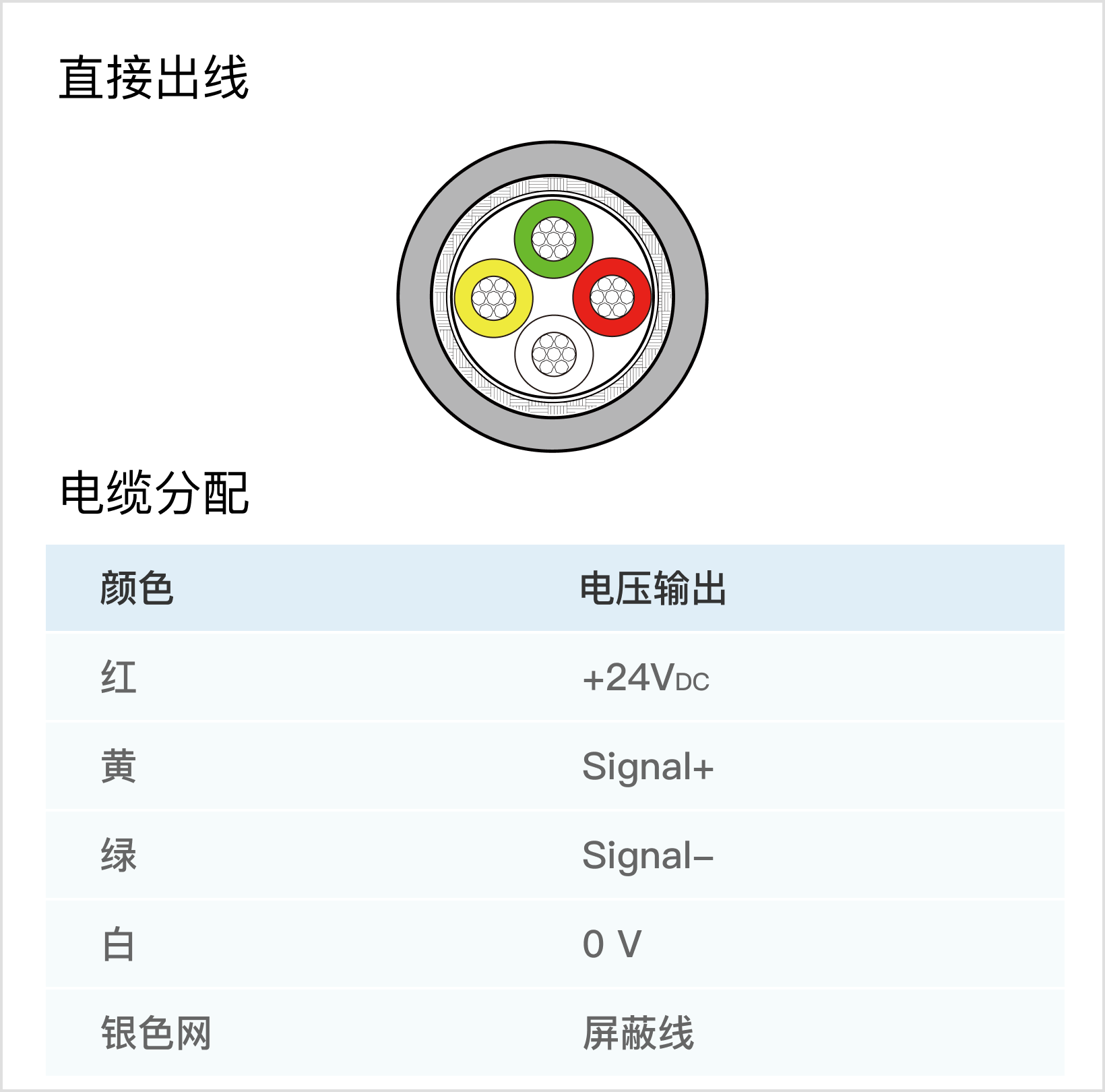

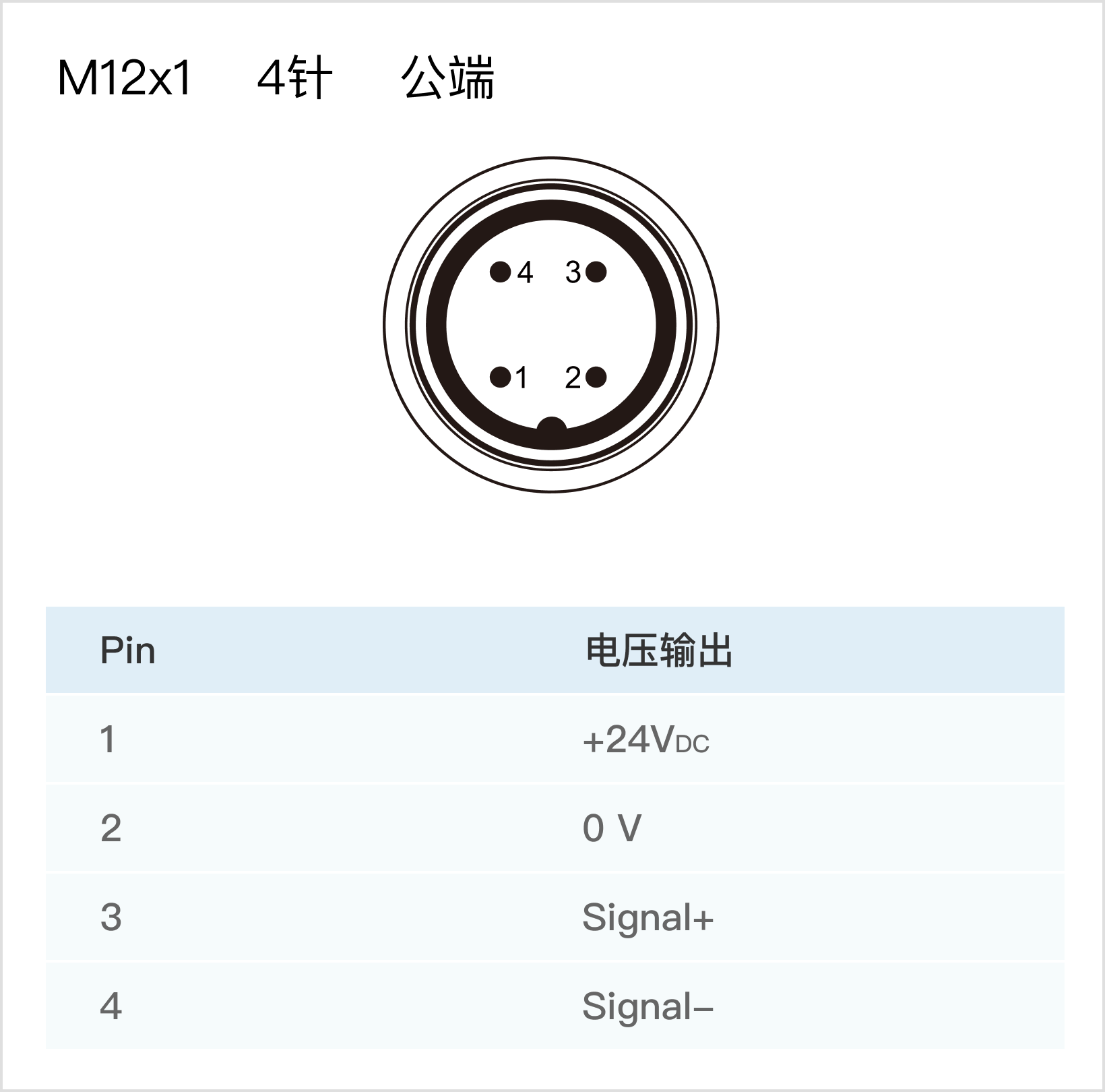

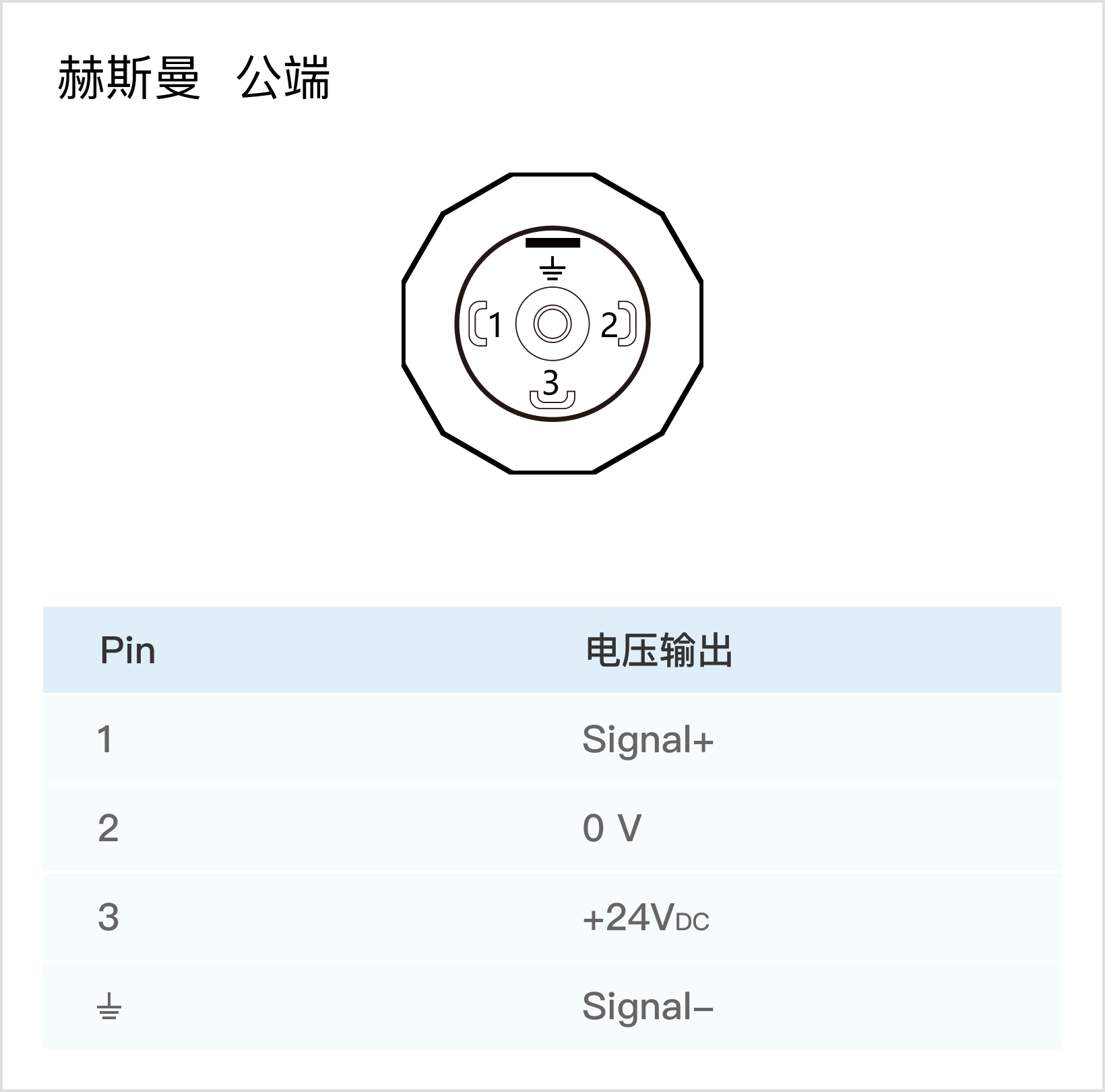

| Ip protection | IP65 (Hirschmannconnector) IP67 (M12×1connectorordirect cable) | |||||||||
