| Specifications | Technical Data | |||||||||
| Input data | ||||||||||
| Measuringrange | -50..+150℃ | |||||||||
| Probelength | 18mm(Optional) maximum800mm | |||||||||
| Torquevalue | 20N.m 20N.m 45N.m | |||||||||
| Output data | ||||||||||
| Output signal | 4~20mA | |||||||||
| Type | -1PNP transistorSwitch Output -2PNP transistorSwitch Output (Electrical Connectiononly applicableM12×1, 4 pin) | |||||||||
| Switching direction | N/C/C/Opowerfunction (canaccording tocustomerrequires customization) | |||||||||
| Accuracy | ≤±0. 5%F. S typical value ≤±1. 5%F. S maximum value | |||||||||
| Ambient conditions | ||||||||||
| Ambient temperature range | -40..+85℃ | |||||||||
| Storage temperature range | -40..+100℃ | |||||||||
| Fluid temperature range | -50..+150℃ | |||||||||
| Protection class to DIN 40050 | IP65 | |||||||||
| Other data | ||||||||||

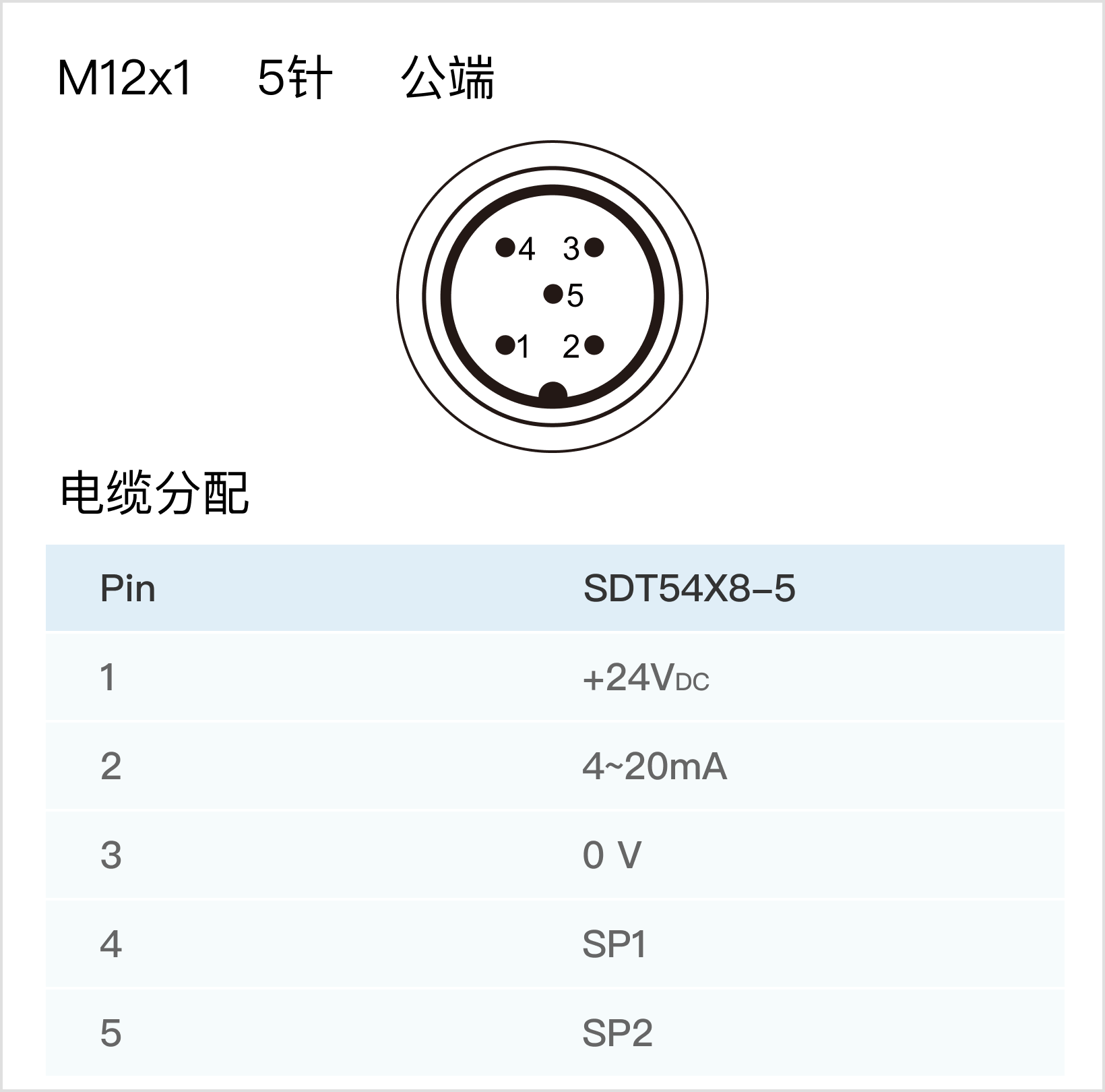

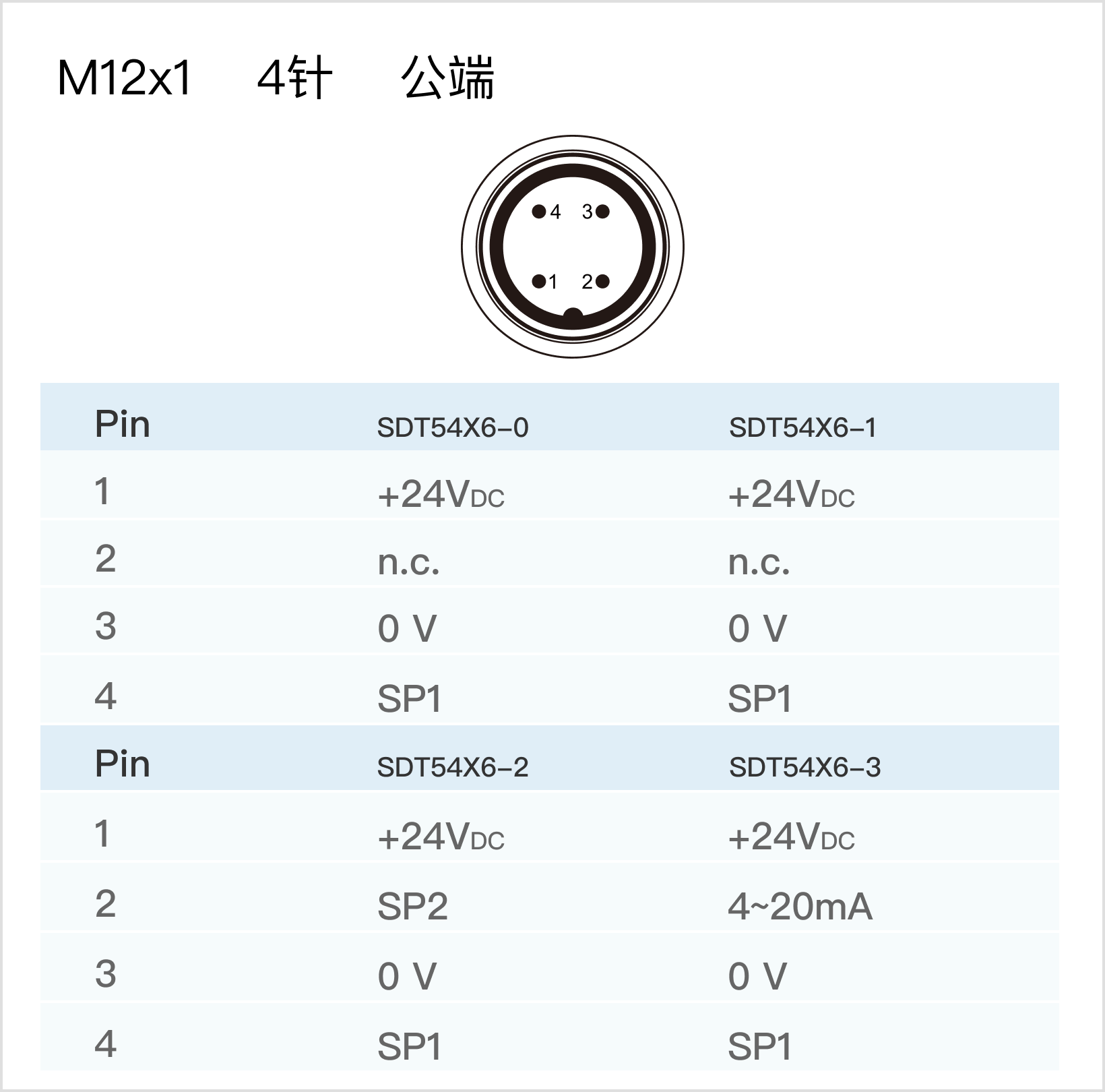

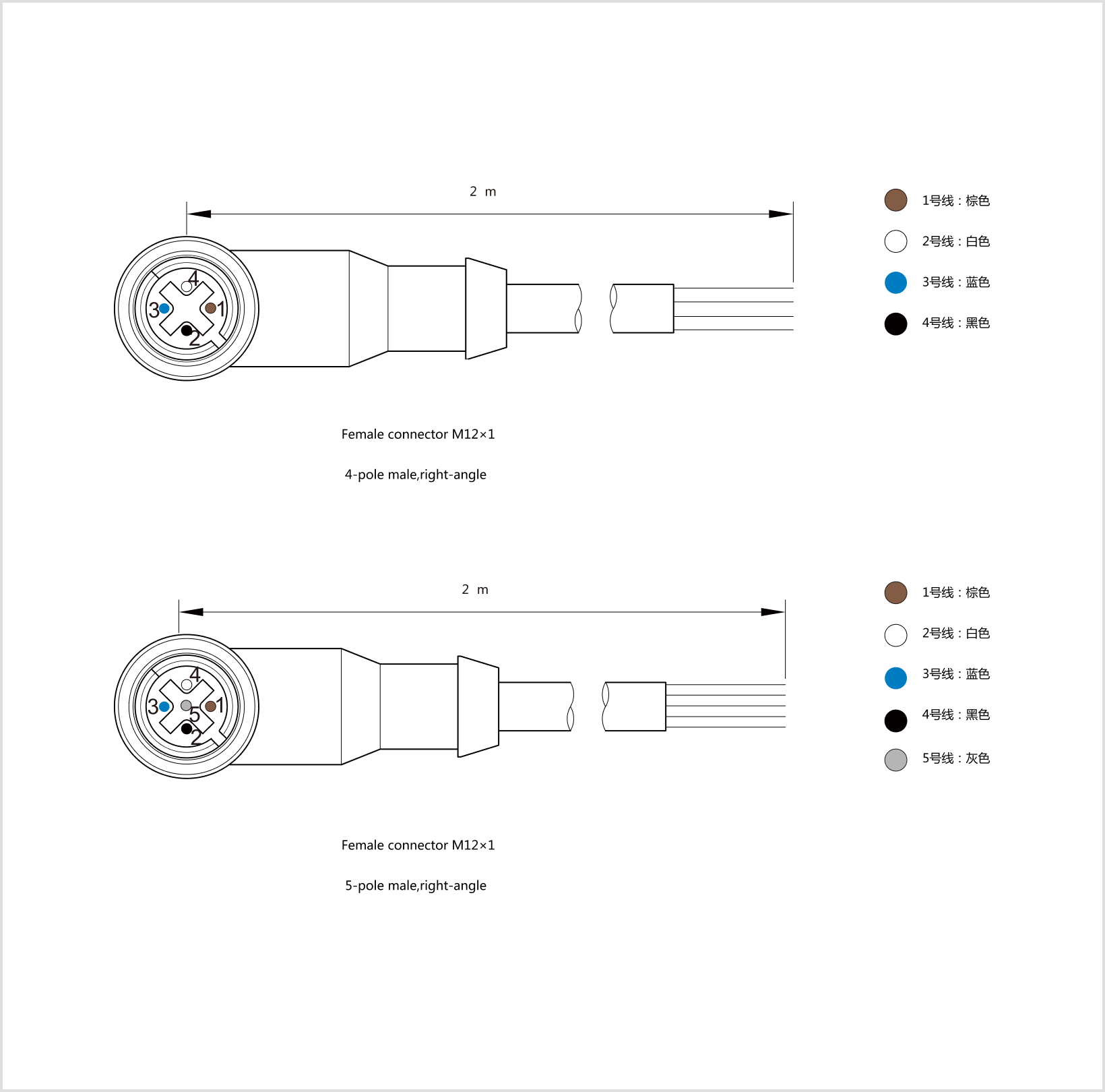

| Electrical connection | M12×1 4 pin male end M12×1 5 pin male end | |||||||||
| Supply voltage | 24VDC±4VDC | |||||||||
