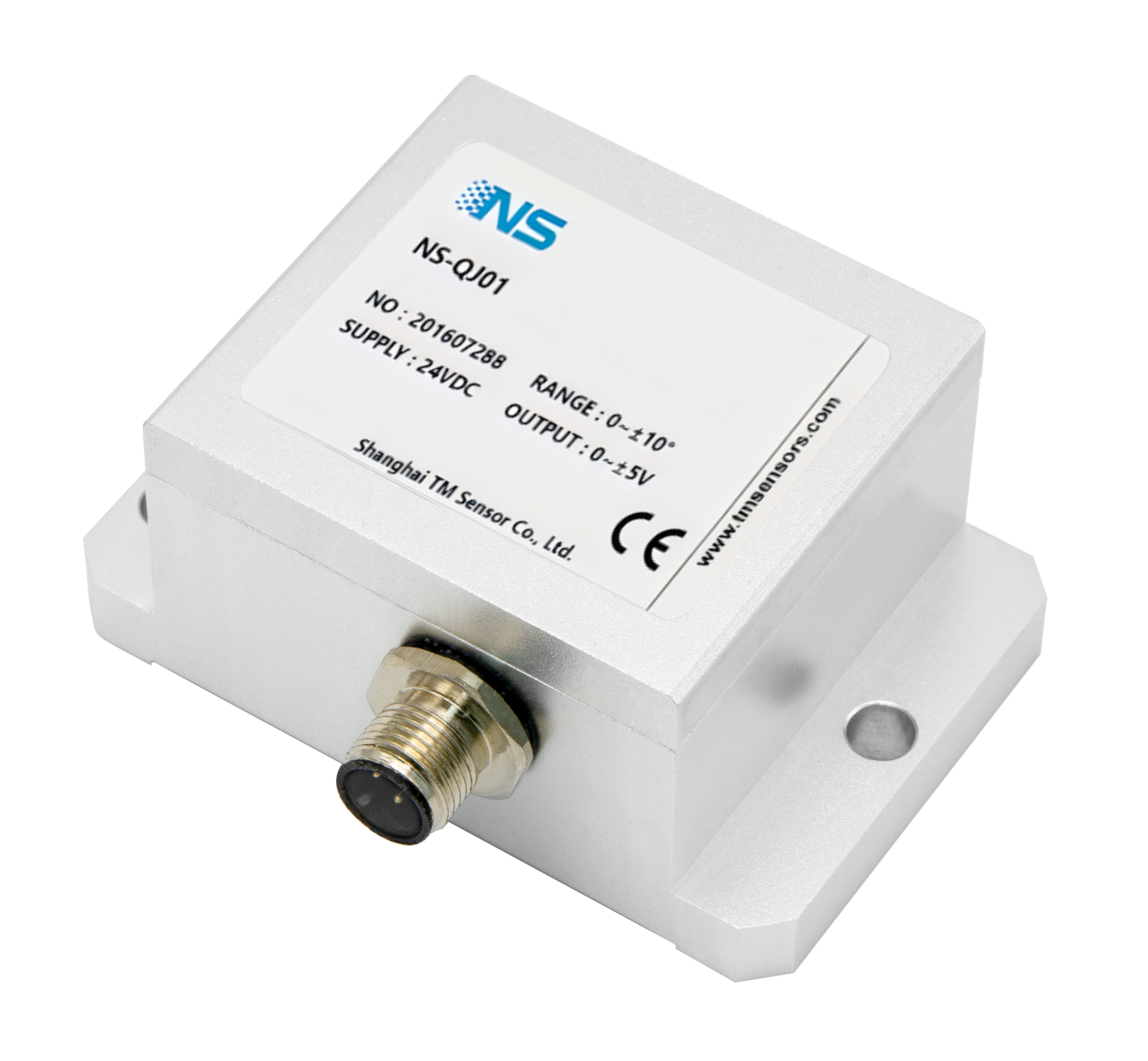

NS-QJ01
Used inaviation, high-speed trains, Construction Machineryandmarinefields
measurementanglemaximumup to±120°, Resolutionup toto0. 001°

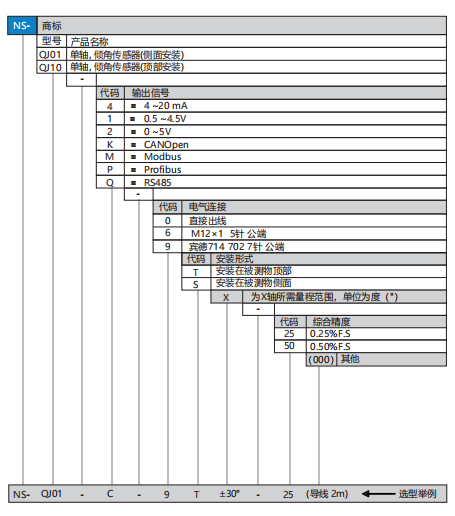

4~20mA, 0~5VDC, 0. 5~4. 5VDC, RS485etc. multiple analogandnumber
digitalsignalOutputmethods available
wideVoltagePower Supply12-32VDC, 50VDCoverpressure protection
Protection RatingIP68
impact resistance50gabove, vibration resistance, highstability
complies withRoHS, CEcertification
passedEMC, surgetesting, reverse power-polarity protection
| Specifications | Technical Data | |||||||||
| Angular range | 0~±15°…±30°…±120°(every10°increment) | |||||||||
| Resolution | 0.001° | |||||||||

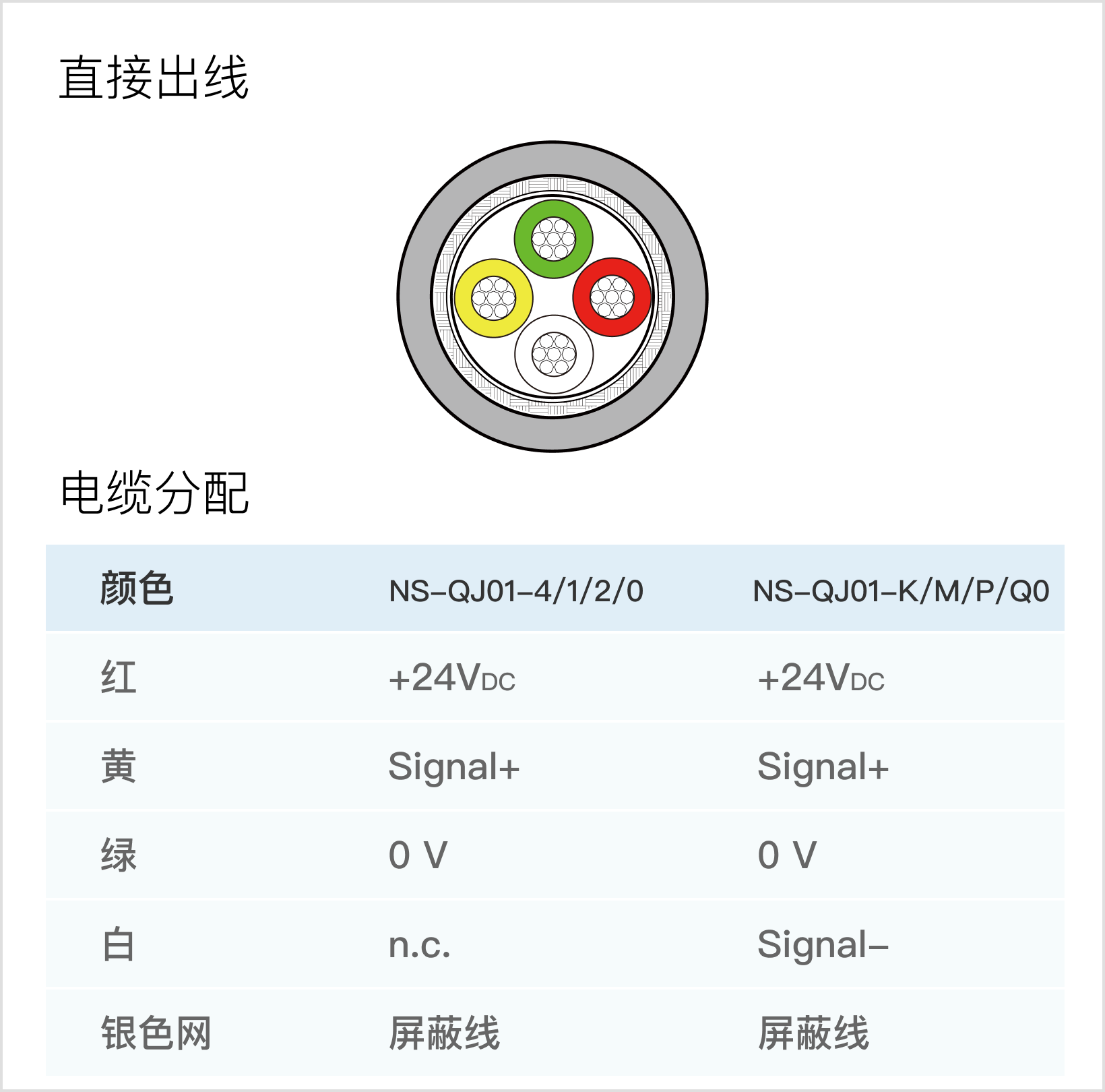

| Output signal | 4~20mA，3conductor 0.5~4.5V，3conductor 0~5V，3conductor RS485，4conductor | |||||||||
| Operating voltage | 24VDC(12~32VDC))，3conductor | |||||||||
| Comprehensiveprecision | 0.25%F.S, 0.5%F.S | |||||||||
| Operating temperature range | -40~85℃ | |||||||||
| Storage temperature range | -40~120℃ | |||||||||
| Temperaturedrifting | ±0.005°/℃ | |||||||||
| Long-TermStability | ≤±0.1%F.S/ year（ typ.） | |||||||||
| Current consumption | ≤40mA | |||||||||
| Insulationresistance | ≥100MΩ(100V) | |||||||||
| Vibrationresistance | IEC60068-2-6(49.1m/s2,5g) | |||||||||
| Shockresistance | IEC60068-2-27(50g,11ms) | |||||||||
| Anti-jamming | IEC61000-6-2/3/4 | |||||||||
| Endurance pressure | 35MPa/70MPa(Peak) | |||||||||
| Material | Aluminum Alloy | |||||||||

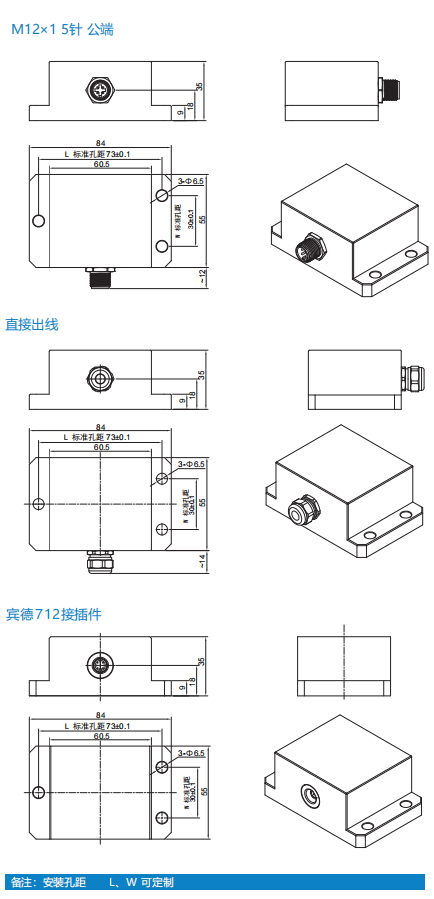

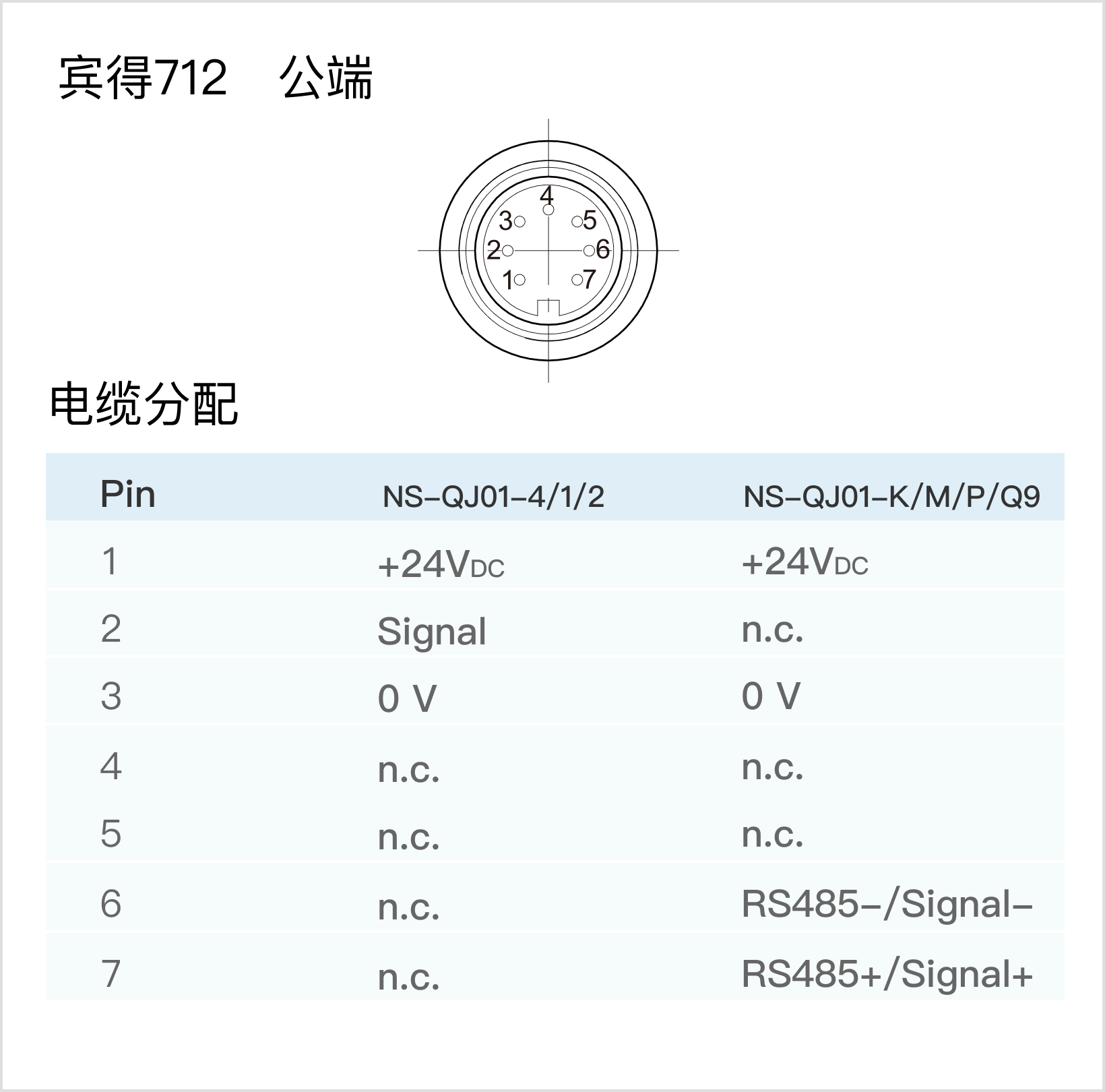

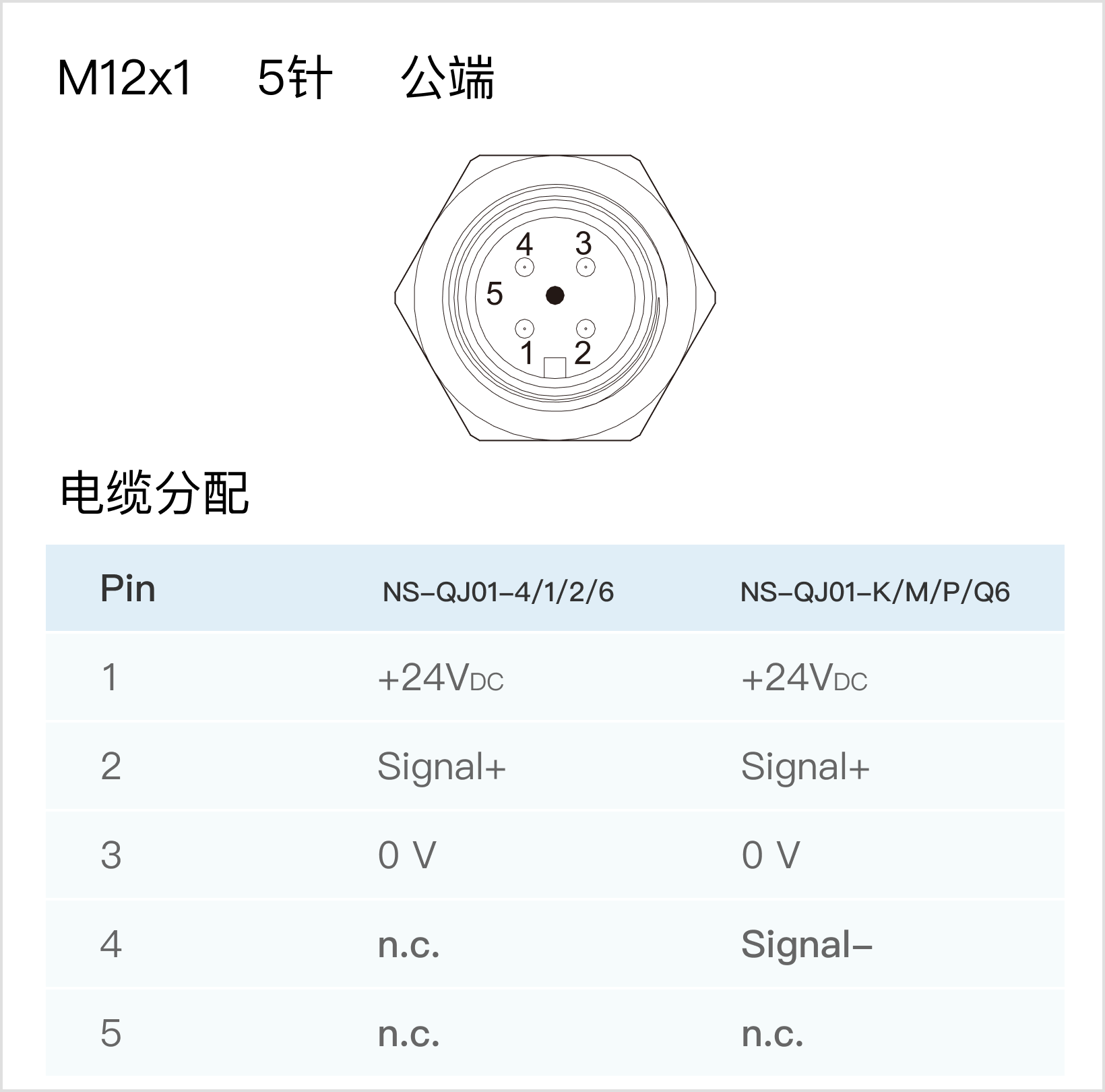

| Ip protection | IP67(Binder712, M12×1) IP68(direct cable) | |||||||||
