| Specifications | Technical Data | |||||||||
| Measuring ranges | 0~1...2..4MPa | |||||||||
| Overload pressures | 200%F.S | |||||||||
| Burst pressures | 500%F.S | |||||||||
| Operational Mode | Gauge Pressure | |||||||||
| Measuring Media | Gases/liquids non-corrosive to stainless steel 304 and 316L | |||||||||
| Output signal | 0~5VDC 0~10VDC 4~20mA | |||||||||
| Operating voltage | 24VDC(16~32VDC) | |||||||||
| Accuracy | ±0. 25%F. S(typ. ) | |||||||||
| Operating temperature range | -40~+85℃ | |||||||||
| Storage temperature range | -40~+135℃ | |||||||||
| Fluid temperature range | -40~+150℃ | |||||||||
| Insulation resistance | ≥200MΩ(200VDC) | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| EMC proof | IEC 61000-4-4 | |||||||||

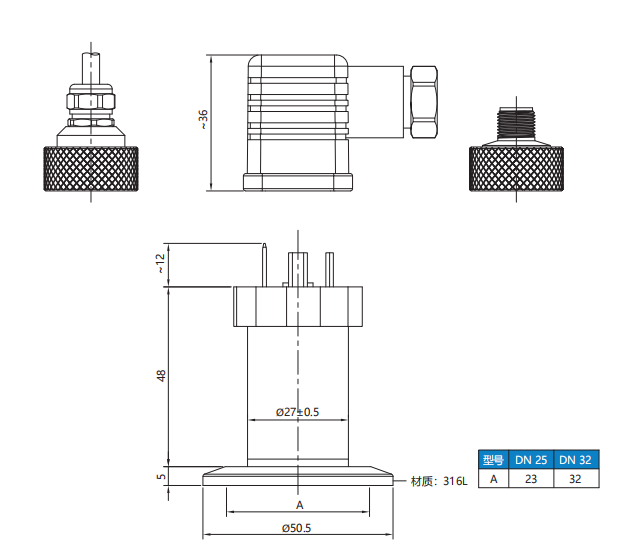

| Mechanical connection | Clamp | |||||||||
| Material | Stainless Steel | |||||||||

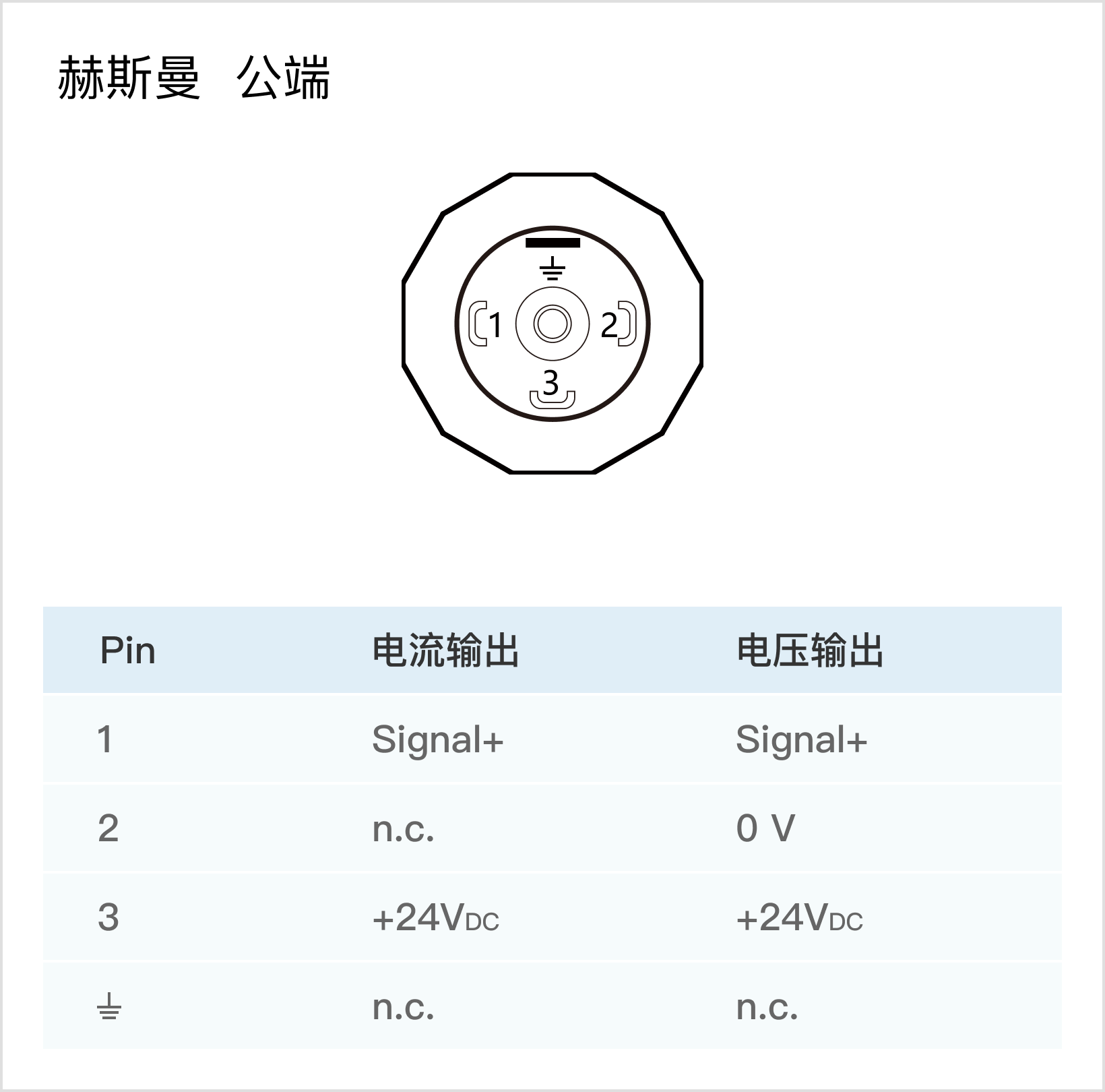

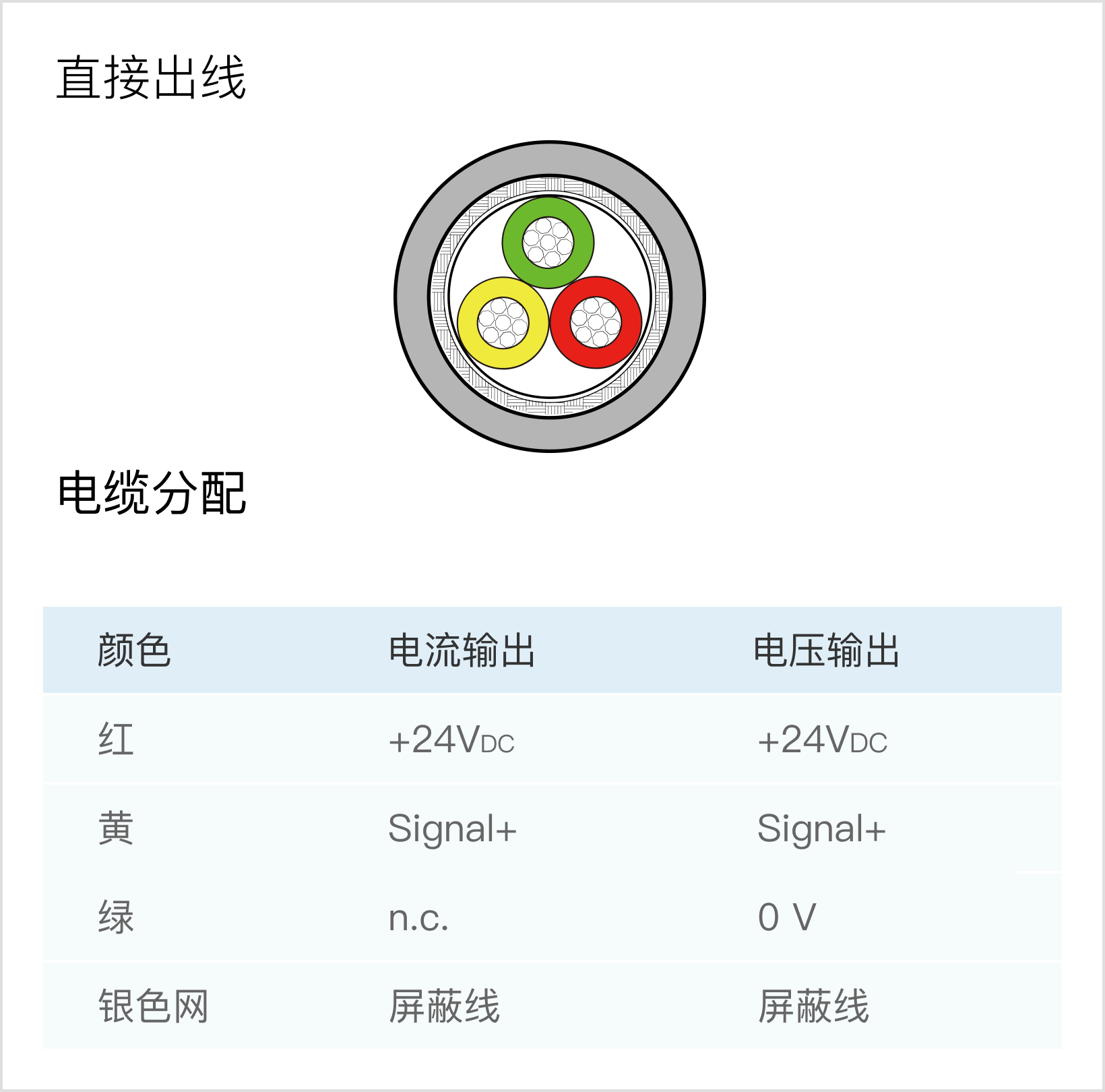

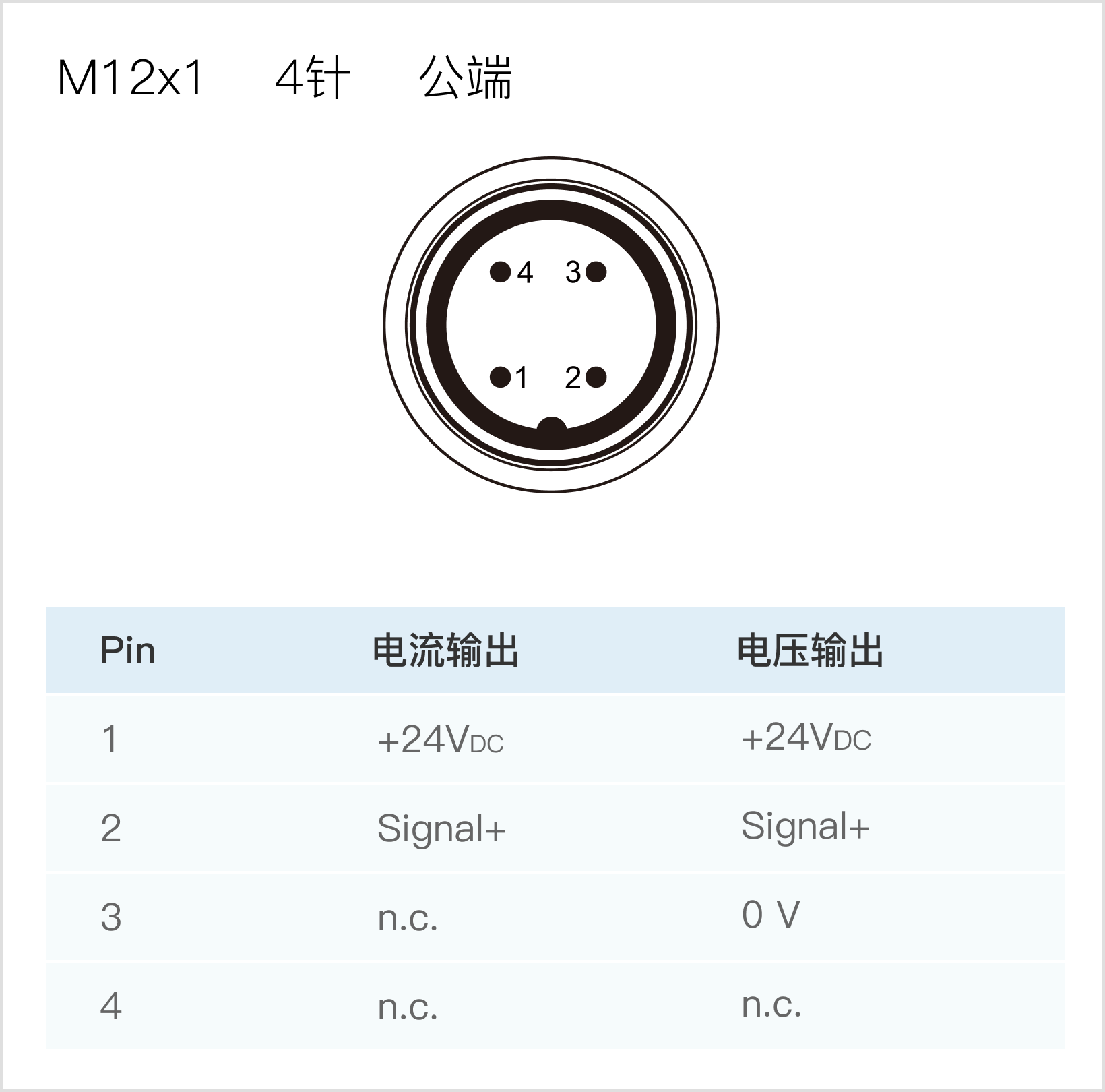

| IP protection | IP65 (Hirschmannconnector) IP67 (M12×1connectorordirect cable) | |||||||||
