NS-WL01

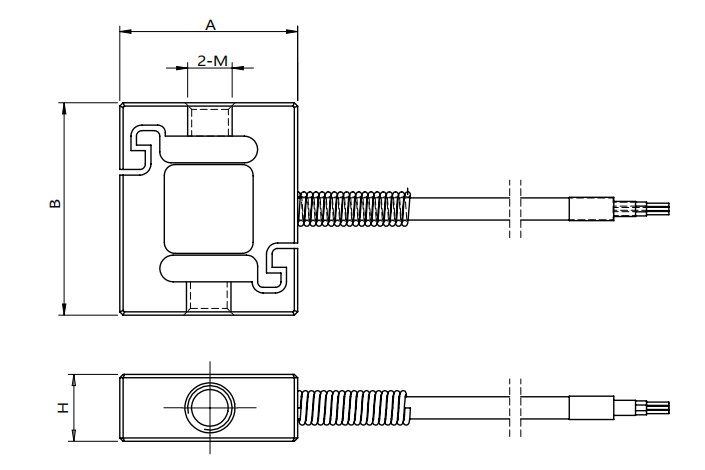

S-beam design for both tension and compression
High accuracy, waterproof and corrosion-resistant
Equipped with overload protection
Widely used in electronic truck scales, crane scales, hopper scales and other applications
| Specifications | Technique data | |||||||||
| Rated capacity | 5、10、50、100N | |||||||||
| Rated Output | 1.0-2.0mV/V | |||||||||
| Zero Balance | ±2%mV/V | |||||||||
| Non-linearity | ±0.15%F.S | |||||||||
| Hystersis | ±0.1%F.S | |||||||||
| Repeatability | ±0.1%F.S | |||||||||
| Creep | ±0.1%F.S/30min | |||||||||
| Zerooutput | ＜±1%F.S | |||||||||
| Inputresistance | 350±30Ω | |||||||||
| Outputresistance | 350±5Ω | |||||||||
| Insulation resistance | ≥5000MΩ/100VDC | |||||||||
| Rated Temperature Range | -10~60℃ | |||||||||
| Operating Temperature Range | -20~80℃ | |||||||||
| Safeoverload | 150%F.S | |||||||||
| Ultimateoverload | 200%F.S | |||||||||
| Recommendedexcitationvoltage | 5~12VDC | |||||||||
| Maximumexcitationvoltage | 15VDC | |||||||||
| Cable Size | φ2x3000mm（M4），φ3x3000mm（M8） | |||||||||
| Material | Stainless Steel | |||||||||
| IP protection | IP66 | |||||||||
| Cable Color Code | Input: Red (+), Black (–), Shield: Yellow Output: Green (+), White (–) | |||||||||
