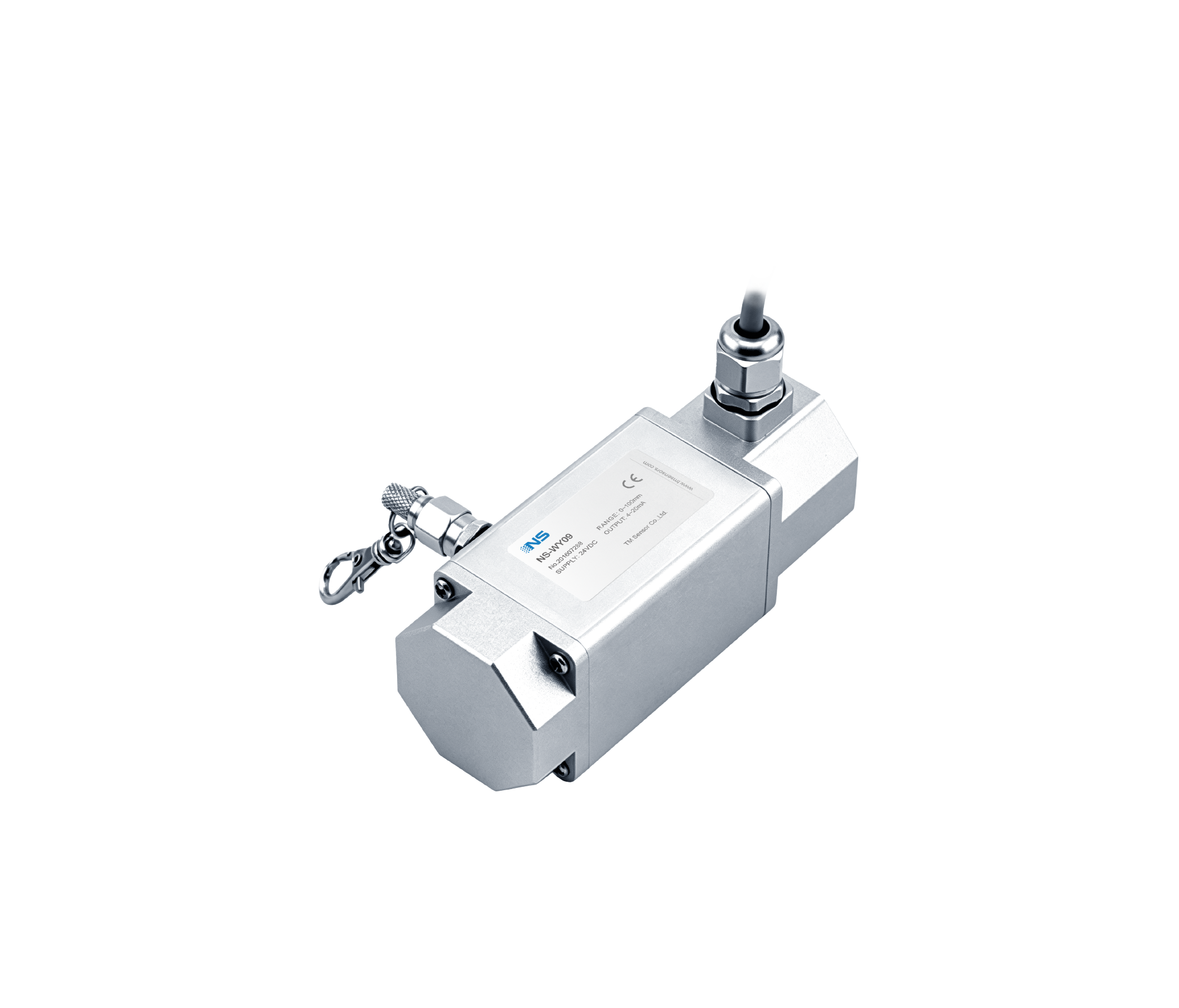

NS-WY09
Used inaviation, industrial machineryandAutomationproduction line
volumesmall, installationusemethodconvenient
high accuracy, Overall Accuracyup to0. 25% F. S
High resolution, smooth movement, and strong anti-interference capability
Protection Rating: IP64
Analog output: 0~5V, 0~10V, 4~20mA, potentiometer
| Specifications | Technical Data | |||||||||
| Stroke length | 0~1500…2000…4000…8000mm | |||||||||
| Comprehensiveaccuracy | ±0.05%F.S，±0.1%F.S，±0.25%F.S | |||||||||
| Repeatability | 0.05mm | |||||||||
| Outputwire | 2wires/3wires | |||||||||
| Output signal | 4~20mA, 0~5V, 0~10V, ±0~5V, ±0~10V, encoder, resistance | |||||||||
| Operating voltage | 24VDC （12~32VDC） | |||||||||
| Operating temperature | -30~85℃ | |||||||||
| Vibration proof | 10g(5…2000Hz) | |||||||||
| Strike proof | 50g(11ms) | |||||||||
| Displacmentspeed | ≤0.7m/s | |||||||||
| Material | Aluminum Alloy Aluminium alloy | |||||||||
| Electrical connection | Direct Cable/M12×1 4- pole male | |||||||||
| Ip protection | IP54 | |||||||||
