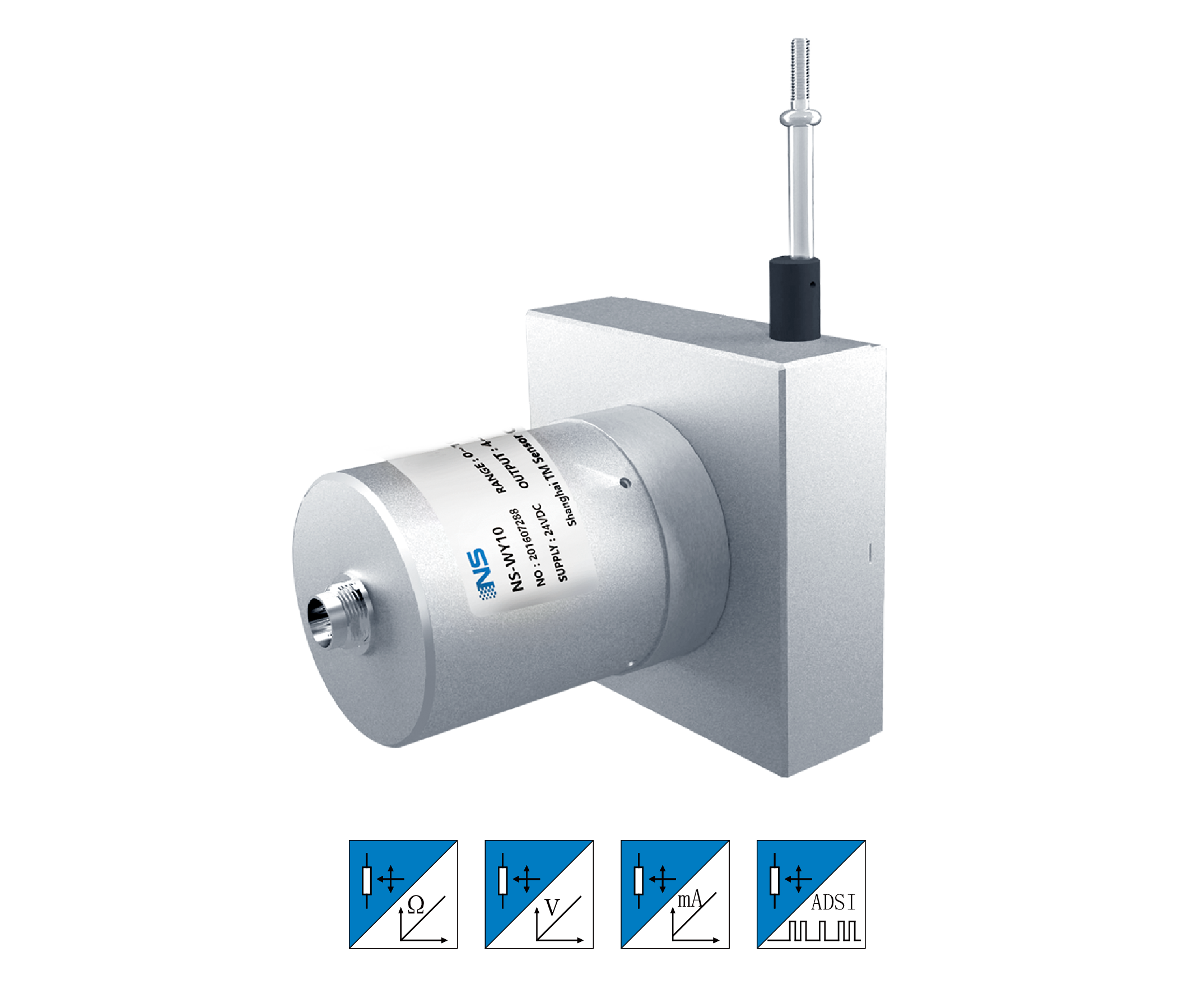

NS-WY10
high accuracy, Overall Accuracyup to0. 05% F. S
goodgoodvibration resistanceandshock resistance
Protection Rating: IP65
Analog output: 0~5V, 0~10V, 4~20mA, potentiometer, encoder
Used inaviation, Automationproduction line, bridge and tunnel engineering, engineering vehiclesfields
| Specifications | Technical Data | |||||||||
| Stroke length | 0. . . 100mmto0. . . 3000mm | |||||||||
| Comprehensiveaccuracy | 0.05%F.S、0.1%F.S、0.25%F.S | |||||||||
| Repeatability | 0.005mm | |||||||||
| Outputwire | 2wires/3wires | |||||||||
| Output signal | potentiometer: Max10kΩ Voltage: 0~5V, 0~10V, 0~±5V, 0~±10V current: 4~20mA encoderOutput | |||||||||
| Operating voltage | 24VDC （12~32VDC） | |||||||||
| Storage temperature range | -20℃~85℃ | |||||||||
| Operating temperature range | -40℃~120℃ | |||||||||
| Vibration proof | 10g(1Hz-2kHz)with reference toEN60068-2-6 | |||||||||
| Strike proof | 50g/6mswith reference toEN60068-2-27 | |||||||||
| Displacmentspeed | ≤0.5m/s | |||||||||
| Material | Aluminum Alloy Aluminium alloy | |||||||||
| Electrical connection | Direct Cable/M12×1 4- pole male M16×1 4-pole male | |||||||||
| Ip protection | IP65(signalconnectorcorrectly assembledandconnection: ) | |||||||||
