NS-WY02

NS-WY02
Spring-Return Displacement Sensor

High accuracy, low error, wide range

High resolution and long expected service life

Protection rating IP54

Spring-Return Displacement Sensor

Technical Parameters
SpecificationsTechnique data
Stroke length5 mm10 mm25mm50mm75mm100mm

150mm

No bounce back

Housing length(A±1mm)48486394.4134.4166188
Mechanical stroke(B±1.5mm)1515305580105155
Size C (mm)7712121212
Size D (mm)6632323232
Comprehensive accuracy+0.05%F.S, +0.1%F.S, +0.25%F.S
Repeatability0.002mm

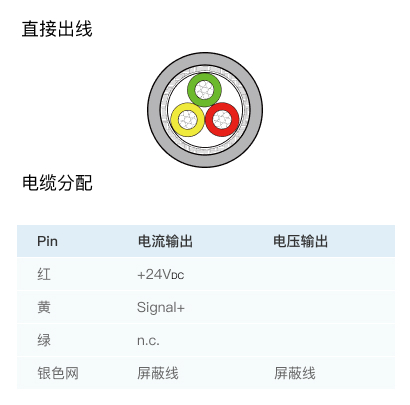

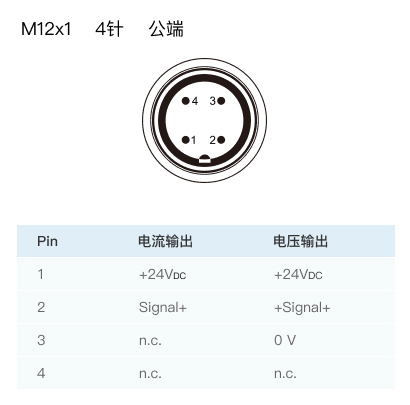

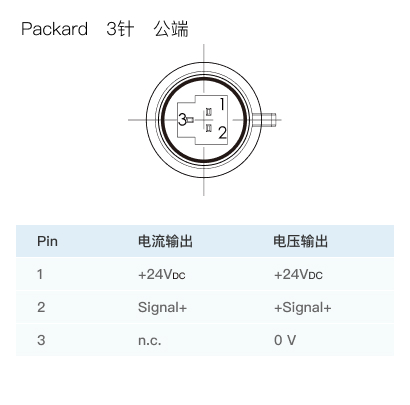

Output signal4~20mA, 0~5V, 0~10V, 0~±5V, 0~±10V
Operating voltage24VDC(12~32VDc)
Operating temperature-30~100℃
Vibration proof20g(5...2000 Hz)
Strike proof50g(11 ms)
Displacement speed≤10m/s
Insulation resistance≥100MΩ(50VDC)
Resolution0.001MM
Material Aluminium alloy
Ip protectionIP40

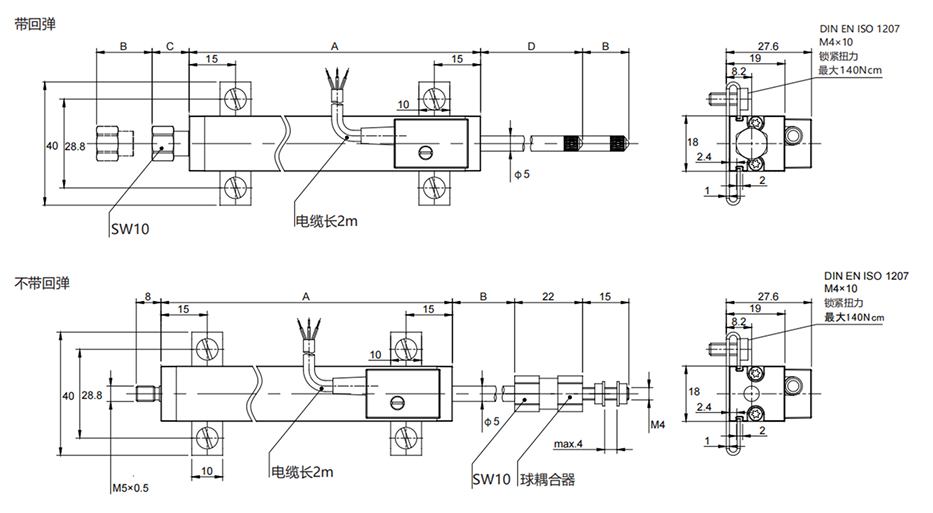

Outline Dimension Drawing

拉线式位移传感器(图1)

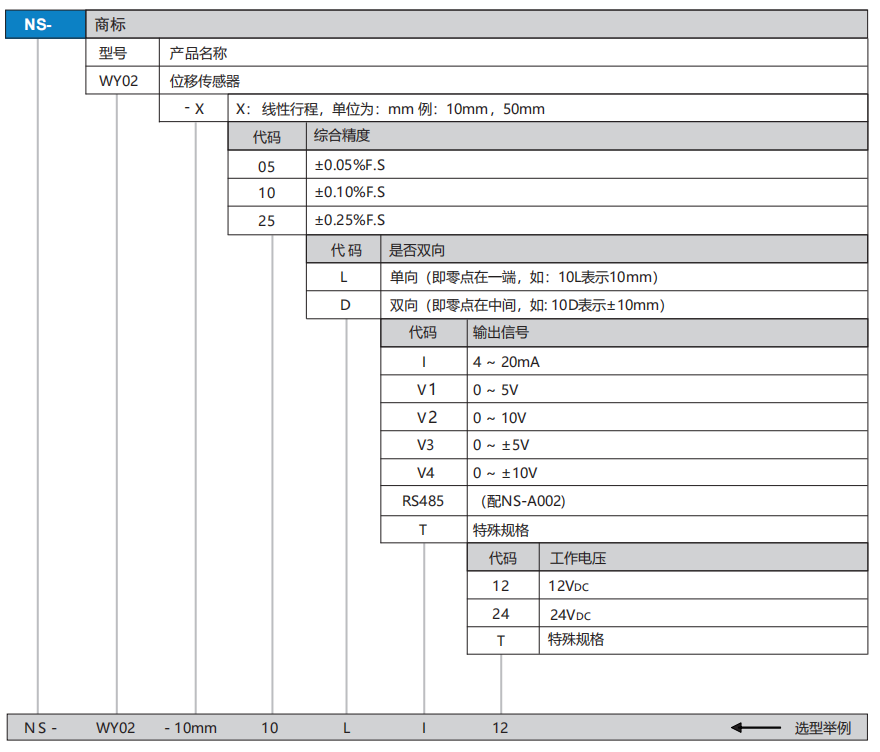

Selection Table

Spring-Return Displacement Sensor(图1)
