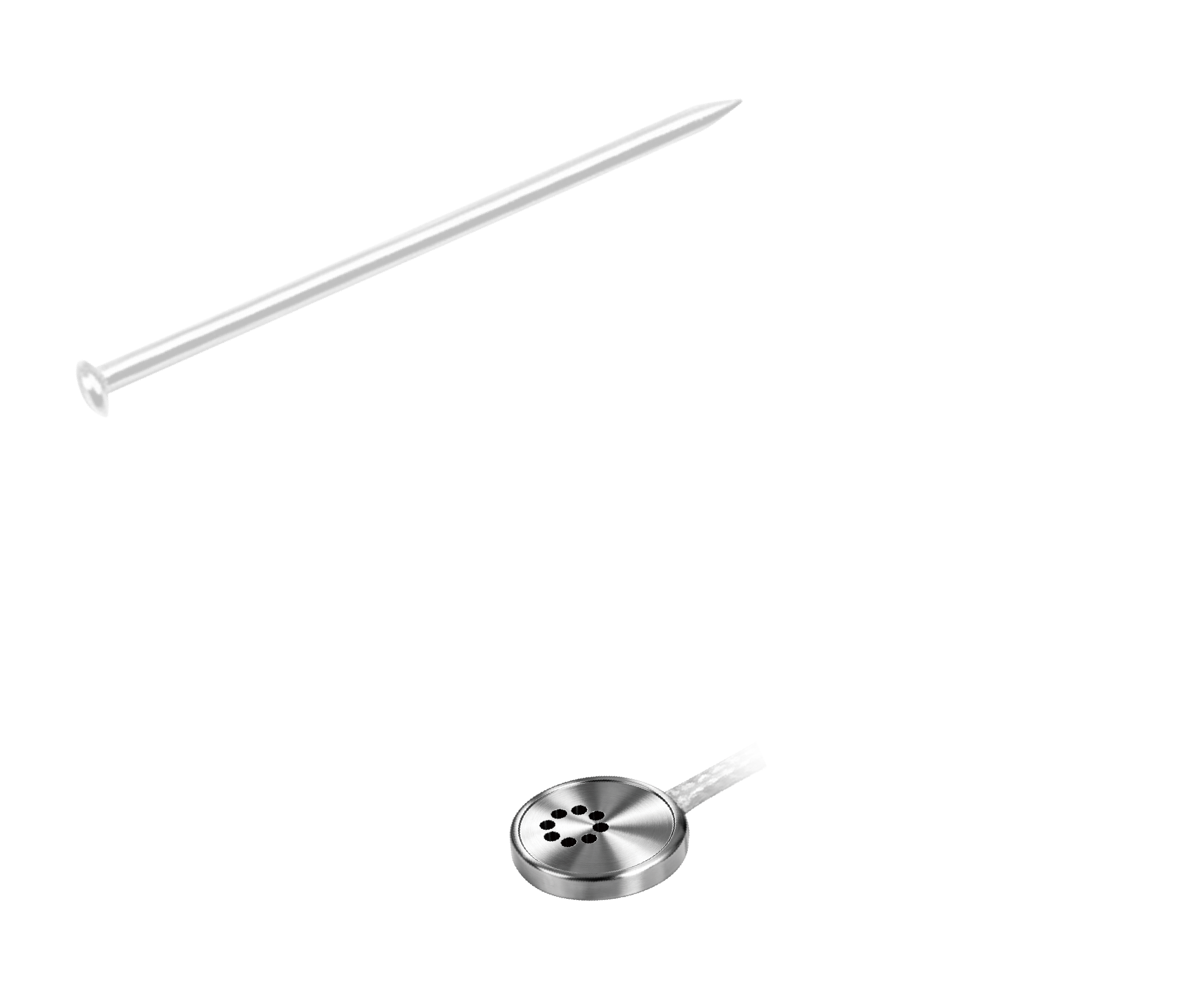

NS-L250
Used in aviation, aerospace, high-speed rail and other fields.

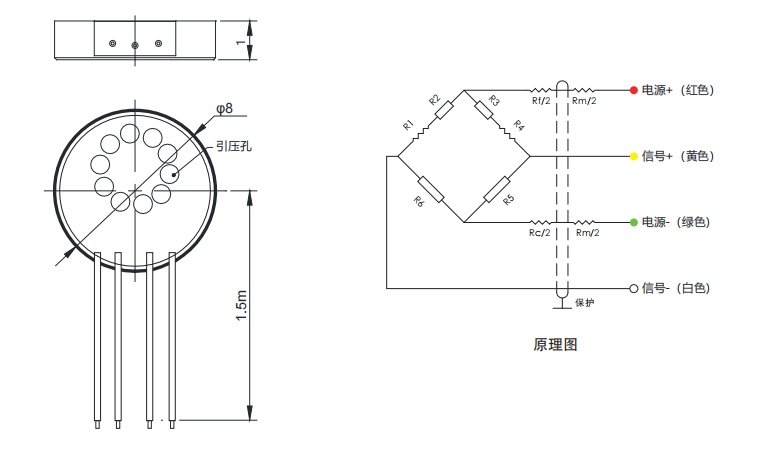

Compact and thin structure, outline dimension: Φ8×1 mm.
Output: mV signal.
Customizable size and thickness.
Alternative option for liquid measurement.
Custom sensors with dimensions similar to LQ-062, LL-072 are available.
| Specifications | Technical Data | |||||||||
| Measuring ranges | -100kPa...0~100kPa....1MPa | |||||||||
| Overload pressures | 200%F.S | |||||||||
| Burst pressures | 500%F.S | |||||||||
| Operational Mode | Gauge Pressure, Absolute Pressure | |||||||||
| Measuring Media | Air (clean, non-corrosive, non-conductive gas) | |||||||||
| Output signal | 100mV(typ. ) | |||||||||
| Operating voltage | 10VDC | |||||||||
| Accuracy | ±0. 25%F. S(typ. ) | |||||||||
| Compensated temperature range | -20~+80℃ | |||||||||
| Operating temperature range | -30~+80℃/+150℃(Optional)(Transient: -55 ~ +300 ℃) | |||||||||
| Storage temperature range | -40~+125℃ | |||||||||
| Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| EMC proof | IEC 61000-6-2/3/4 | |||||||||
| Material | 304Stainless Steel | |||||||||
