| Specifications | Technical Data | |||||||||
| Measuring ranges | -100kPa...0~100kPa…1MPa…5.0…10MPa…35MPa | |||||||||
| Overload pressures | 200%F.S | |||||||||
| Burst pressures | 500%F.S | |||||||||
| Operational Mode | Gauge Pressure, Absolute Pressure | |||||||||
| Measuring Media | Non-corrosive, non-conductive gases/liquids | |||||||||
| Output signal | 100 mV(typ. ) | |||||||||
| Operating voltage | 5VDC | |||||||||
| Accuracy | ±0. 25%F. S(typ. ) | |||||||||
| Compensated temperature range | -20~+80℃ | |||||||||
| Operating temperature range | -30~+120℃ | |||||||||
| Storage temperature range | -40~+120℃ | |||||||||
| Current consumption | ≤10mA | |||||||||
| Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| EMC proof | IEC 61000-6-2/3/4 | |||||||||

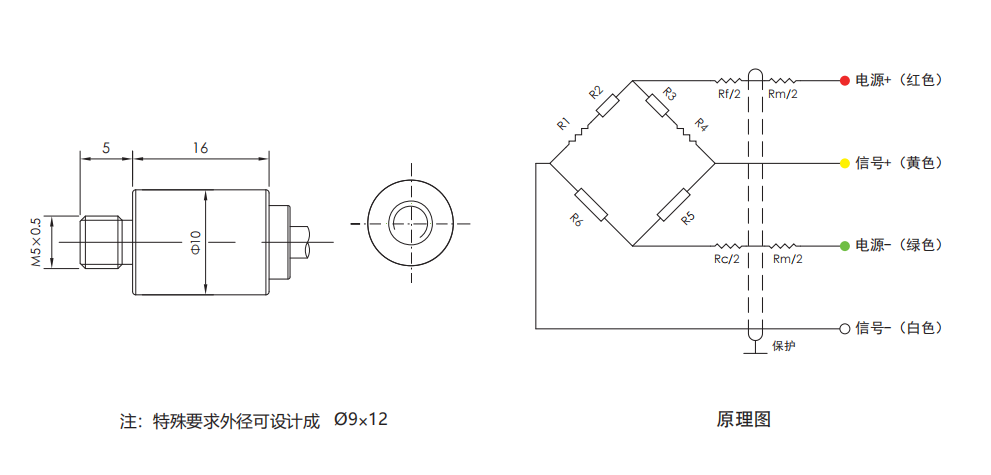

| Mechanical connection | M5×0.5 / M8×1 | |||||||||
| Material | Stainless Steel | |||||||||
