| Specifications | Technical Data | |||||||||
| Measuring ranges | -100kPa...0~1.0…1.6…3.0…10…20… 40…60…70… 80…90...100MPa | |||||||||
| Overload pressures | 200%F.S 150%F.S 120%F.S | |||||||||
| Burst pressures | 500%F.S 200%F.S 150%F.S | |||||||||
| Operational Mode | Gauge Pressure, Absolute Pressure | |||||||||
| Measuring Media | Gases/liquids non-corrosive to stainless steel 304 and 316L | |||||||||
| Output signal | 100 mV(typ. ) | |||||||||
| Operating voltage | 5VDC/10VDC | |||||||||
| Accuracy | ±0.10%F.S ±0.25%F.S ±0.50%F.S | |||||||||
| Long-term drift | ≤±0. 2%F. S/- | |||||||||
| Operating temperature range | -40~+80℃ | |||||||||
| Storage temperature range | -40~+135℃ | |||||||||
| Current consumption | ≤10mA | |||||||||
| Insulation resistance | ≥100MΩ(500VDC) | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| EMC proof | IEC 61000-6-2/3/4 | |||||||||

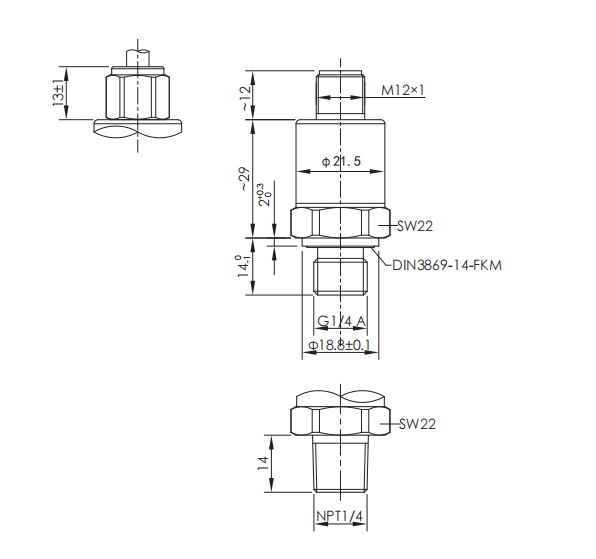

| Mechanical connection | G1/4 A, M12×1,NPT1/4 | |||||||||
| Material | Stainless Steel | |||||||||

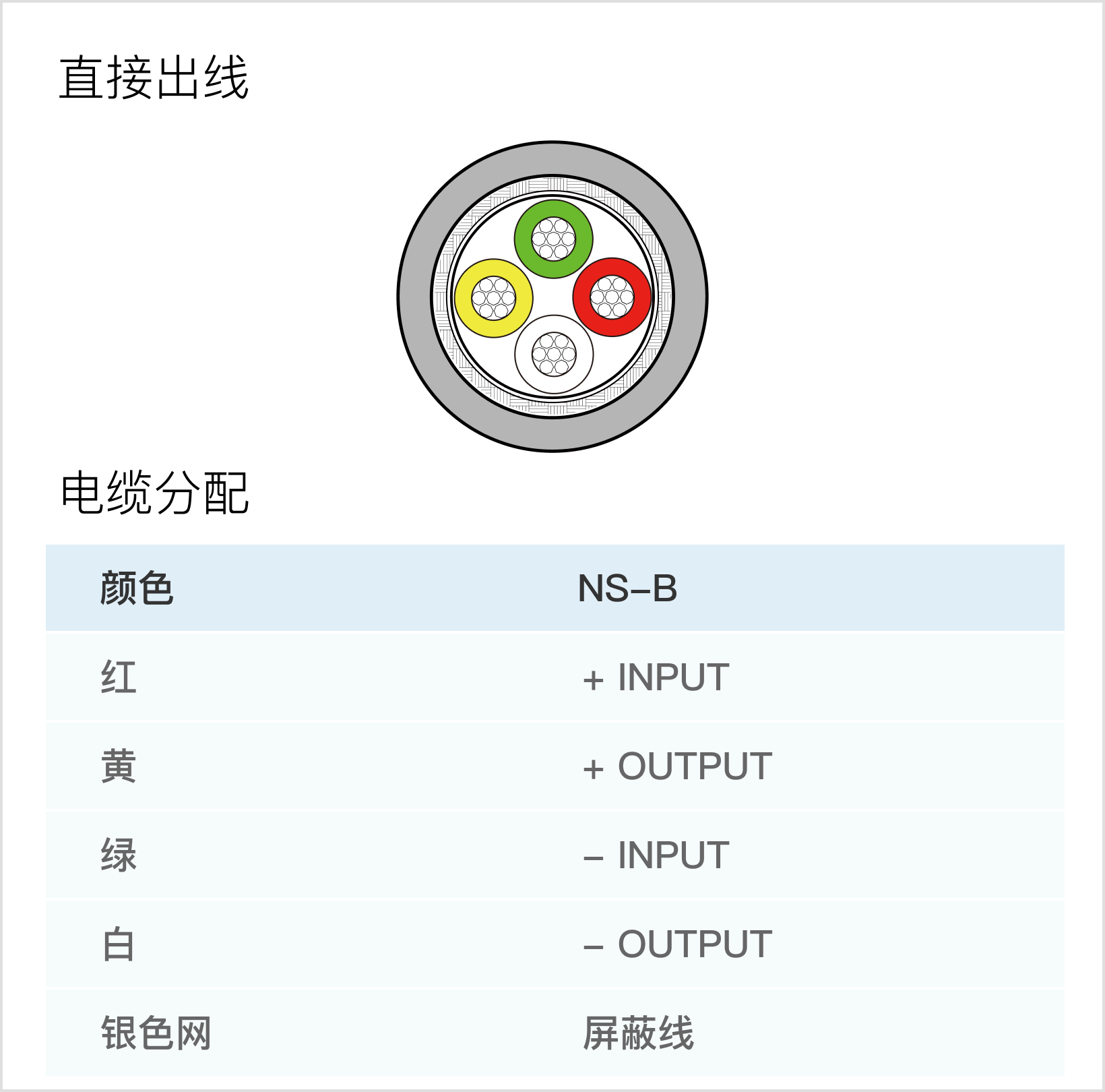

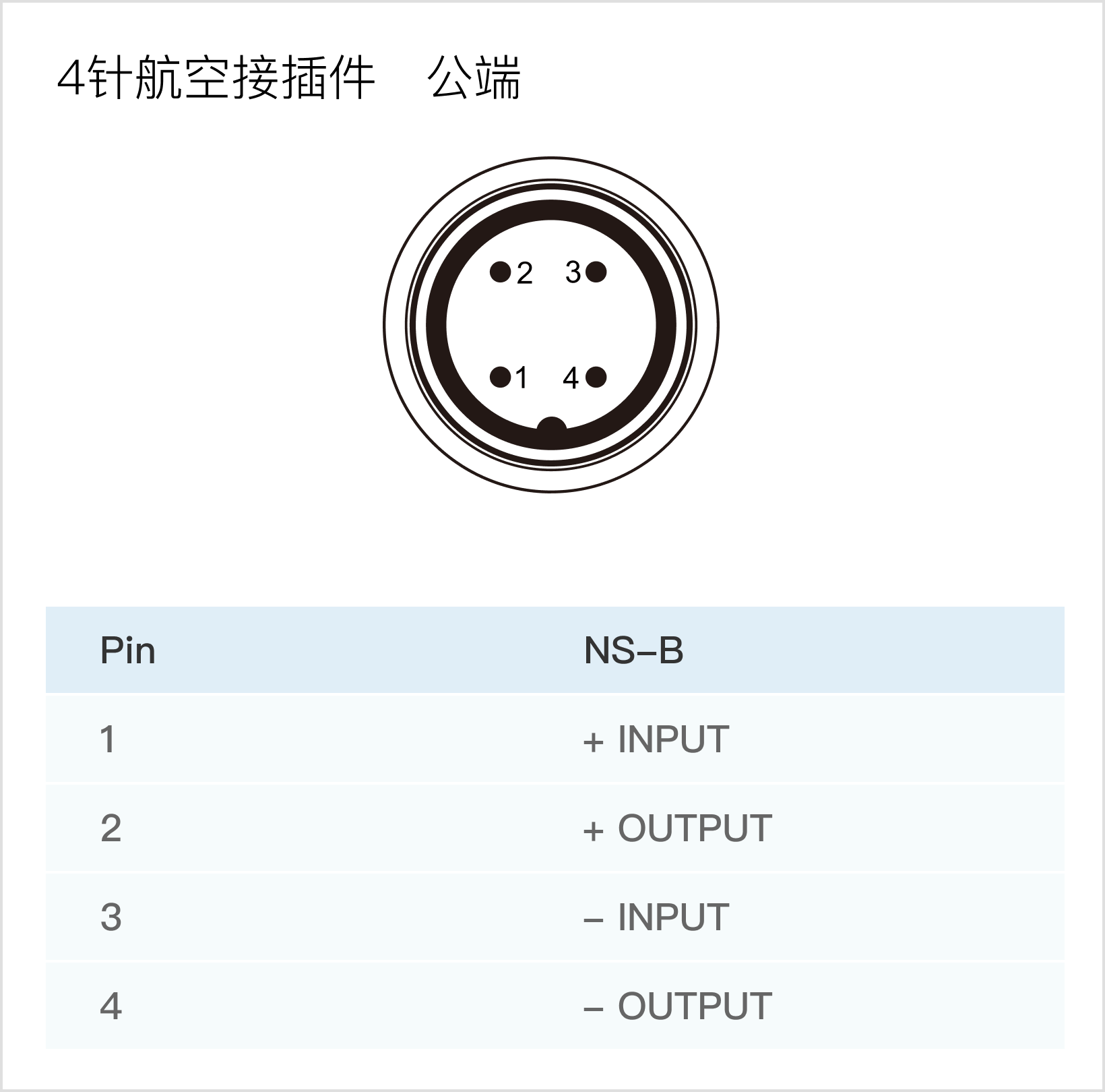

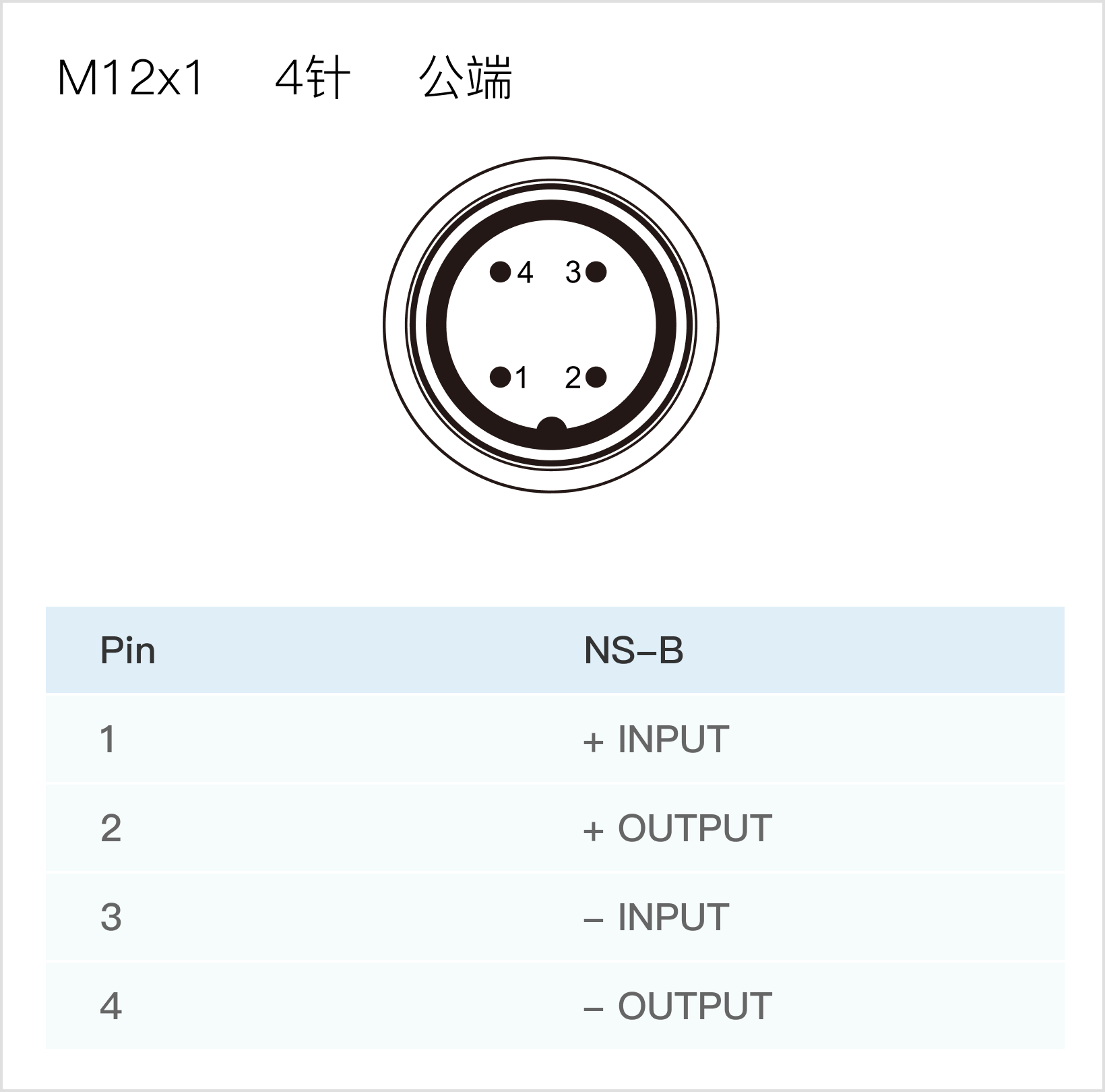

| Ip protection | IP65 (packard connector) IP67 (M12×1 connectorordirect cable) | |||||||||
