| Specifications | Technical Data | |||||||||
| Measuring ranges | 0~0.8…1.0…1.6…3.0…5.0…10…20… 40…50…60...70MPa | |||||||||
| Overload pressures | 200%F.S 150%F.S | |||||||||
| Burst pressures | 500%F.S 300%F.S | |||||||||
| Operational Mode | Gauge Pressure | |||||||||
| Measuring Media | Gases/liquids non-corrosive to stainless steel 304 and 316L | |||||||||
| Output signal | 4~20mA 0~5VDC 0~10VDC | |||||||||
| Operating voltage | 24VDC(12~32VDC) | |||||||||
| Accuracy | ±0. 5%F. S(typical) | |||||||||
| Long-term drift | ≤±0. 2%F. S/- | |||||||||
| Operating temperature range | -30~+80℃ | |||||||||
| Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| EMC proof | IEC 61000-6-2/3/4 | |||||||||
| Material | Stainless Steel | |||||||||

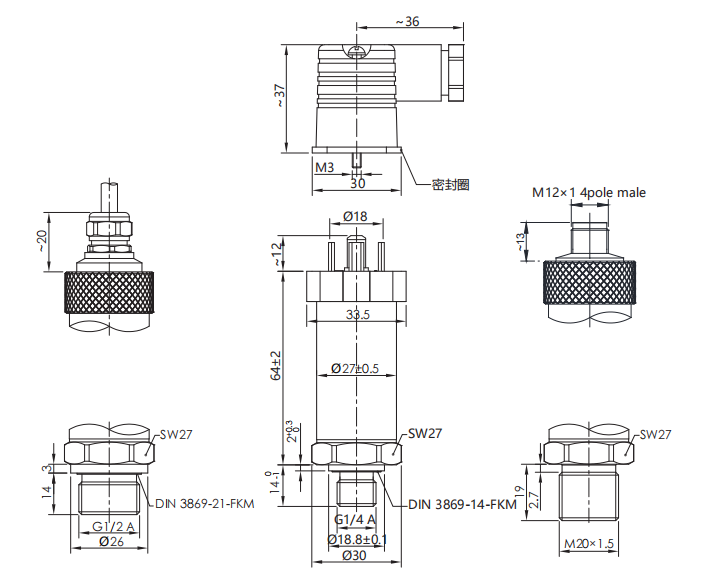

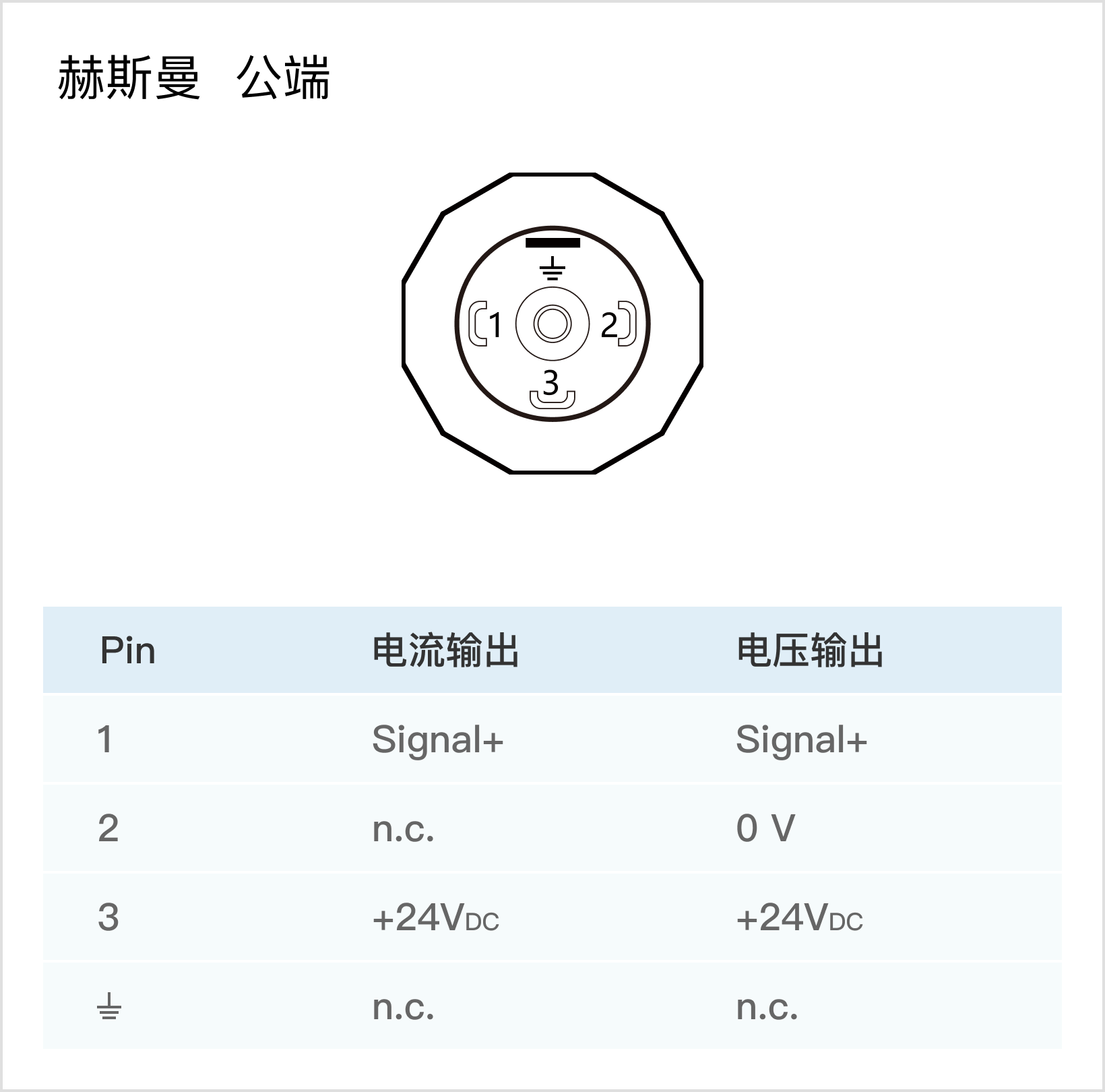

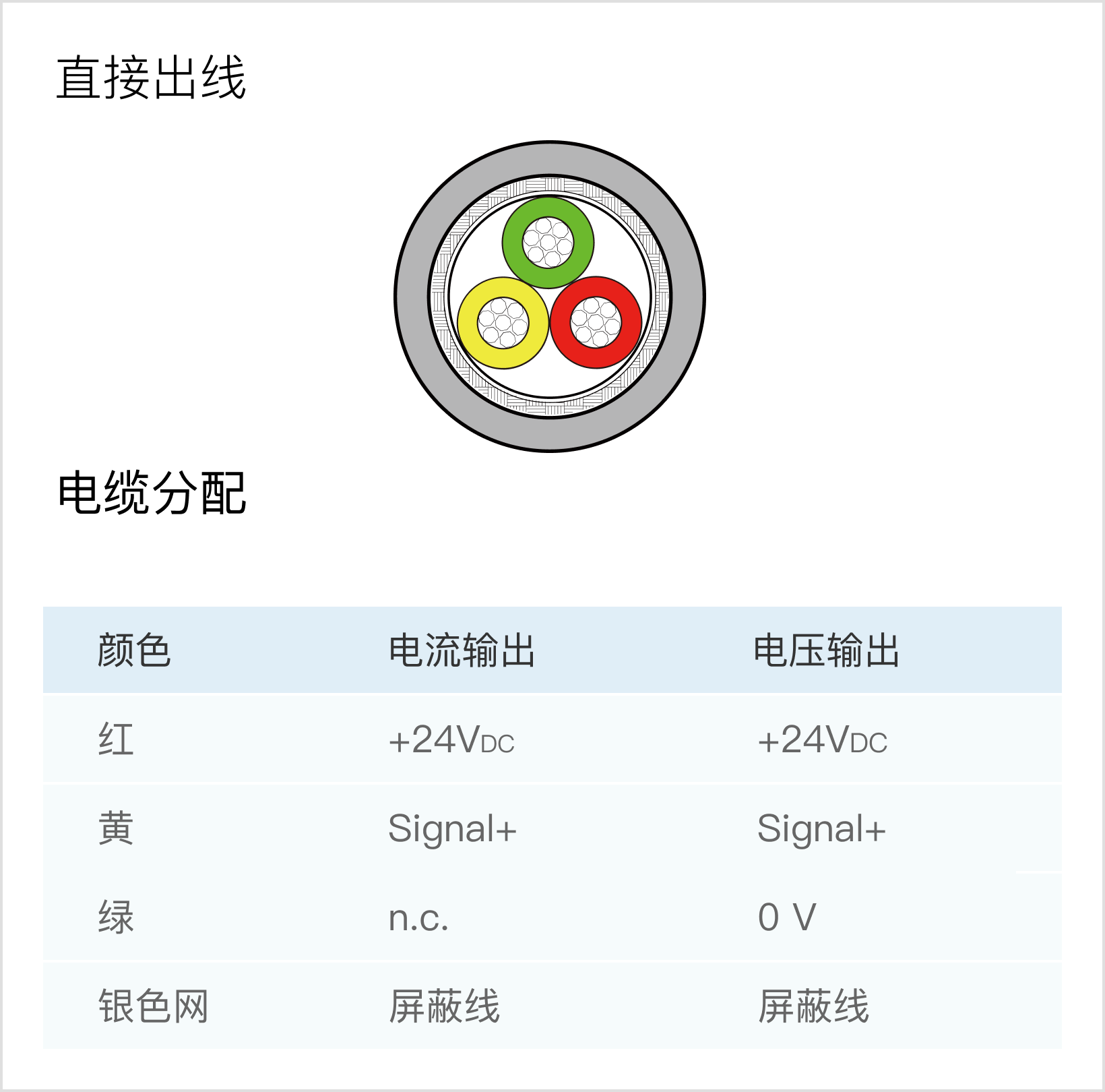

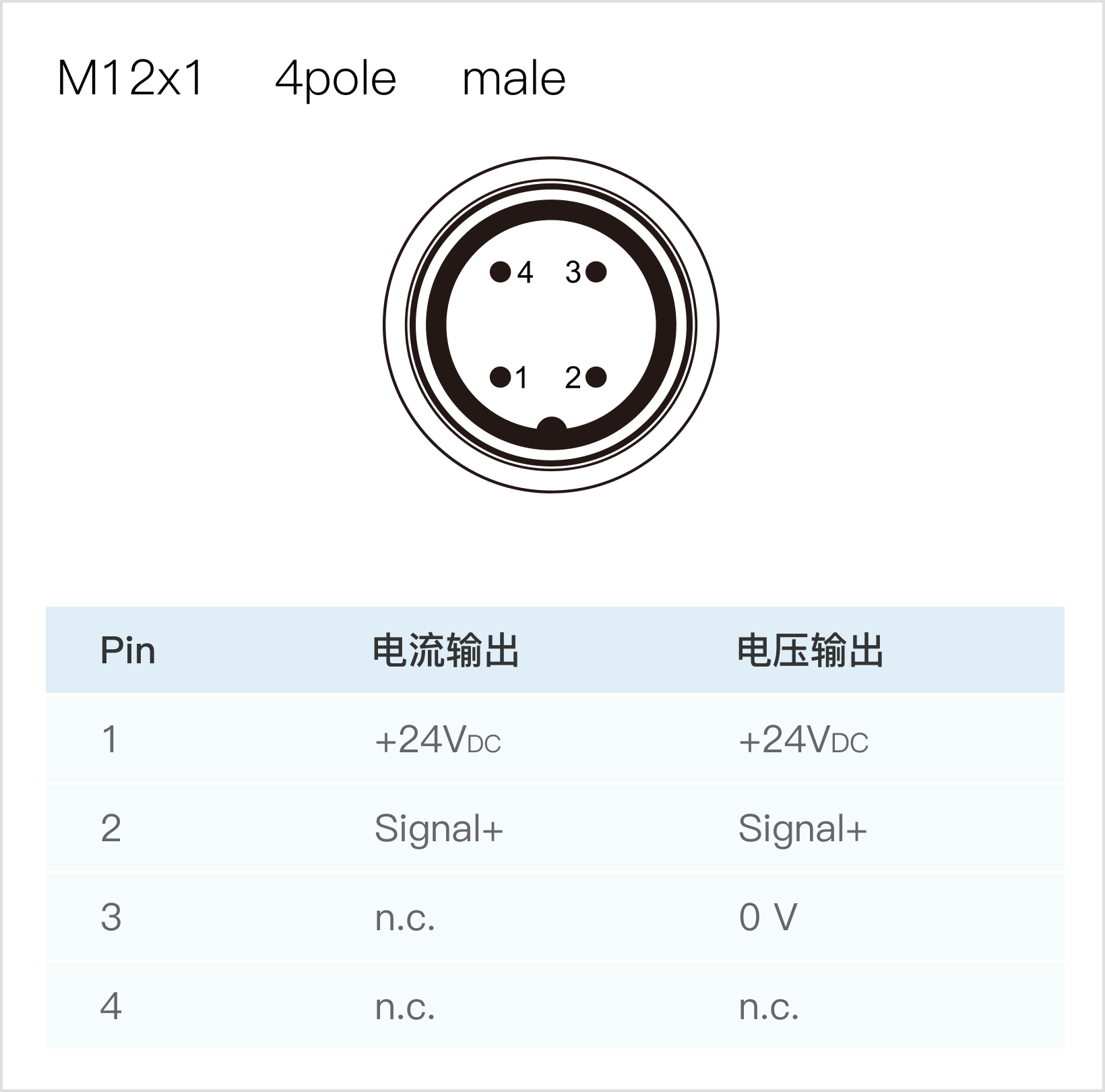

| Ip protection | IP65 (Hirschmannconnector) IP67 (M12×1connectorordirect cable) | |||||||||
