| Specifications | Technical Data | |||||||||
| Measuring ranges | 0~0.8,1.0,1.6,2.0,3.0,4.0,4.2,5.0MPa | |||||||||
| Overload pressures | 200%F.S | |||||||||
| Burst pressures | 500%F.S | |||||||||
| Operational Mode | Gauge Pressure, Absolute Pressure | |||||||||
| Measuring Media | Gases/liquids non-corrosive to stainless steel 304 and 316L | |||||||||
| Output signal | 0.5~4.5VDC | |||||||||
| Operating voltage | 5VDC | |||||||||
| Direct line definition | 16VDCor32VDCOptional | |||||||||
| Accuracy | ±1%F.S（5~45℃） ±2%F.S（-20~80℃） | |||||||||
| Long-term drift | ≤±0. 2%F. S/- (typ. ) | |||||||||
| Operating temperature range | -40~+85℃ | |||||||||
| Current consumption | ≤10mA | |||||||||
| Insulation resistance | ≥500MΩ(500VDC) | |||||||||
| Dielectric strength | AC1500V,1 minute or AC1800V,1 second | |||||||||

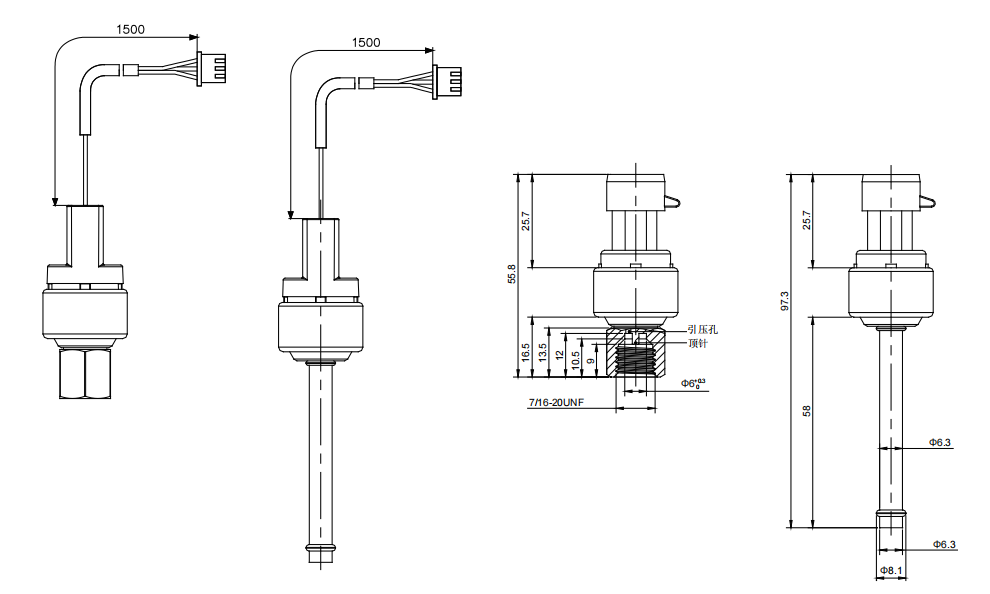

| Mechanical connection | Copper Tube, 7/16-20UNF | |||||||||
| Material | Stainless Steel and Copper | |||||||||
| Ip protection | IP66 | |||||||||
