| Specifications | Technical Data | |||||||||
| Measuring ranges | 0~5,10,20,30,40,50,60MPa | |||||||||
| Overload pressures | 200%F.S 150%F.S | |||||||||
| Burst pressures | 300%F.S 200%F.S | |||||||||
| Operational Mode | Gauge Pressure | |||||||||
| Measuring Media | Gases/liquids non-corrosive to stainless steel 304 and 316L | |||||||||
| Output signal | 0.5~4.5VDC | |||||||||
| Operating voltage | 5VDC | |||||||||
| Accuracy | ±0. 5%F. S(typ. ) | |||||||||
| Long-term drift | ≤±0. 2%F. S/- (typ. ) | |||||||||
| Operating temperature range | -30~+80℃ | |||||||||
| Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 10g) | |||||||||
| Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| EMC proof | IEC 61000-6-2/3/4 | |||||||||
| Material | Stainless Steel | |||||||||

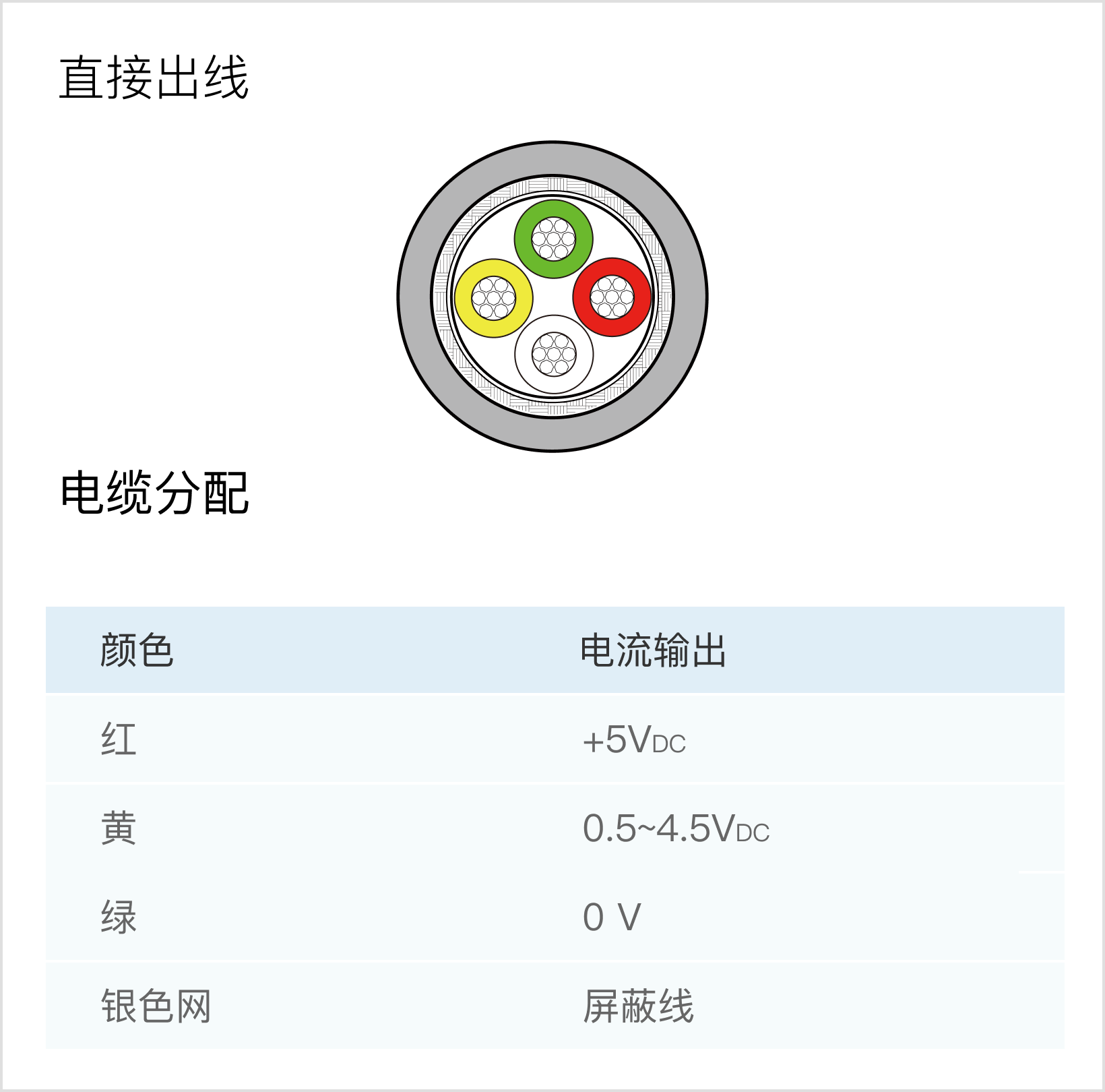

| Ip protection | IP67 (direct cable) | |||||||||
