| Specifications | Technical Data | |||||||||
| Measuring ranges | 0~0.8，1.0,1.6,3.0,10,40,50,60MPa | |||||||||
| Overload pressures | 200%F.S 150%F.S | |||||||||
| Burst pressures | 300%F.S 200%F.S | |||||||||
| Operational Mode | Gauge Pressure, Absolute Pressure | |||||||||
| Measuring Media | Gases/liquids non-corrosive to stainless steel 304 and 316L | |||||||||
| Output signal | 4~20mA, 0~5VDC, 0~10VDC | |||||||||
| Operating voltage | 24VDC(12~32VDc) | |||||||||
| Accuracy | ±0. 5%F. S(typ. ) ±1%F. S(maximum value) | |||||||||
| Long-term drift | ≤±0. 2%F. S/- (typ. ) | |||||||||
| Operating temperature range | -30~+80℃ | |||||||||
| Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| EMC proof | IEC 61000-6-2/3/4 | |||||||||
| Material | Stainless Steel | |||||||||

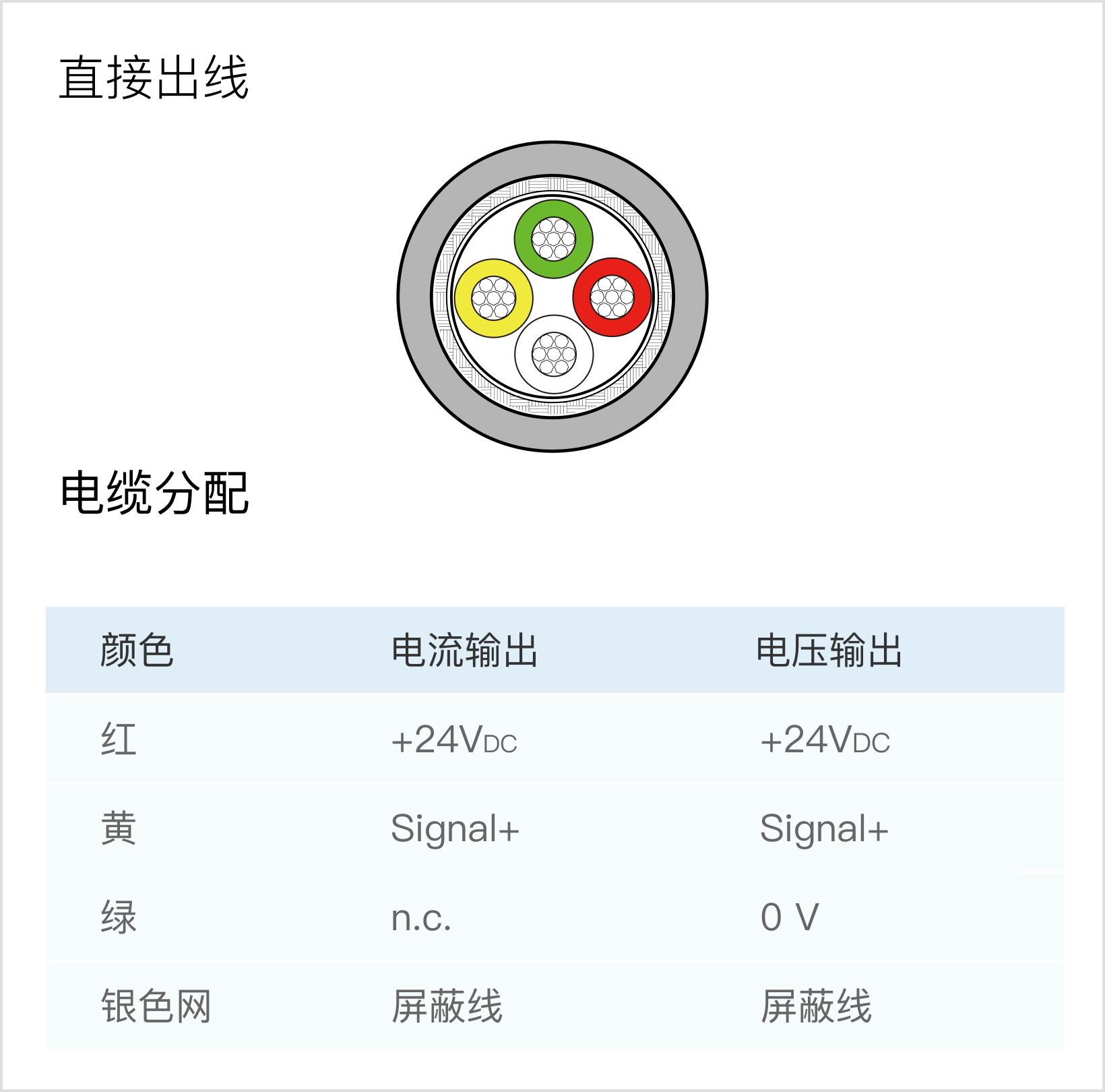

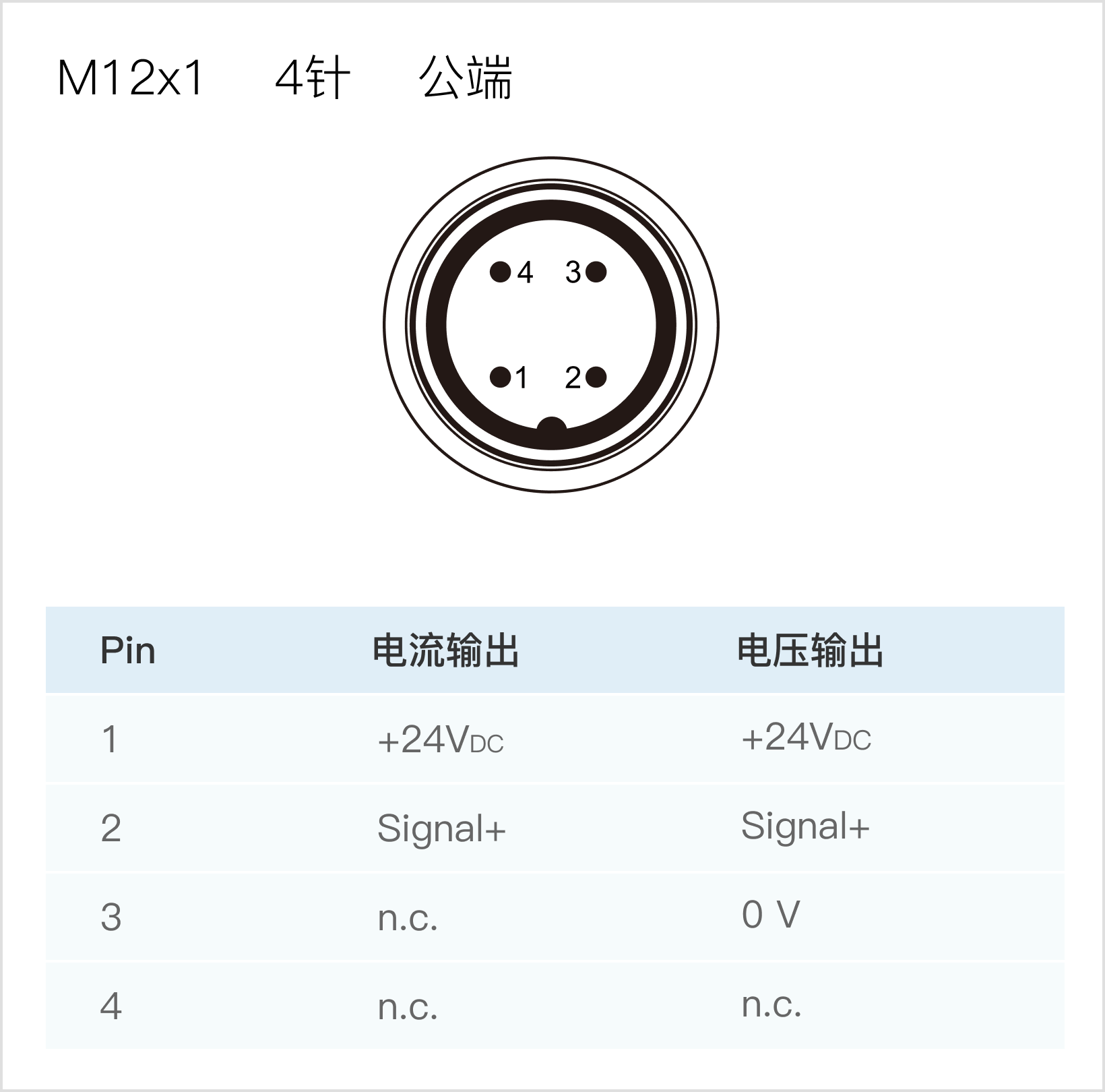

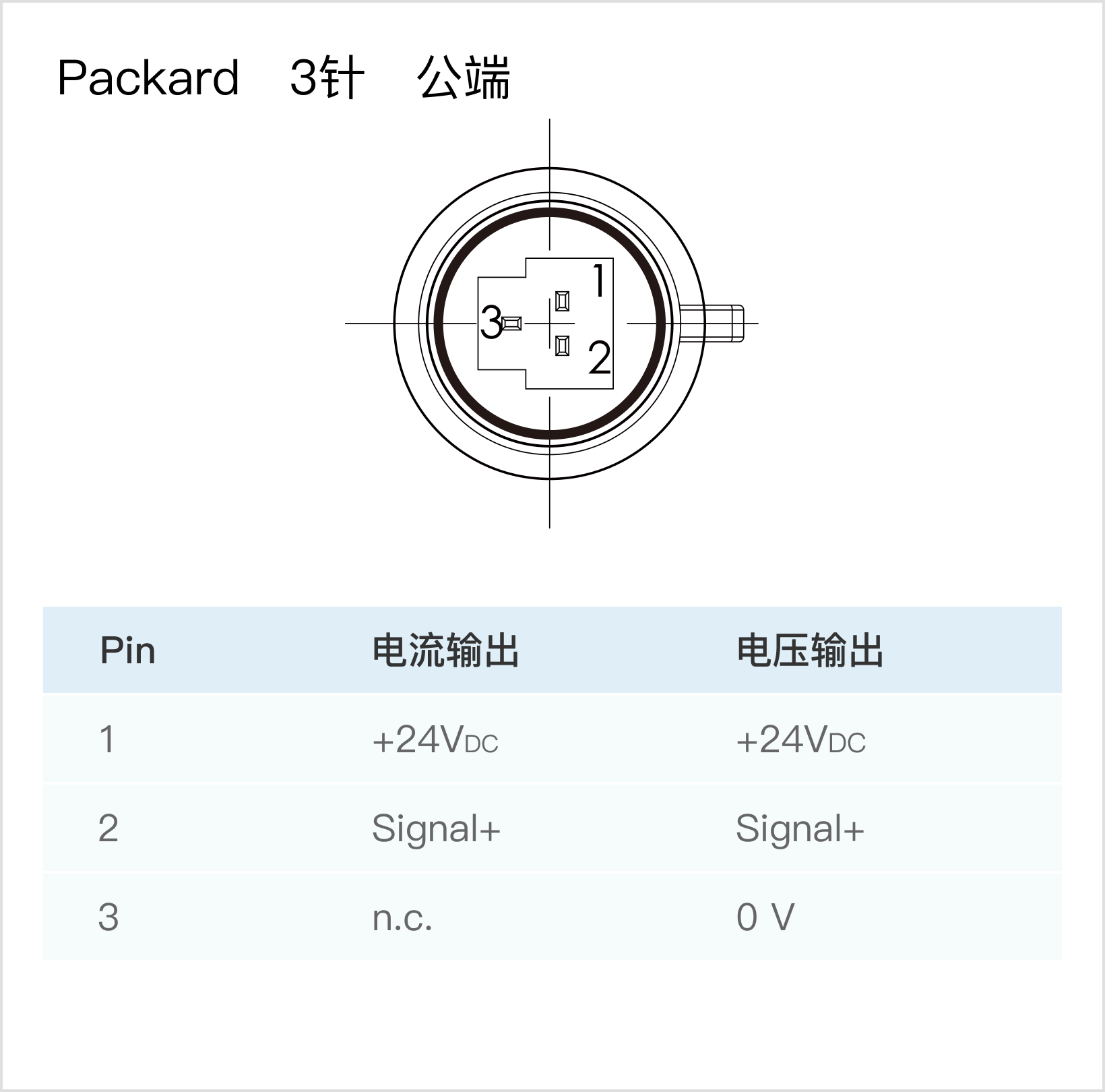

| Ip protection | IP65 (packard connector) IP67 (M12×1 connectorordirect cable) | |||||||||
