| Specifications | Technical Data | |||||||||
| Measuring ranges | 0～0.8...1.0...1.6...3...10...40...50...60...100MPa | |||||||||
| Overload pressures | 200%F.S 150%F.S | |||||||||
| Burst pressures | 500%F.S 200%F.S | |||||||||
| Operational Mode | Gauge Pressure, Absolute Pressure | |||||||||
| Measuring Media | Gases/liquids non-corrosive to stainless steel 304 and 316 | |||||||||
| Response frequency | 5kHz、10kHz | |||||||||

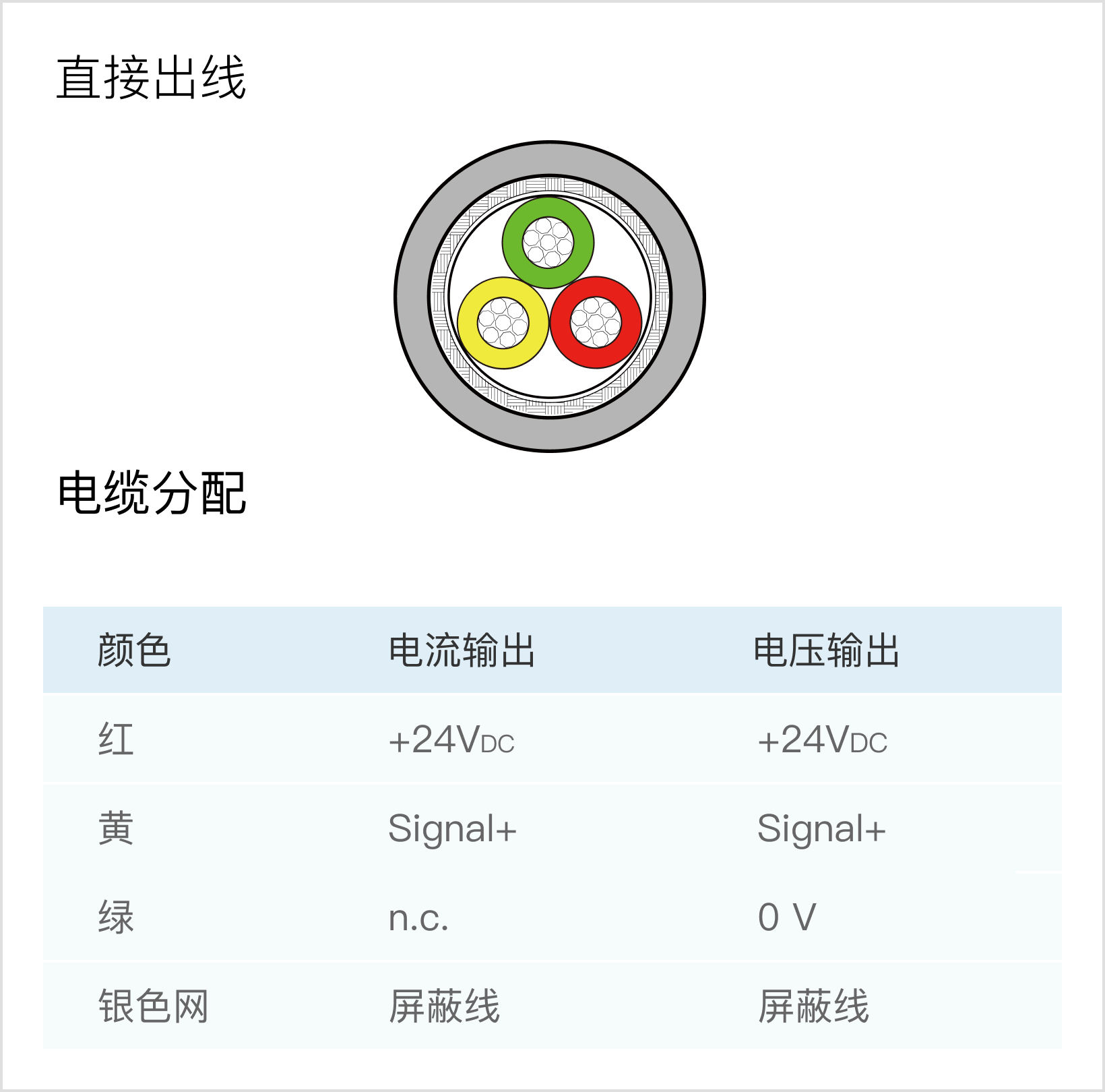

| Output signal | (0～5)V (4～20)mA | |||||||||
| Operating voltage | 24VDC (16～32VDC) | |||||||||
| Accuracy | ±0. 5%F. S(23℃±2℃)(typ. ) | |||||||||
| Long-term drift | ≤±0. 2%FS/- | |||||||||
| Ambient temperature | -40℃～85℃ | |||||||||
| Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| Electromagnetic compatibility | IEC 61000-6-2/3/4 | |||||||||

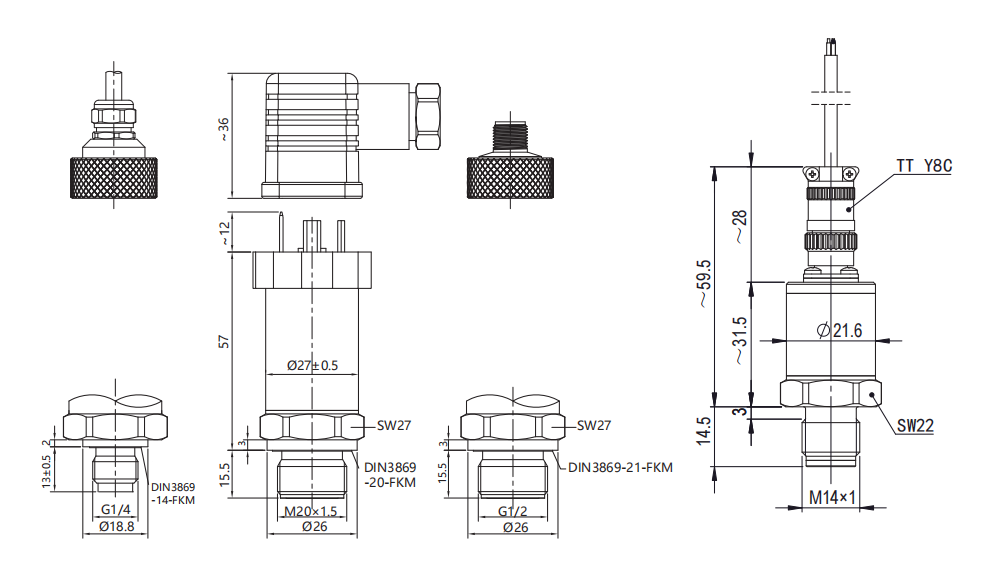

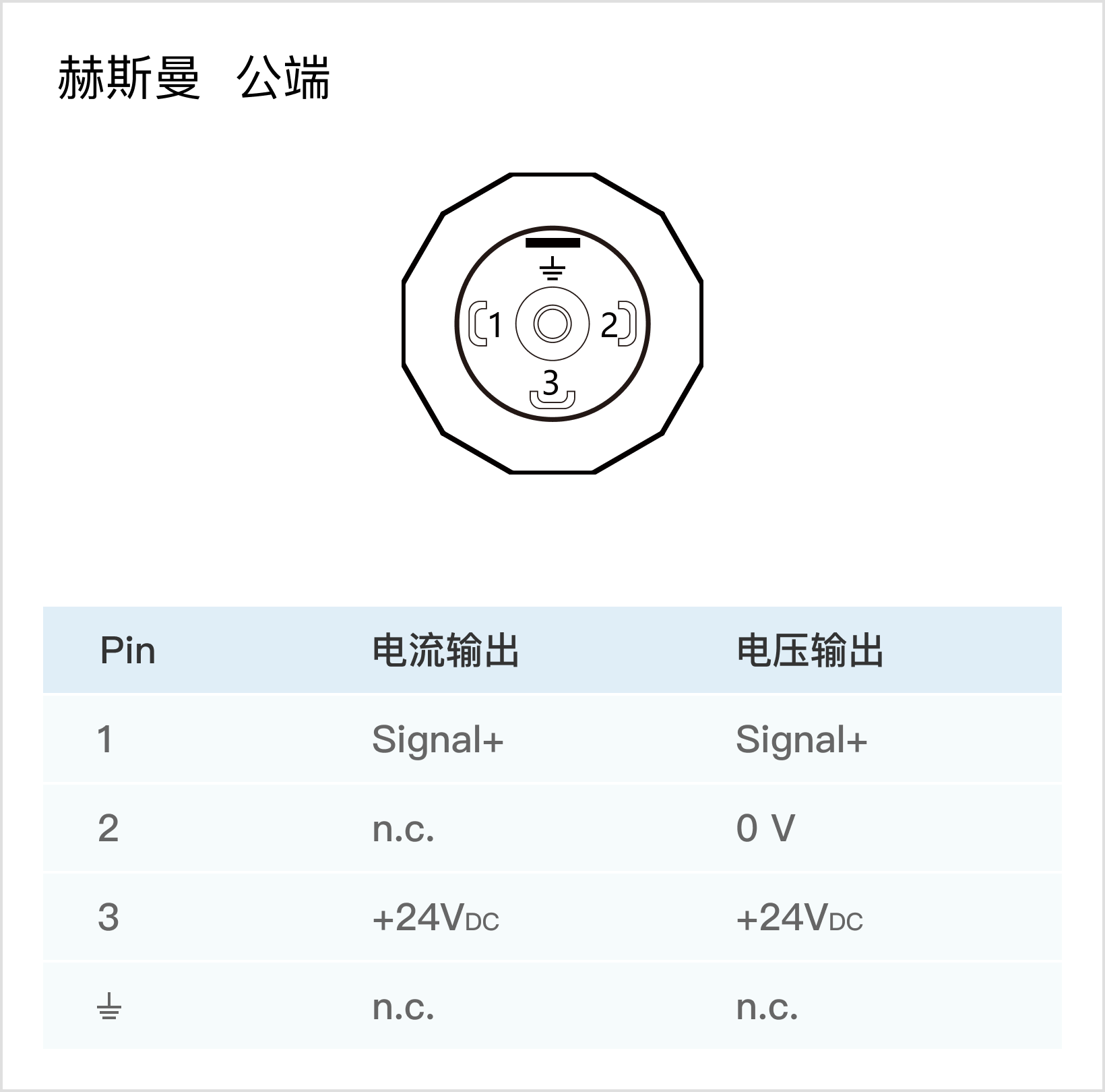

| IP protection | IP65(Hirschmannplug)/IP67(M12×1ordirect cable) | |||||||||
