| Specifications | Technical Data | |||||||||
| Measuring ranges | 0 ~ -5KPa ~ -10KPa ~ -50KPa ~ -100KPa | |||||||||
| Overload pressures | 200%F.S 150%F.S | |||||||||

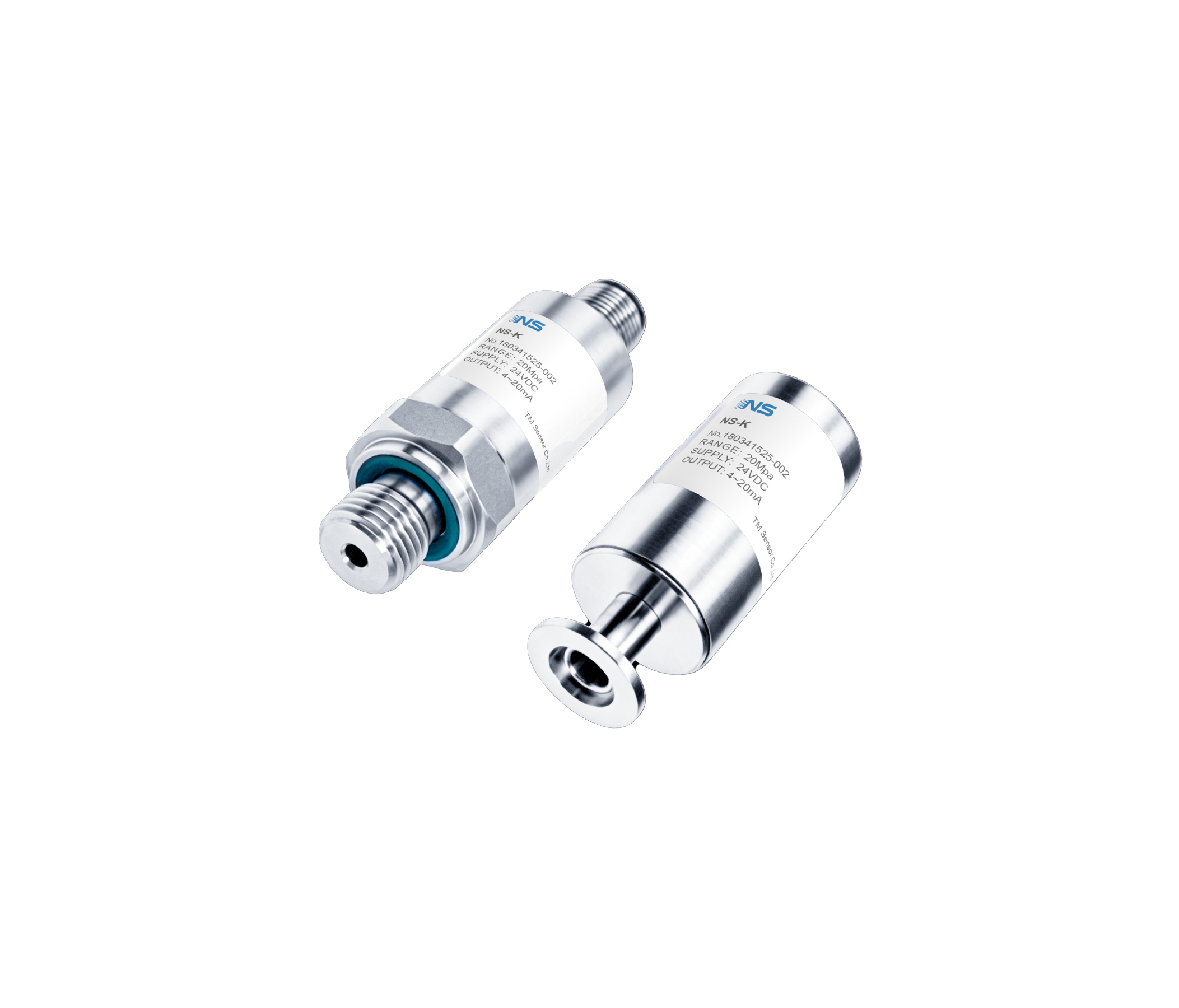

| Operational Mode | Negative Pressure | |||||||||
| Measuring Media | Gas | |||||||||
| Operating voltage | 24V DC (16～32VDC) | |||||||||
| Output signal | (0~5)V 3wire system (4～20)mA | |||||||||
| Accuracy | ±0.5%F.S(23℃±2℃) | |||||||||
| Long-term drift | ≤±0. 2%F. S/-(typ. ) | |||||||||
| Ambient temperature | -40℃～85℃ | |||||||||
| Medium temperature | -40℃～125℃ | |||||||||
| Insulation impedance | ≥200MΩ/200VDC | |||||||||
| Vibation resistance | IEC 60068-2-6(5...2000Hz，20g） | |||||||||
| Shock resistance | IEC 60068-2-27(50g，11ms） | |||||||||
| Electromagnetic compatibility | IEC 61000-6-2/3/4 | |||||||||

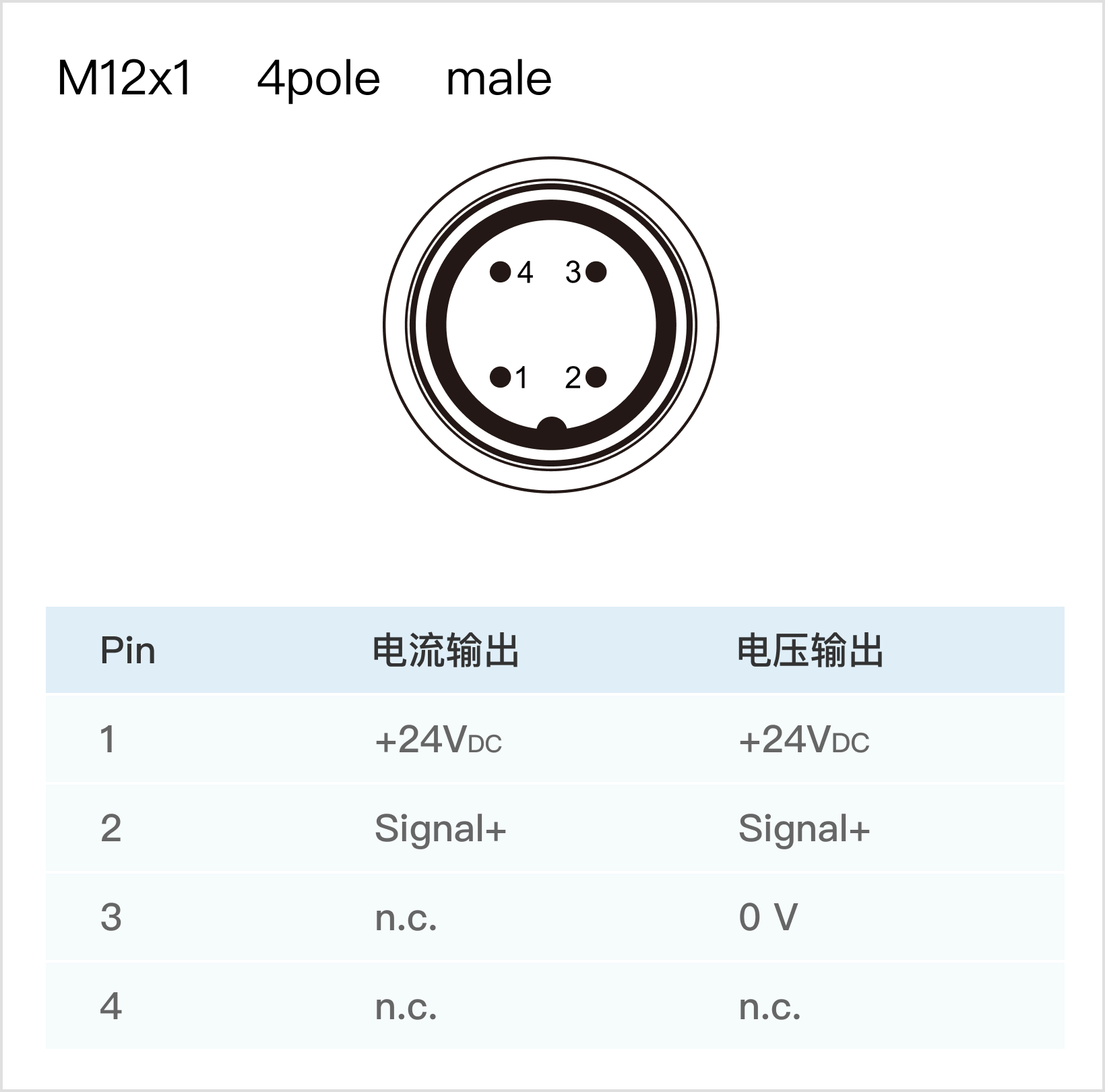

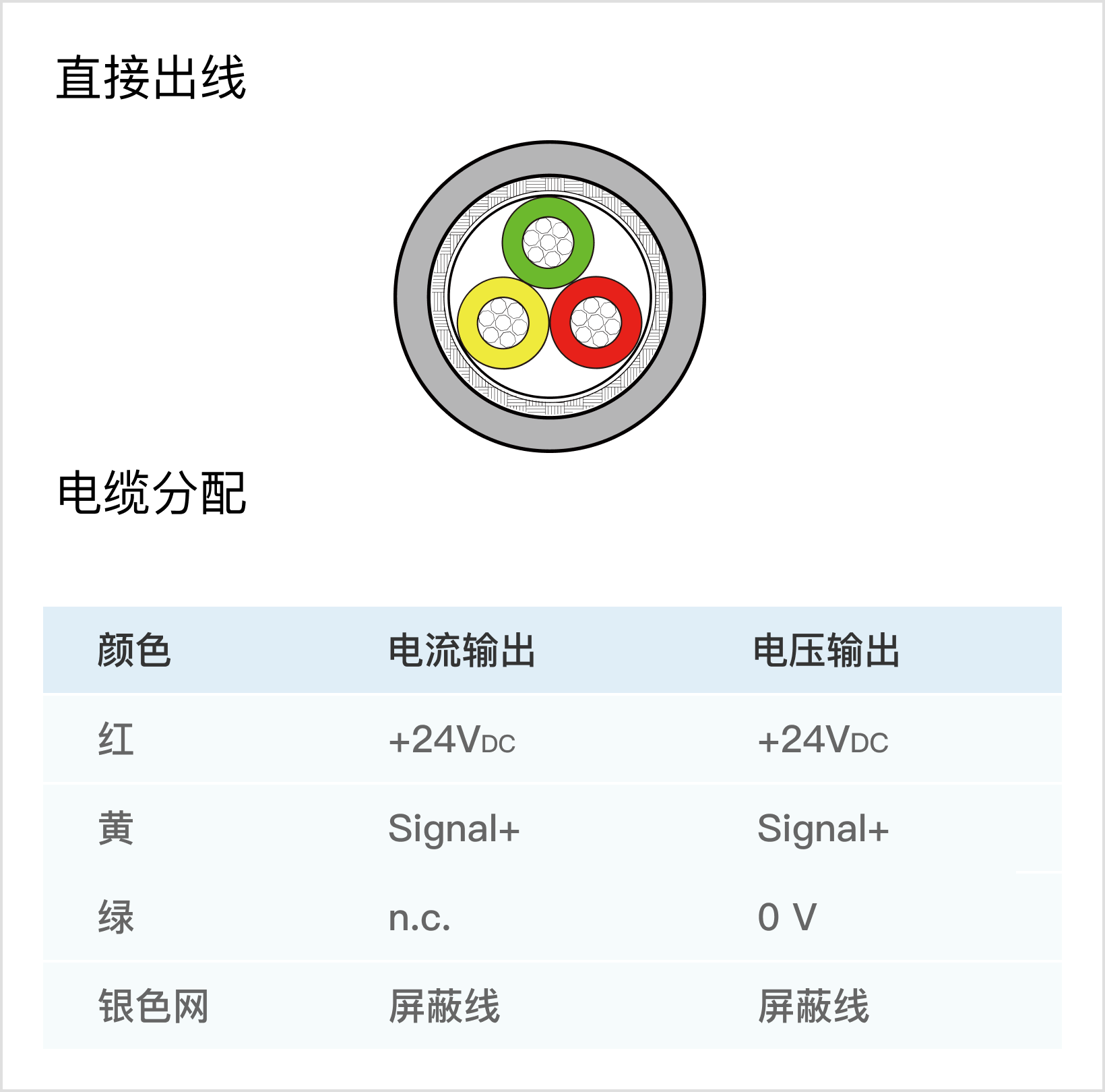

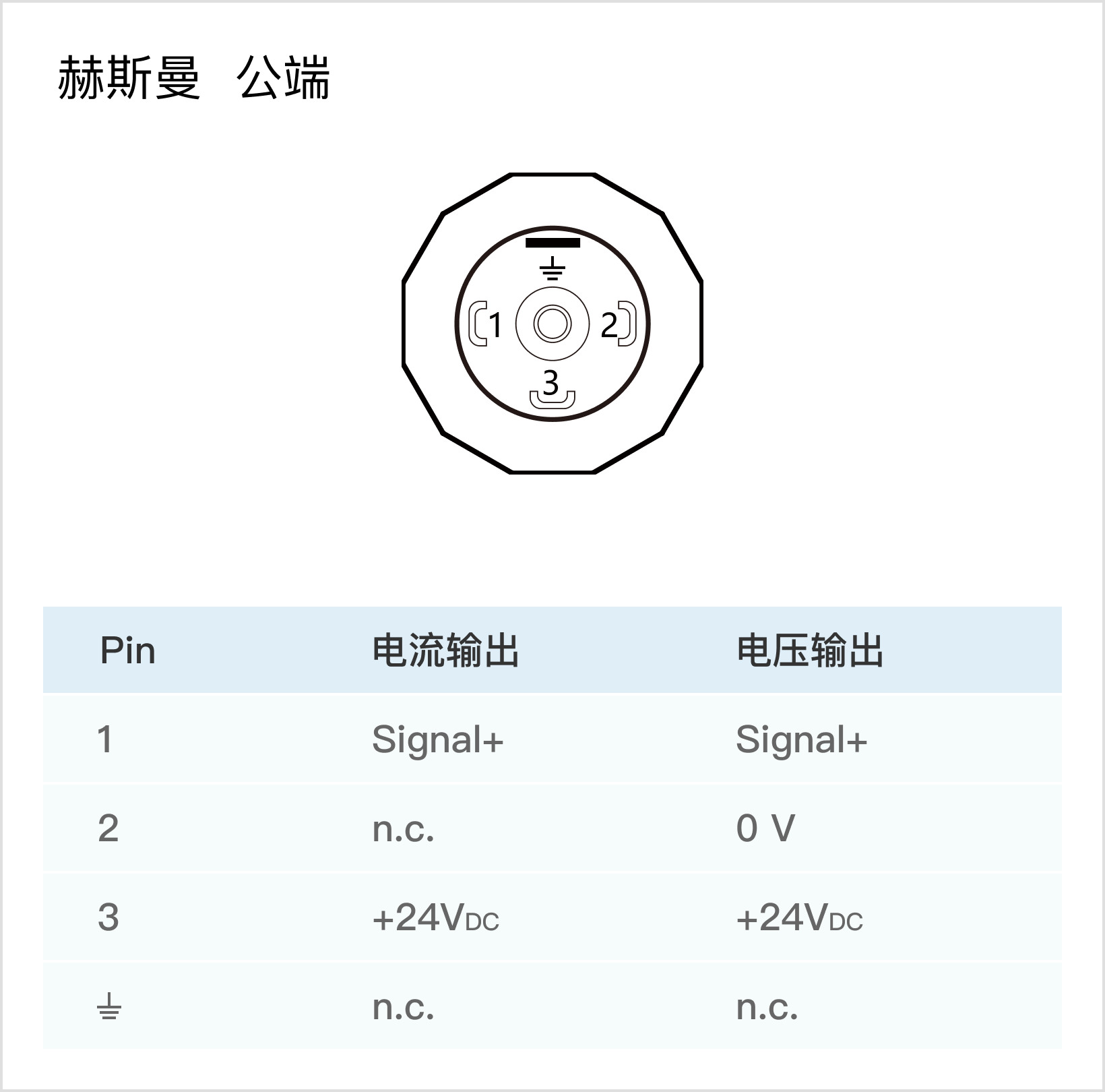

| IP protection | IP65(Hirschmannplug)/IP67(M12×1ordirect cable) | |||||||||
