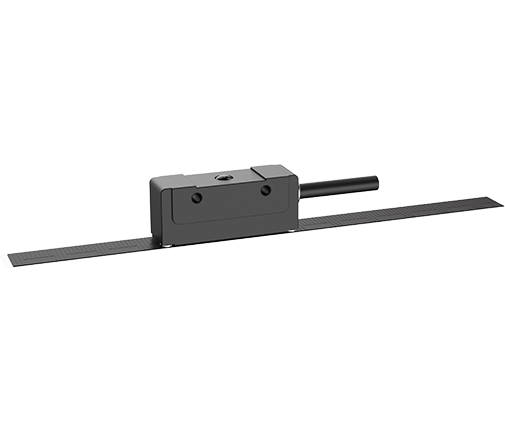

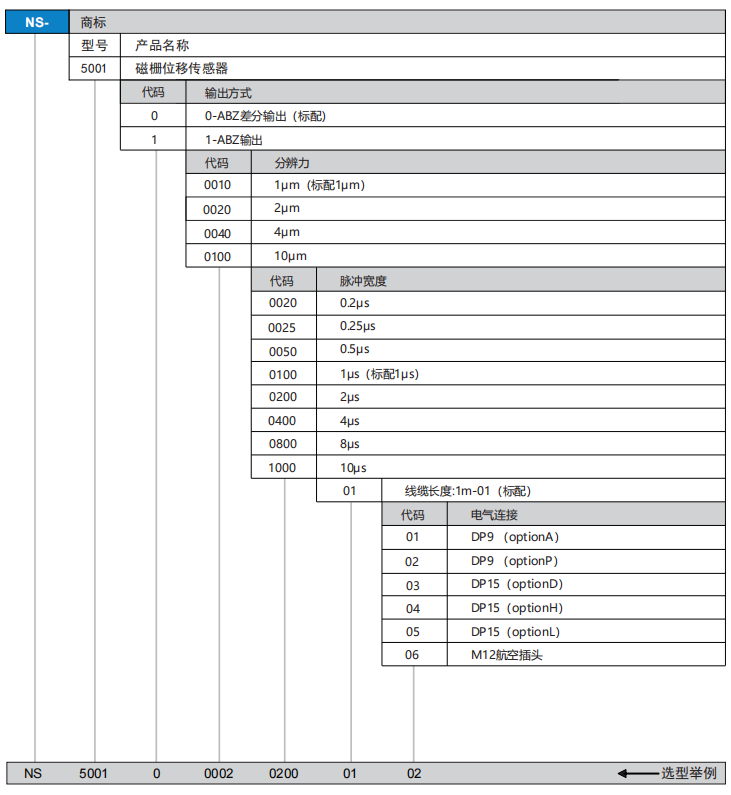

NS5001
Resolutionup to1μm
high-speed response
excellent waterproof, dustproof, and oil-resistant performance
generous installation tolerance, read head to magnetic scaleinstallationmaximum distancehighup to3mm
non-contact measurement, ensures service life
suitable for wood and stone processing machine tools, linear motors, Semiconductor, LCD, panel equipmentandhighAccuracydisplacement measurementAutomationproduction line, glass inspection table, glass edge-grinding machine, bending machine, hydraulic press, laser cutting, CNC machine tool, coordinate milling machine, coordinate boring machineetc. Equipment.

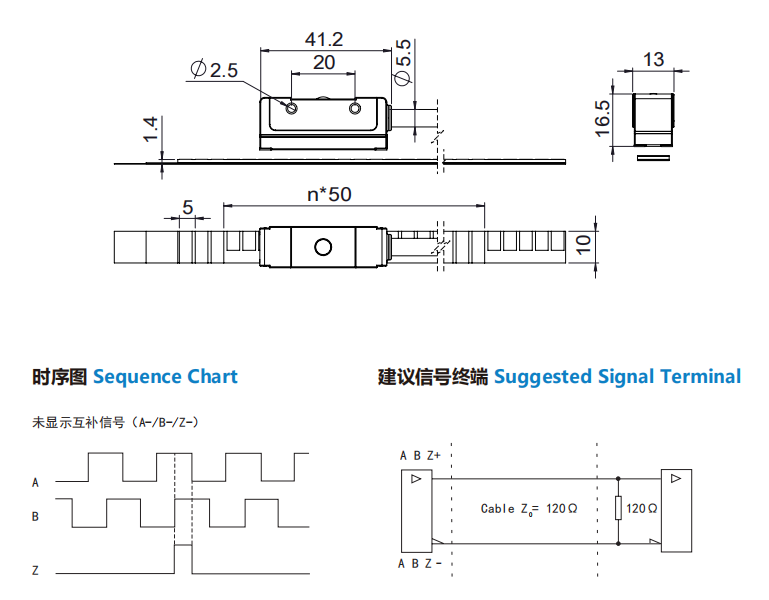

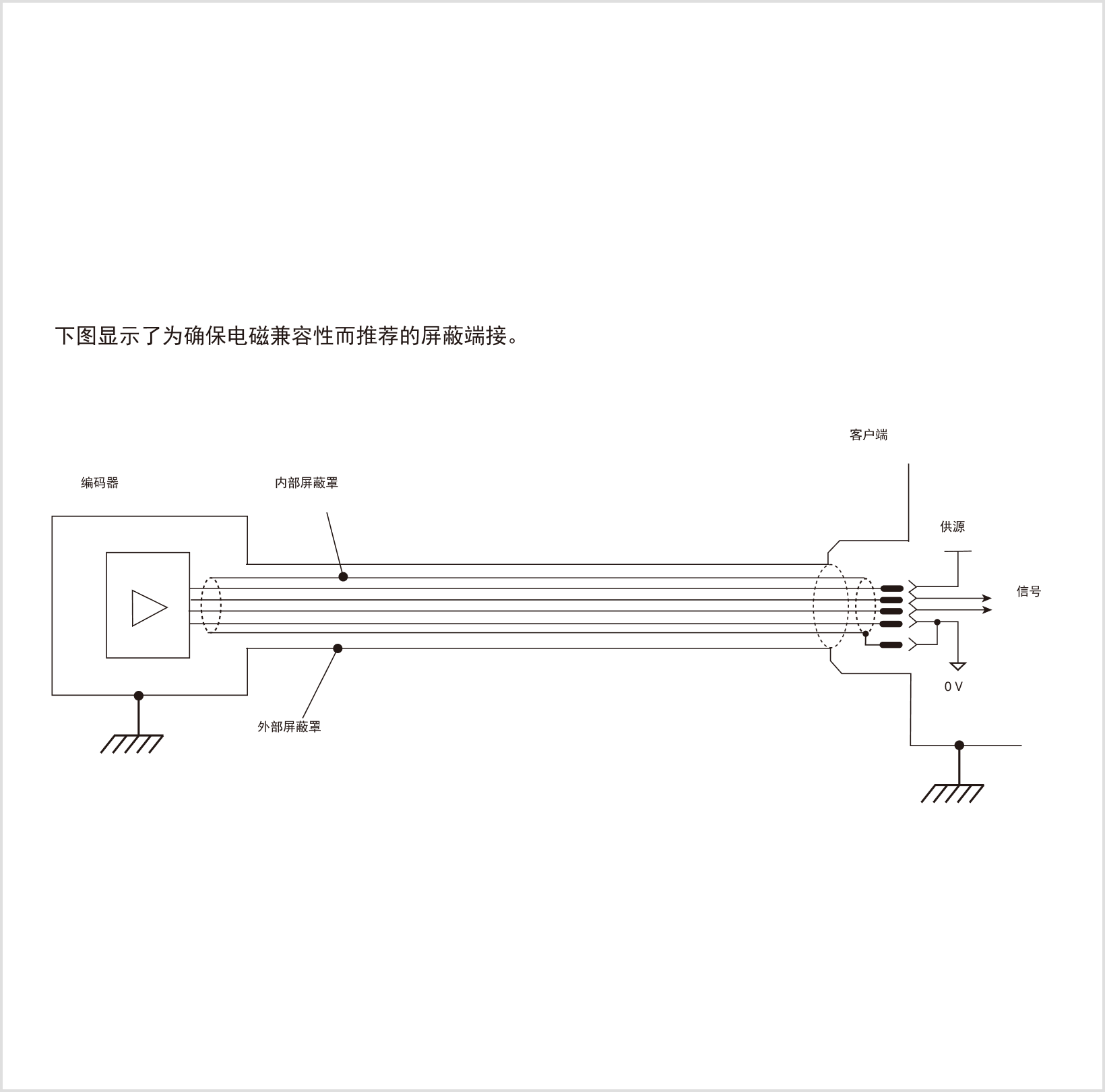

| Performance data | Technical Data | |||||||||
| Magnetic pole distance | 2mm | |||||||||
| Maximum measuring length | 50 m (over50mrequires customization) | |||||||||
| Accuracy | ±(0. 025+0. 01xL)mm(Lunitm) | |||||||||
| Hysteresis | ±1Resolution | |||||||||
| Repeatability accuracy | ±1Resolution | |||||||||
| Reference point | 50mm(standard), customizable | |||||||||
| Maximum velocity | 25m/s | |||||||||
| Environmental data | Technical Data | |||||||||
| Operating Temperature | –10 °C to +80 °C | |||||||||
| Storage temperature | –40°C to +85°C | |||||||||
| IP protection | IP67 | |||||||||
| Electromagnetic interference | IEC 61000-6-2 | |||||||||
| EWI suppression | IEC 61000-6-4 | |||||||||
| Vibrate(55 Hz to 2000 Hz) | 300m/s2(IEC 60068-2-6) | |||||||||
| Shock(6 ms) | 300m/s2(IEC 60068-2-27) | |||||||||
| External magnetic field | 1 mT | |||||||||
| Electrical characteristics | Technical Data | |||||||||
| Input source | 4.7 V to 7 V | |||||||||
| Input current | <50ma> | |||||||||
| Cable drop | ~17 mV/m | |||||||||
| Output signal | 3wireA, B, Zand3wireA–, B–, Z– | |||||||||
| Reference signal | Z+/Z- | |||||||||
| Signal level | complies withRS422standard UH≥2.5 V at –IH= 20 mA UL≤0.5 V at IL= 20 mA | |||||||||
| Load capacity | Z0≥100 Ω IL≤20 mA load capacitance≤1000 pF Outputprotectionelectricalchannel | |||||||||
| Alarm output state | highimpedance(standard), pull-uporpull-down(Optional) | |||||||||
| Signal edge pressure trigger time | t+, t– < 30 ns | |||||||||
| Maximum cable length | 100 m | |||||||||
