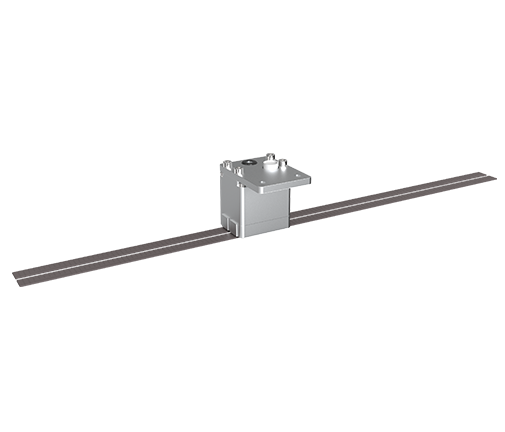

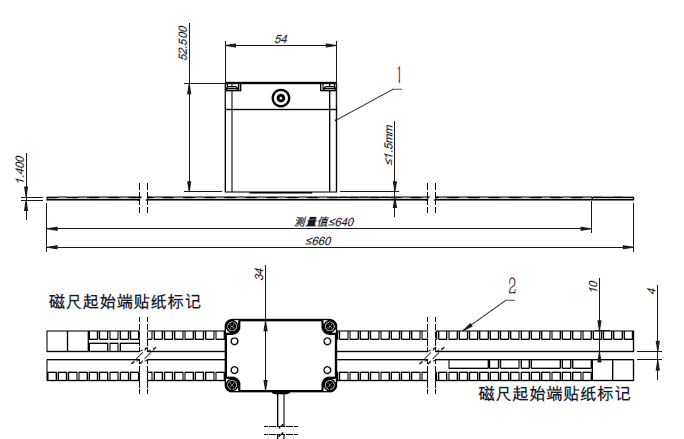

NS-CJ12
Resolutionup to5μm
high-speed response
excellent waterproof, dustproof, and oil-resistant performance
generous installation tolerance, read head to magnetic scaleinstallationmaximum distancehighup to2mm
non-contact measurement, ensures service life
| Performance data | Technical Data | |||||||||
| Magnetic pole distance | 5mm | |||||||||
| Maximum measuring length | 600mm | |||||||||
| Accuracy | 0.1mm | |||||||||
| Hysteresis | 0.05mm | |||||||||
| Repeatability accuracy | 0.05mm | |||||||||
| Maximum velocity | 25m/s | |||||||||
| Environmental data | Technical Data | |||||||||
| Operating Temperature | –40 °C to +80 °C | |||||||||
| Storage temperature | –40°C to +85°C | |||||||||
| IP protection | IP54 GB/T 4208-2017 | |||||||||
| EWI suppression | GB/T24338.5-2018 | |||||||||
| Vibrate(10HZ...1000HZ) | 147m/s2(TB/T2846-2015) | |||||||||
| External magnetic field | 1 mT | |||||||||
| Electrical characteristics | Technical Data | |||||||||
| Input source | 5 V to 12V | |||||||||
| Input current | <150ma<> | |||||||||
| Cable drop | ~17 mV/m | |||||||||
| Output signal | UARTserial port, 9600; no parity; 1, 9(canpassedhost-computer setting) | |||||||||
| Reference signal | 4section3. 5mmplug(tip+5V, No. 2sectionTX, No. 3sectionRX, No. 4sectionGND) | |||||||||
