| Specifications | Technical Data | |||||||||
| Measuring ranges | Channel 1: 0~0. 8. . . 1. 0. . . 1. 6. . . 3. . . 10. . . 40. . . 50. . . 60. . . 100MPa Channel 2: 0~0. 8. . . 1. 0. . . 1. 6. . . 3. . . 10. . . 40. . . 50. . . 60. . . 100MPa | |||||||||
| Overload pressures | 200%F.S 150%F.S | |||||||||
| Burst pressures | 500%F.S 200%F.S | |||||||||
| Operational Mode | Gauge Pressure, Absolute Pressure, Sealed Gauge Pressure | |||||||||
| Measuring Media | Gases/liquids non-corrosive to stainless steel 304 and 316L | |||||||||
| Output signal | 4~20mA | |||||||||
| Operating voltage | 24VDC(16~32VDc) | |||||||||
| Accuracy | Channel 2Accuracyconsistencyperformance±0. 5%F. S(23℃±2℃) | |||||||||
| Long-term drift | ≤±0. 2%F. S/- (typ. ) | |||||||||
| Operating temperature range | -40~+120℃ | |||||||||
| Insulation resistance | ≥200MΩ/200VDC | |||||||||
| Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| EMC proof | IEC 61000-6-2/3/4 | |||||||||

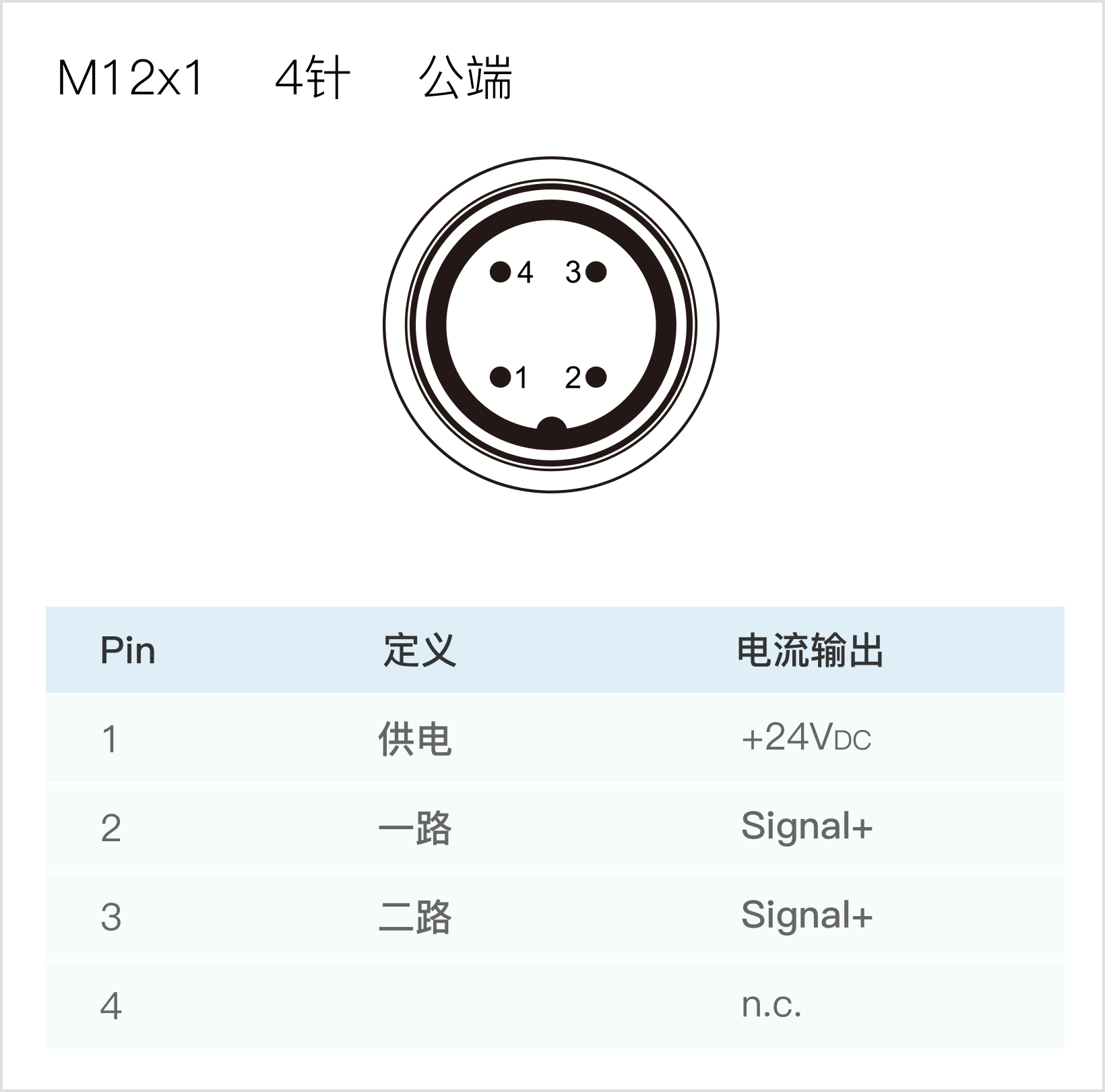

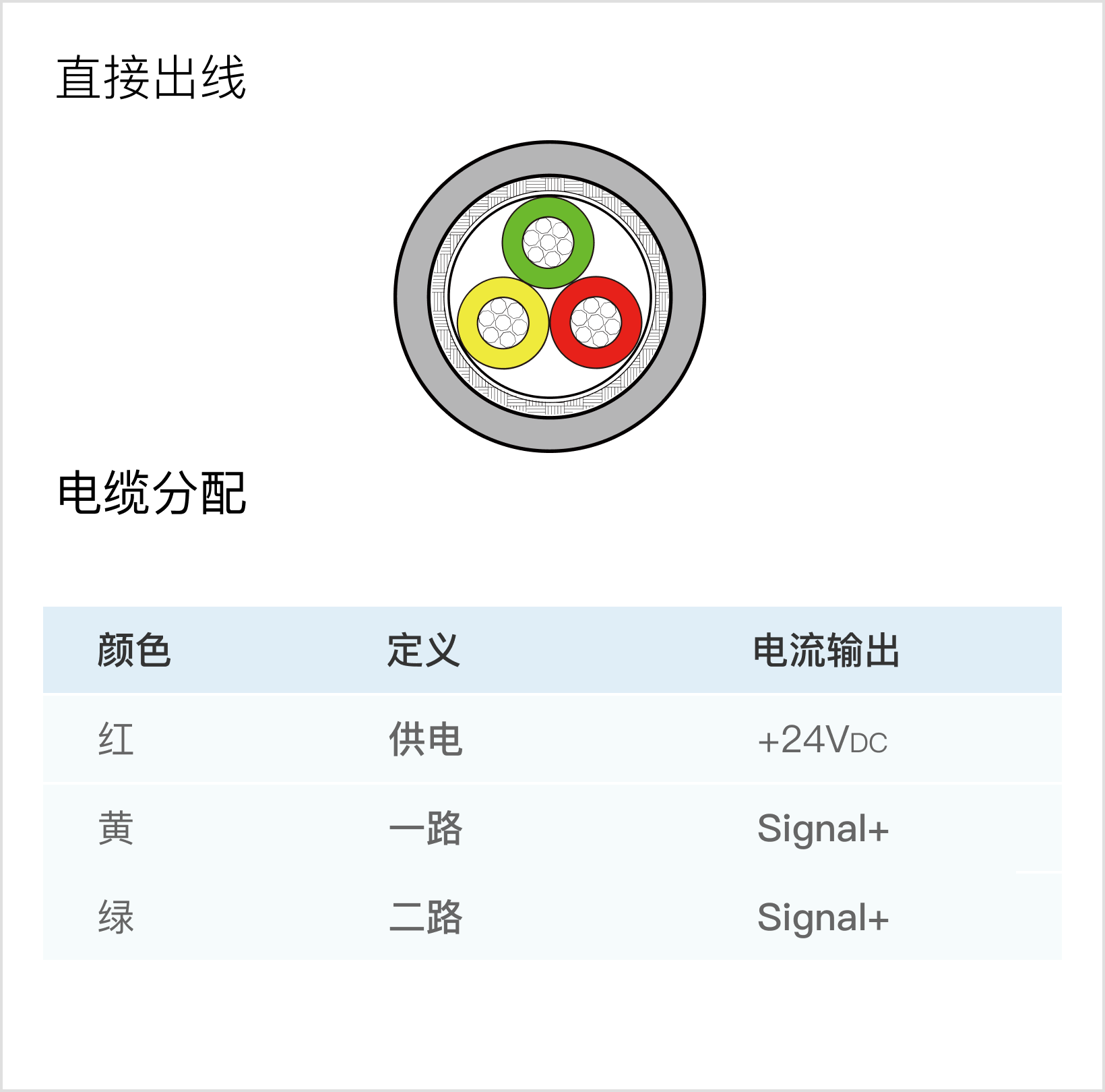

| Ip protection | IP65(Hirschmannplug)/IP67(M12×1ordirect cable) | |||||||||
