Applications of temperature sensor
·Water chilling unit
·Automatic testing system
·Hydraulic and machinery system
Introduction of temperature sensor

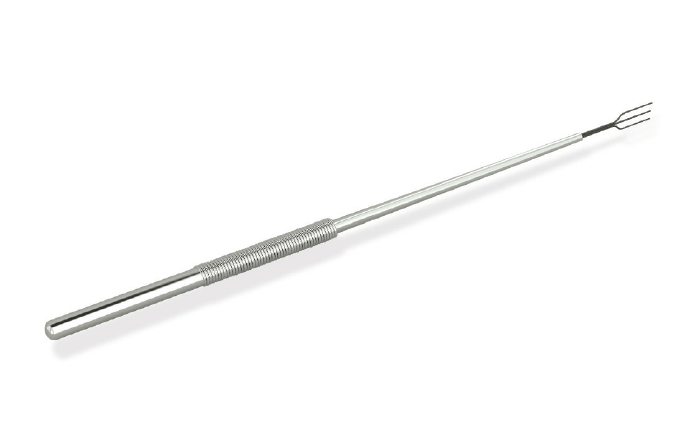

Industrial thermal resistance (PT100, PT1000)is taken as a temperature sensor which is normally used with display indicator, recording instrument and electronic regulator. It can directly measure the temperature of liquid, steam, gas medium and solid surface in production process from -200 ℃ to 500 ℃. And the explosion-proof construction is suitable for explosion-proof occasions.
Special features of temperature sensor
·Wetted parts apply stainless steel ensure excellent corrosion resitance
·Dimension and technical specification can be customized by customer
Applications of temperature sensor
·Water chilling unit
·Automatic testing system
·Hydraulic and machinery system
Introduction of temperature sensor
Industrial thermal resistance (PT100, PT1000)is taken as a temperature sensor which is normally used with display indicator, recording instrument and electronic regulator. It can directly measure the temperature of liquid, steam, gas medium and solid surface in production process from -200 ℃ to 500 ℃. And the explosion-proof construction is suitable for explosion-proof occasions.
Special features of temperature sensor
·Wetted parts apply stainless steel ensure excellent corrosion resitance
·Dimension and technical specification can be customized by customer
Temperature Sensor electric specification
Power supply: 24VDC(16~36VDC)
Output signal: 4~20mA resistance etc
Response time: ≤300m/Sec
Temperature Sensor construction
Sensing Probe: stainless steel
Specifications | Technical data |
Measuring range | -200~500℃ |
Probe length | 10~100mm(optional) |
Output signal | 4~20mA |
Accuracy | 0.25%F.S. |
Response time | ≤300m/Sec |
Gain adjustment | ≤10% of R.O. |
Zero point adjustment | ≤5% of R.O. |
Ambient temperature range | -10~+60 ℃ |
Storage temperature range | -10~+70 ℃ |
Fluid temperature range | -200~+500 ℃ |
Relative humidity | 20~95% %RH |
Temperature coefficient | ≤ 100 PPM/℃ |
Compensation | -25±10℃, Deviation≤0.5℃ |
Protection class to DIN436500 | IP66 |
Supply voltage | 24VDC(16~36VDC) |
Material | Probe: Stainless steel or copper |
Temperature Sensor electric specification
Power supply: 24VDC(16~36VDC)
Output signal: 4~20mA resistance etc
Response time: ≤300m/Sec
Temperature Sensor construction
Sensing Probe: stainless steel
Specifications | Technical data |
Measuring range | -200~500℃ |
Probe length | 10~100mm(optional) |
Output signal | 4~20mA |
Accuracy | 0.25%F.S. |
Response time | ≤300m/Sec |
Gain adjustment | ≤10% of R.O. |
Zero point adjustment | ≤5% of R.O. |
Ambient temperature range | -10~+60 ℃ |
Storage temperature range | -10~+70 ℃ |
Fluid temperature range | -200~+500 ℃ |
Relative humidity | 20~95% %RH |
Temperature coefficient | ≤ 100 PPM/℃ |
Compensation | -25±10℃, Deviation≤0.5℃ |
Protection class to DIN436500 | IP66 |
Supply voltage | 24VDC(16~36VDC) |
Material | Probe: Stainless steel or copper |
Temperature Sensor dimensions:
Temperature Sensor dimensions:
Temperature Sensor order guide:
Temperature Sensor order guide:
