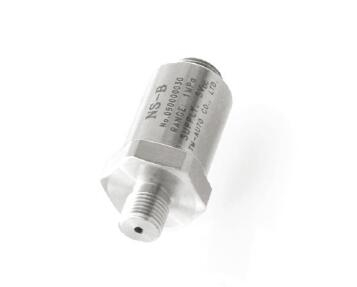

4 Wires MV Ratiometric Output Flush Diaphragm Pressure Transmitter

Pressure range: from -100kPa~100 Mpa
Output: mV Ratiometric Output
Filled Fluid: silicone oil
Wetted parts: SUS304 ,SUS316
Stainless steel isolation diaphragm
Attached RoHs, CE certification
Availability:
Quantity:
  • B
  • NS
  • NS-B-100MPa


Applications of Pressure Transmitter

·Plastic and rubber injection presses

·Presses and metal working machinery

·Automatic testing system

·Test Equipment

·Pneumatic system


Introduction of Pressure Transducer

B series pressure transducer made by TM’s own pressure sensor core as sensor sensitive element. Pressure transducer can be transferred liquid or gas pressure into ratiometric mV signal. Pressure transducer is produced by build-in a piezoresistive pressure sensor into stainless steel housing with pressure ports. the product is an electronic device that convert a physical variable (pressure) into an electrical signal(current or voltage) that can be read or acquired by various control, measurement and adjustment devices. The sensor applies laser trimming hybrid compensates transducer zero, span and so on, is widely used for pressure calibration device, auto mobile, plastic and rubber injection presses, presses and metal working machinery , industrial measurement, and HVAC.


Special features of Pressure Transducer

·Wetted parts apply stainless steel ensure excellent corrosion resitance

·Output: mV

·Build-in silicon oil filling sensor core

·Wetted parts: SUS304, SUS316





Pressure Transducer electric specification

Power supply: 5VDC or 10VDC

Electric connection: 4 pin flying lead or M12×1- 4 pole male

Output signal: mV

Response (10%~90%):<1ms

Insulation resistor: 100MΩ,500VDC

Overpressure: 2 times FS


Pressure Transducer construction

Diaphragm: stainless steel 316L

Housing: stainless steel 304



SpecificationsTechnical data

Measuring range

-100kPa  1.0  1.6   3.0  10   20   40   60   80   100 MPa
Overload pressure 200%F.S.                                   150%F.S.
Burst pressure 300%F.S.                                   200%F.S.
Operational modeGauge, Absolute
Measuring mediacompatible with stainless steel
Output signalmV
Operation voltage5VDC or 10VDC
Accuracy±0.1%F.S(Min.)   ±0.5%F.S(Max.)
Long-term drift(type)<±0.2(type)                                           %F.S./Year
Compenstated temperature range (type)-20~+80                                                                    ℃
Operating temperature range (type)-30~+80                                                                    ℃
Storage temperature range (type)-40~+120                                                                  ℃
Fluid temperature range (type)-30~+120                                                                  ℃
Insulation resistance≥100MΩ(500VDC)
Vibration resistance IEC 60068-2-6(5...2000Hz, 20g)
Shock resistanceIEC 60068-2-27(50g, 11ms)
EMC proofIEC 61000-6-2/3/4
MaterialStainless steel 304
Mechanical connectionG1/4A, M12×1 etc.
IP protectionIP 65


Pressure Transducer dimensions:

NS-B-dimension

Pressure Transducer order guide:

NS-B ORDERING GUIDE
